ER Locknuts

Select Filters
Filters
Filters
Filters
View filters in
Metric
Inch
No filters matching ""
View Products in
Metric
Inch

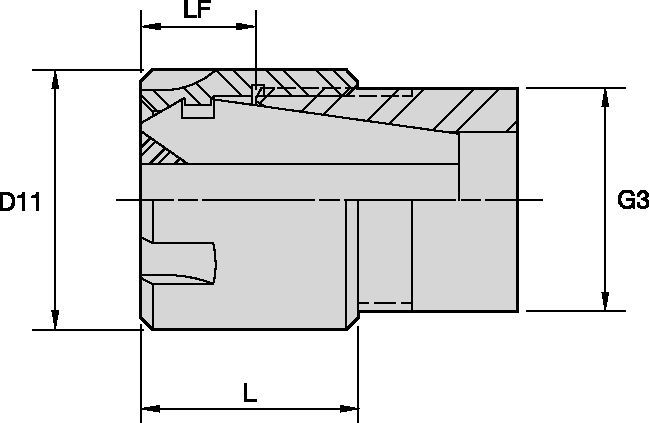

ORIGINAL PRODUCT

ER Locknut Slim ER Locknut Slim

ER Standard Slim Locknuts
(1 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number Collet Series Lock Nut Diameter [D11] Lock Nut Diameter [D11] [L] Overall Length [L] Overall Length [LF] Functional Length [LF] Functional Length [G3] Connection Thread Size Internal Wrench Counter Bore Collet Torque Nm Straight Collet Torque Nm Counter Bore Collet Torque InLb Straight Collet Torque In.Lbs.
1799219 LER20M LER20M ER20 28.0000 1.100 19.0000 .7500 11.5000 .4530 M24 X 1 ER20WEM 28.000 28 248.0000 248
    List price:
    ₹2,880.00 /each
    Your price:
    List price:
    Discount: %
    Your price:
    Replacement This item is no longer available
    Replacement Product Please contact customer service for assistance

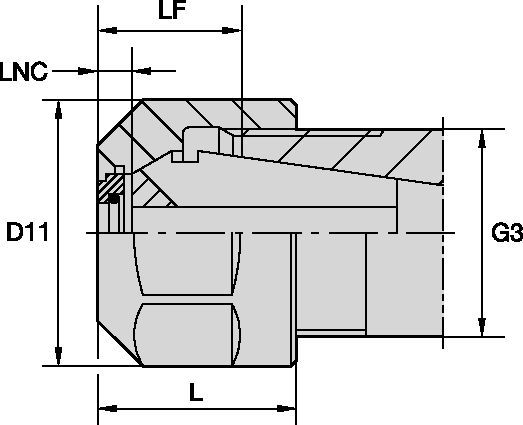

    ORIGINAL PRODUCT

    ER Locknut Slim Coolant ER Locknut Slim Coolant

    ER Slim Coolant Locknuts • Hex Locknuts
    (2 Products)
    View Products
    SAP Material Number ISO Catalog Number ANSI Catalog Number Collet Series Lock Nut Diameter [D11] Lock Nut Diameter [D11] [L] Overall Length [L] Overall Length Len-Nut Face to Collet [LNC] Len-Nut Face to Collet [LNC] [LF] Functional Length [LF] Functional Length [G3] Connection Thread Size Internal Wrench Counter Bore Collet Torque Nm Counter Bore Collet Torque InLb
    2255307 LABER16M LABER16M ER16 22.0000 .8700 22.0000 .8700 4.5000 .1770 11.5000 .4530 M19 X 1 ER16WEM 24.000 212.0000
      List price:
      ₹4,450.00 /each
      Your price:
      2398953 LABER20M LABER20M ER20 28.0000 1.100 24.0000 .9400 5.0000 .1970 13.0000 .5120 M24 X 1 ER20WEM 28.000 248.0000
        List price:
        ₹4,831.00 /each
        Your price:
        List price:
        Discount: %
        Your price:
        Replacement This item is no longer available
        Replacement Product Please contact customer service for assistance

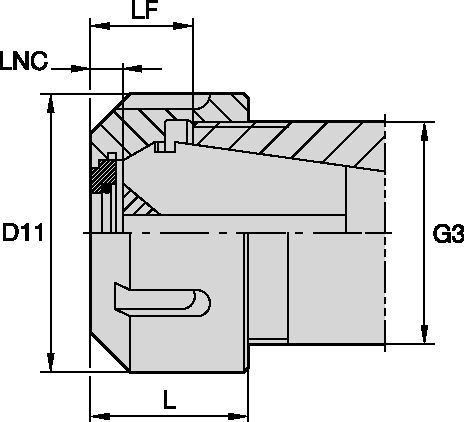

        ORIGINAL PRODUCT

        ER Locknut Hex Coolant ER Locknut Hex Coolant

        ER Coolant Hex Locknuts • Standard Round Locknuts
        (1 Products)
        View Products
        SAP Material Number ISO Catalog Number ANSI Catalog Number Collet Series Lock Nut Diameter [D11] Lock Nut Diameter [D11] [L] Overall Length [L] Overall Length Len-Nut Face to Collet [LNC] Len-Nut Face to Collet [LNC] [LF] Functional Length [LF] Functional Length [G3] Connection Thread Size Internal Wrench OD Drive Size Counter Bore Collet Torque Nm Straight Collet Torque Nm Counter Bore Collet Torque FtLb Straight Collet Torque Ft.Lbs.
        1854738 LNHABER16M LNHABER16M ER16 28.0000 1.102 22.5000 .8858 5.0000 .1969 15.5000 .6102 M22 X 1.5 OEW25M 25 mm 40.000 56 30.0000 42
          List price:
          ₹3,561.00 /each
          Your price:
          List price:
          Discount: %
          Your price:
          Replacement This item is no longer available
          Replacement Product Please contact customer service for assistance

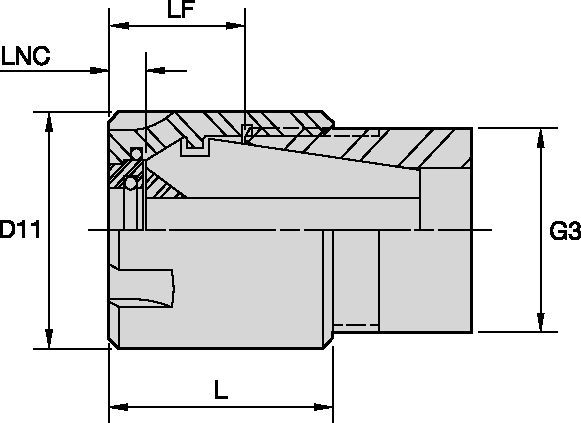

          ORIGINAL PRODUCT

          ER Locknuts Round Coolant ER Locknuts Round Coolant

          ER Coolant Round Locknuts
          (2 Products)
          View Products
          SAP Material Number ISO Catalog Number ANSI Catalog Number Collet Series Lock Nut Diameter [D11] Lock Nut Diameter [D11] [L] Overall Length [L] Overall Length Len-Nut Face to Collet [LNC] Len-Nut Face to Collet [LNC] [LF] Functional Length [LF] Functional Length [G3] Connection Thread Size Internal Wrench Counter Bore Collet Torque Nm Counter Bore Collet Torque FtLb
          1127154 LNABER25M LNABER25M ER25 42.0000 1.653 25.0000 .9843 5.0000 .1969 17.0000 .6693 M32 X 1.5 ER25WM 104.000 77.0000
            List price:
            ₹4,037.00 /each
            Your price:
            1125692 LNABER40M LNABER40M ER40 63.0000 2.480 30.5000 1.200 5.0000 .1969 20.0000 .7874 M50 X 1.5 ER40WM 176.000 130.0000
              List price:
              ₹5,681.00 /each
              Your price:
              List price:
              Discount: %
              Your price:
              Replacement This item is no longer available
              Replacement Product Please contact customer service for assistance
