| SAP Material Number | 6588934 |
| ISO Catalog Number | TACU001ER32DR61301835 |
| ANSI Catalog Number | TACU001ER32DR61301835 |

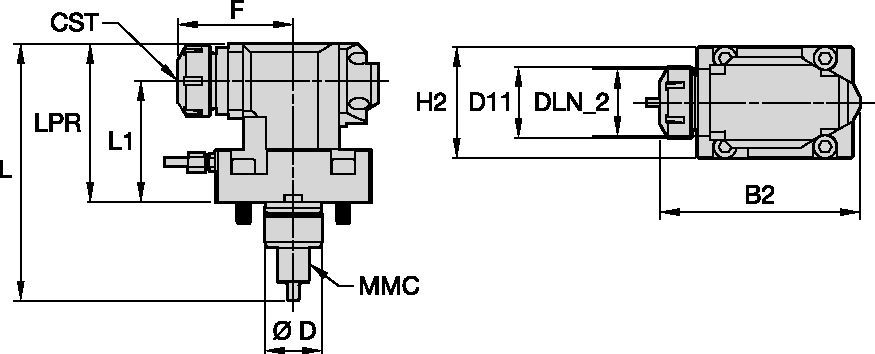

| [CST] Catalog Collet Series | ER32 |
| Machine Mount Code | 001 |
| [B2] Overall Width | 138.0000 mm |
| [B2] Overall Width | 5.433 in |
| [D] Adapter / Shank / Bore Diameter | 40.0 mm |
| [D] Adapter / Shank / Bore Diameter | 1.574 in |
| [D11] Lock Nut Diameter | 50.0000 mm |
| [D11] Lock Nut Diameter | 1.968 in |
| Lock Nut Diameter [DLN_2] | 47.0000 mm |
| HLD_LOCK_NUT_DIA_2_I | 1.850 in |
| [F] F Dimension | 78.5000 mm |
| [F] F Dimension | 3.090 in |
| [H2] Overall Height | 78.0000 mm |
| [H2] Overall Height | 3.070 in |
| [L] Overall Length | 180.0000 mm |
| [L] Overall Length | 7.086 in |
| [L1] Gage Length | 85.0000 mm |
| [L1] Gage Length | 3.346 in |
| [LPR] Protruding Length | 111.0000 mm |
| [LPR] Protruding Length | 4.370 in |
| Torque Machine Spindle Nm | 32.000 |
| Coolant Pressure Bar | 70.0 |
| Coolant Pressure PSI | 1000.0 |
| Coolant Delivery | I/E |
| [CS1] Coolant Supply Exit Size | G 1/8 |
| Max RPM | 6000 |
| Weight Kilograms | 6.19 |
| Torque Newton Meters | 136.000 |
| Torque Foot Pounds | 100.0000 |
