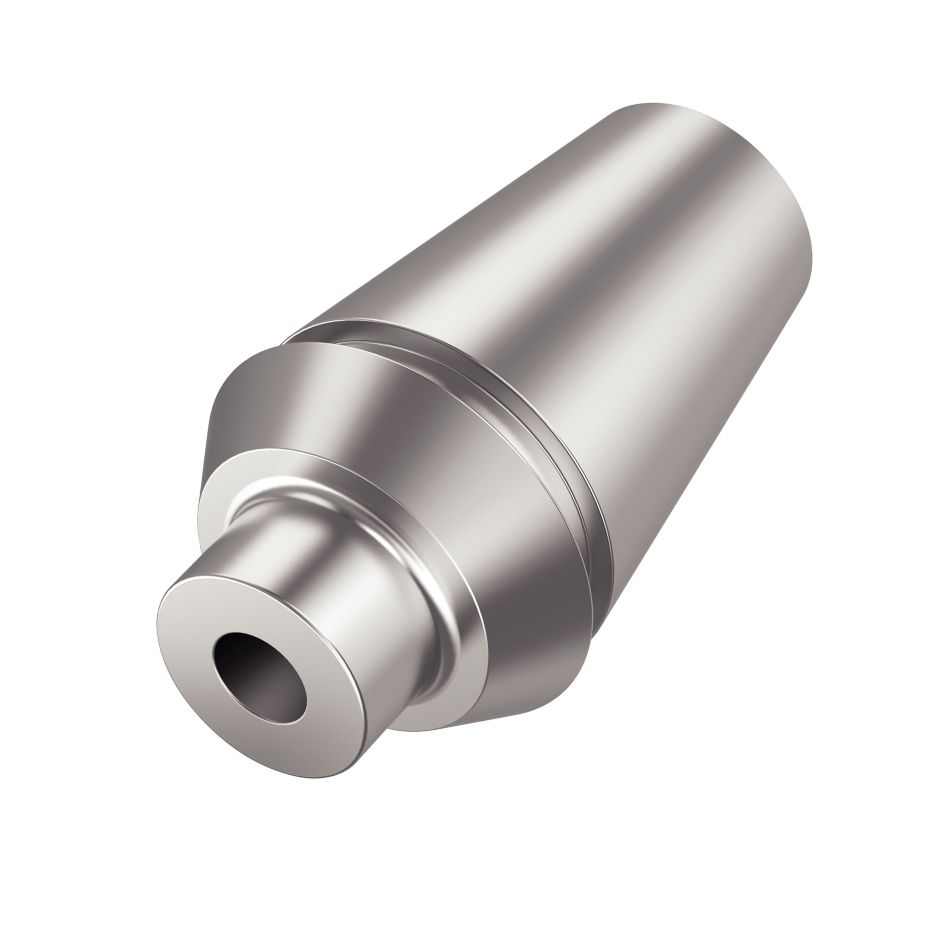

DUO-LOCK™ • Pinças inteiriças ER

Fresamento de topo modular

Métrico
Polegada
SAP Material Number 6612285
ISO Catalog Number 20ERDL12
ANSI Catalog Number 20ERDL12
Collet Series ER20
[D2] Body Diameter Maximum 21 mm
[D2] Body Diameter Maximum .8267 in
[L] Overall Length 37.98 mm
[L] Overall Length 1.495 in
[DCLC] Diameter Collet Large Clamp 11.5 mm
[DCLC] Diameter Collet Large Clamp .4528 in
[LCLC] Length Collet Clamp 6.48 mm
[LCLC] Length Collet Clamp .2551 in
Weight Kilograms 0.06
Torque Newton Meters 30
Ver todas as variantes de produtos

Usos e aplicações

  • Shank: Duo-Lock CouplingShank: Duo-Lock Coupling
