Série K225

Sistema de bloco • Série K225

Métrico
Polegada
SAP Material Number 2271367
ISO Catalog Number K225SP 90 SYSTEM
ANSI Catalog Number K225SP 90 SYSTEM

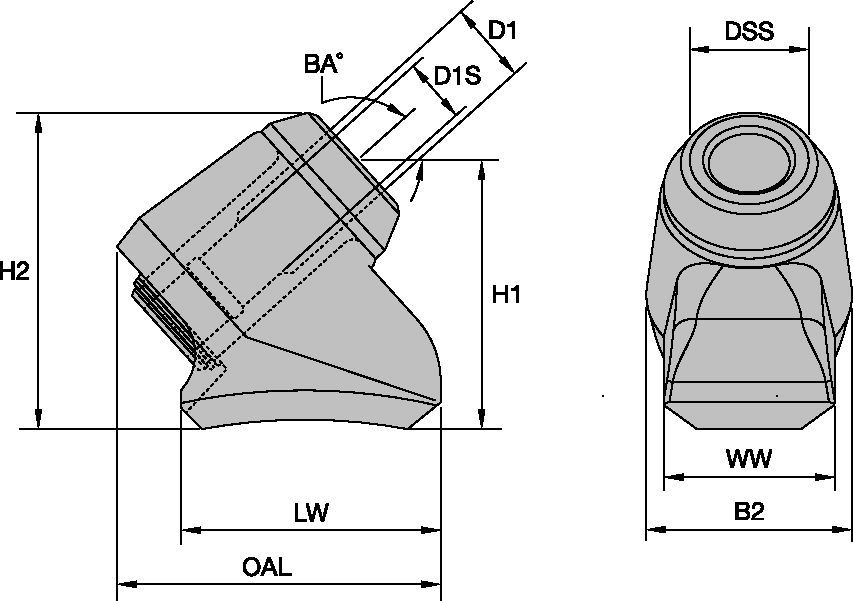

[DSS] Diameter Seating Surface 64 mm
[DSS] Diameter Seating Surface 2.52 in
[D1] Adapter / Shank / Bore Diameter 35.1 mm
[D1] Adapter / Shank / Bore Diameter 1.38 in
[H2] Overall Height 170.3 mm
[H2] Overall Height 6.7 in
[OAL] Overall Length 175.4 mm
[OAL] Overall Length 6.9 in
[B2] Overall Width 110.9 mm
[B2] Overall Width 4.36 in
[H1] Centerline Height 144.8 mm
[H1] Centerline Height 5.7 in
[LW] Weld Length 139.7 mm
[LW] Weld Length 5.5 in
[WW] Weld Width 91.6 mm
[WW] Weld Width 3.61 in
Block Angle [BA] 42
