List price:
Discount: %
List price:
$1,115.36 /each
Your price:
Your price:
      Face milling cutter for multiple materials
      Face milling cutter for multiple materials
      Face milling cutter for multiple materials
      Face milling cutter for multiple materials
      Select the files you wish to request
      Download CAD Drawings

      Dodeka™ High-Feed 75° • Shell Mill • Inch

      Face milling cutter for multiple materials

      Metric
      Inch
      SAP Material Number 4047422
      ISO Catalog Number KSHRHF400HN5315C5
      ANSI Catalog Number KSHRHF400HN5315C5

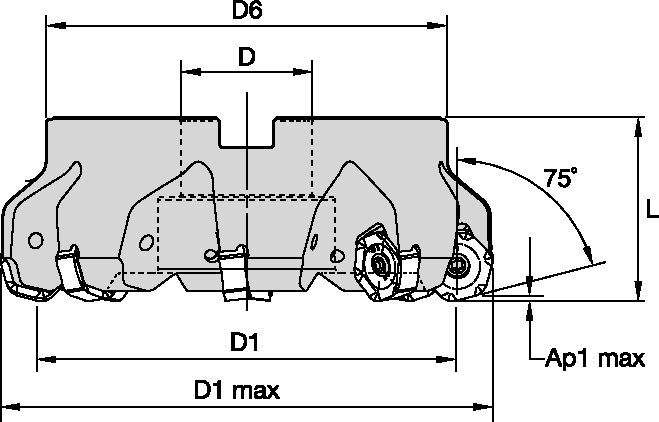

      [D1] Effective Cutting Diameter 101.6000 mm
      [D1] Effective Cutting Diameter 4.000 in
      [D1MAX] Maximum Cutting Diameter 120.5220 mm
      [D1MAX] Maximum Cutting Diameter 4.744 in
      [D] Adapter / Shank / Bore Diameter 31.75 mm
      [D] Adapter / Shank / Bore Diameter 1.25 in
      [D6] Hub Diameter 97.0000 mm
      [D6] Hub Diameter 3.819 in
      [L] Overall Length 44.9620 mm
      [L] Overall Length 1.770 in
      [AP1MAX] 1st Maximum Cutting Depth 2.2100 mm
      [AP1MAX] 1st Maximum Cutting Depth .0870 in
      Number of Inserts 8
      Weight Pounds 3.91
      Max RPM 5800
      See all Product Variants

      Uses and application

      • Face MillingFace Milling
      • Milling - Side and FaceMilling - Side and Face
      • Milling - Through CoolantMilling - Through Coolant

      Workpiece Materials

      P Steel
      M Stainless Steel
      K Cast Iron
      S High-Temp Alloys
      H Hardened Materials

      Features and benefits

      • Internal coolant supply.

      Machine Side

      loading...

      Workpiece Side

      loading...

      Spare Parts for Dodeka™ High-Feed 75° • Shell Mill • Inch

      Spare Part
        INSERT SCR M4-0.7 x 10 T15 INSERT SCR M4-0.7 x 10 T15
        INSERT SCR M4-0.7 x 10 T15
        Spare Part
          SCREW 5/8-18 X 1.7 LG SHOWER HEAD O-RING SCREW 5/8-18 X 1.7 LG SHOWER HEAD O-RING
          SCREW 5/8-18 X 1.7 LG SHOWER HEAD O-RING
          Spare Part
            TORX-WRENCH TX15 170.025 TORX-WRENCH TX15 170.025
            TORX-WRENCH TX15 170.025
