Slotting: Square End
Side Milling/Shoulder Milling: Square End
Tool Dimensions: Flute Configuration: X (variable)
Helix Angle: 50°
Corner Style: Square EndDownloaded file will be available after import in the {{cadTool}} tool library.
| Material Number | 1995582 |
| ISO Catalog ID | F4AJ1000AWM50L150 |
| ANSI Catalog ID | F4AJ1000AWM50L150 |
| Grade | KC633M |
| Adapter Style Machine Side | Straight-Cylindrical |

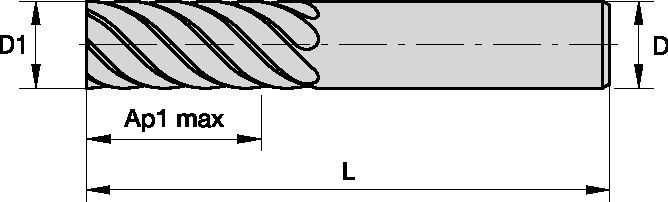

| [D1] Effective Cutting Diameter | 10 mm |
| [D1] Effective Cutting Diameter | 0.3937 in |
| [D] Adapter / Shank / Bore Diameter | 10 mm |
| [D] Adapter / Shank / Bore Diameter | 0.3937 in |
| [AP1MAX] 1st Maximum Cutting Depth | 15 mm |
| [AP1MAX] 1st Maximum Cutting Depth | 0.5906 in |
| [L] Overall Length | 76 mm |
| [L] Overall Length | 2.9921 in |
| [Z] Number of Flutes | 4 |
Slotting: Square EndSide Milling/Shoulder Milling: Square EndTool Dimensions: Flute Configuration: X (variable)Helix Angle: 50°Corner Style: Square EndGrades
KC633M
Coated carbide grade with PVD multilayer coating. KC633M™ is designed for dry milling most types of material, apart from the hardened variety. This grade is characterized by high hardness and wear resistance. It provides outstanding protection for solid carbide tools against cratering and abrasion.
Create Solution to calculate Feeds and Speeds
After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.
| End Mill Tolerances | |||
| D1 | tolerance e8 | D | tolerance h6 + / - |
| ≤3 | -0,014/-0,028 | ≤3 | +0/-0,006 |
| -0,020/-0,038 | +0/-0,008 | ||
| -0,025/-0,047 | +0/-0,009 | ||
| -0,032/-0,059 | +0/-0,011 | ||
| -0,040/-0,073 | +0/-0,013 | ||
 |  |  | ||||||||||||
| Side Milling (A) and Slotting (B) | KC633M | Feed per Tooth — fz information is for side milling (A). | ||||||||||||
| A | B | Cutting Speed | D1 | |||||||||||
| Material | ap | ae | ap | Min | Max | mm | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | 25,0 | |
| P | 3 | 1 x D | 0,4 x D | 1 x D | 160 | 180 | fz | 0,040 | 0,055 | 0,067 | 0,077 | 0,096 | 0,111 | 0,125 |
| 4 | 1 x D | 0,4 x D | 0,75 x D | 140 | 160 | fz | 0,036 | 0,049 | 0,059 | 0,069 | 0,084 | 0,097 | 0,107 | |
| H | 1 | 1 x D | 0,4 x D | 0,75 x D | 120 | 140 | fz | 0,036 | 0,049 | 0,059 | 0,069 | 0,084 | 0,097 | 0,107 |
| 2 | 1 x D | 0,3 x D | 0,5 x D | 80 | 130 | fz | 0,027 | 0,037 | 0,044 | 0,051 | 0,063 | 0,071 | 0,078 | |
| 3 | 1 x D | 0,15 x D | 0,3 x D | 70 | 100 | fz | 0,021 | 0,029 | 0,035 | 0,041 | 0,051 | 0,059 | 0,067 | |
| 4 | 1 x D | 0,1 x D | 0,15 x D | 50 | 70 | fz | 0,014 | 0,019 | 0,023 | 0,027 | 0,034 | 0,039 | 0,044 | |
