52mm Series
52mm Series
52mm Series
52mm Series

52mm (2.06") Shank • Heavy

52mm Series

Features and benefits

  • Catalog numbers containing "HF" indicate Hard Faced Treatment.

Uses and application

  • Cutting Conditions: SevereCutting Conditions: Severe
  • Insert Type: PlugInsert Type: Plug
52mm Series
Filters and Columns
Select Filters
Filters
Filters
Filters
View filters in
Metric
Inch
No filters matching ""
Change the visible columns with any of the parameters listed below. A maximum of 7 columns can be displayed.
Displaying 1- 5 of 5 results
Select Columns
Select Filters
Metric
Inch
Show
Metric
Inch

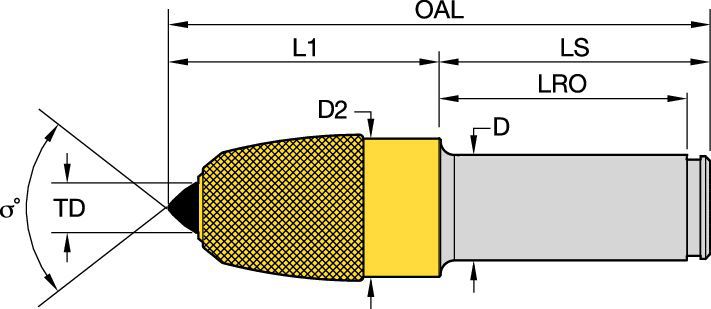

SAP Material Number ISO Catalog Number ANSI Catalog Number Grade [D] Shank/Bore Diameter [D] Shank/Bore Diameter [TD] Tip Diameter [TD] Tip Diameter Point Included Angle [SIGMA] [L1] Gage Length [L1] Gage Length [D2] Body Diameter Workpiece Side [D2] Body Diameter Workpiece Side [LS] Shank Length [LS] Shank Length [OAL] Overall Length [OAL] Overall Length [LRO] Retainer Offset Length [LRO] Retainer Offset Length
4095636 AM962HD HF 3.75R AM962HD HF 3.75R K3560 52.320 2.060 19.406 .7640   91.600 3.600 69.800 2.750 133.300 5.260 224.900 8.860 123.900 4.880
    List price:
    $144.60 /each
    Your price:
    1531305 U200 5.0 .75HF U200 5.0 .75HF K3560 52.300 2.060 18.745 .7380 75.000 126.600 4.980 73.660 2.900 132.600 5.220 259.200 10.200 122.900 4.840
      List price:
      $163.20 /each
      Your price:
      1727511 U200 5.3 .97 U200 5.3 .97 K3570 52.300 2.060 24.725 .9730 100.000 134.900 5.310 68.600 2.700 133.600 5.260 268.500 10.570 122.000 4.800
        List price:
        $116.78 /each
        Your price:
        3898246 U200 5.3 .97 HF U200 5.3 .97 HF K3560 52.300 2.058 24.715 .9730 100.000 134.900 5.310 68.600 2.700 133.600 5.260 268.500 10.570 122.000 4.800
          List price:
          $139.65 /each
          Your price:
          2288279 U200 TSHF 3.2 .75 U200 TSHF 3.2 .75 K3560 52.320 2.060 18.755 .7380 75.000 84.900 3.340 69.800 2.750 131.000 5.160 215.900 8.500 120.650 4.750
            List price:
            $195.00 /each
            Your price:
            List price:
            Discount: %
            Your price:
            Replacement This item is no longer available
            Replacement Product Please contact customer service for assistance

            Grades

            • 610X02S
            • K3560
            • K3570
