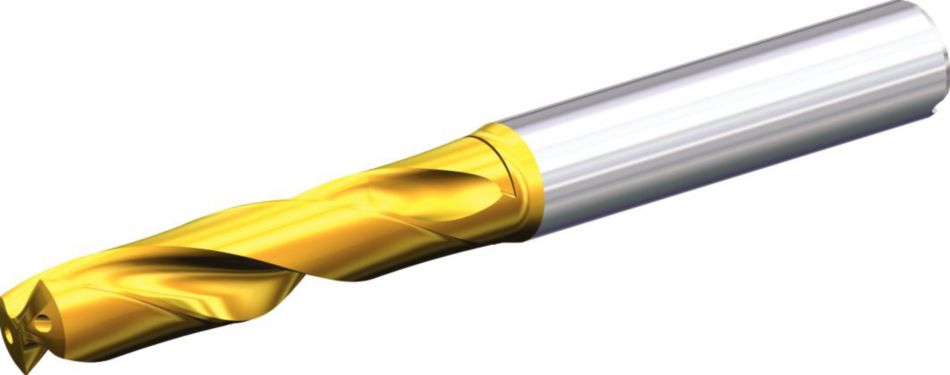

K210_HP (~3 x D) / K211_HP (~5 x D) / K212_HP (~8 x D) • KCM15 • A-Shank • HP Beyond Drills
HP Beyond™ Drills • Stainless Steel • Through Coolant
Features and benefits
- HP Beyond drills with through coolant for stainless steel.
- Material-specific SC drill offering high performance and long tool life in regular steel and titanium materials.
- By combining unique Kennametal technologies, such as the HP point, flute geometry, and a new Beyond grade technology into one tool, the B21_HP is the ultimate high-volume production tool.
- HP point enables high feed rates by progressive rake angle.
- KCM15™ Beyond grade is a nanolayer, TiAlN-based coating with high wear resistance and low adhesion to stainless steel materials.
- The highly polished surface ensures superior chip evacuation even when low-pressure coolant is applied.
Uses and application
- Drilling
- Tool Dimensions: 2flute/2margin/coolant
- Drilling - Through Coolant
- Shank - Cylindrical Plain ≤h6
- Helix Angle: 30°
- Drilling Depth: 3x
- Drilling Depth: 5x
- Drilling Depth: 8x
