Indexable End Mills
Indexable End Mills
Indexable End Mills
Indexable End Mills

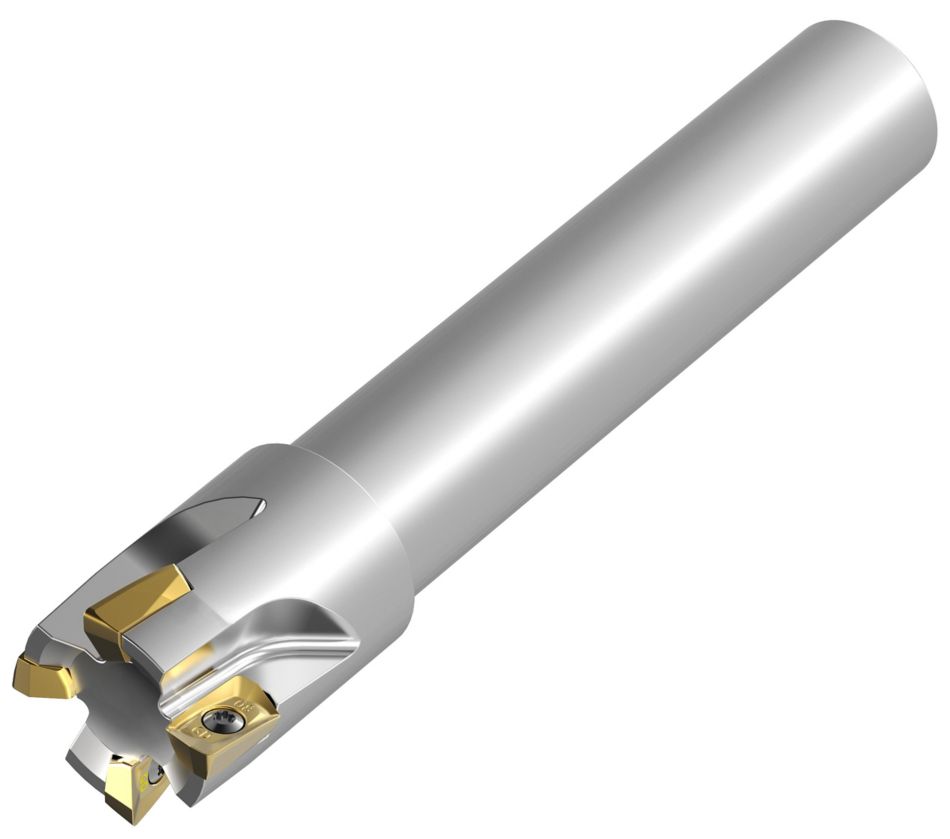

Mill 1-10™ End Mills • Cylindrical Shank • Inch

Indexable End Mills

Features and benefits

  • Mill 0° walls.

  • Aggressive ramping rates.

  • Generates superior surface finish.

  • High RPM capabilities.

Uses and application

  • Face MillingFace Milling
  • Helical MillingHelical Milling
  • Ramping: BlankRamping: Blank
  • Slotting: Square EndSlotting: Square End
  • Side Milling/Shoulder Milling: Square EndSide Milling/Shoulder Milling: Square End
  • PocketingPocketing
  • Shank - Cylindrical PlainShank - Cylindrical Plain
  • Milling - Through CoolantMilling - Through Coolant

Workpiece Materials

P Steel
M Stainless Steel
K Cast Iron
N Non-Ferrous
S High-Temp Alloys
H Hardened Materials
Indexable End Mills
Filters and Columns
Select Filters
Filters
Filters
Filters
View filters in
Metric
Inch
Key Filters
Workpiece Material
Workpiece Material
  • P Steel (19)
    • P0
      Low-Carbon Steels, Long Chipping C < .25%; <125 HB; <530 N/mm^2 UTS
      (19)
    • P1
      Low-Carbon Steels, Short Chipping C < .25%; <125 HB; <530 N/mm^2 UTS
      (19)
    • P2
      Medium and High Carbon Steels C < .25%; <220 HB; <25 HRC; >530 N/mm^2 UTS
      (19)
    • P3
      Alloy Steels & Tool Steels C > .25%; <330 HB; <35 HRC; 600-850 N/mm^2 UTS
      (19)
    • P4
      Alloy Steels & Tool Steels C > .25%; 350-420 HB; 35-43 HRC; 850-1400 N/mm^2 UTS
      (19)
    • P5
      Ferritic, Martensitic, and PH Stainless Steels <330 HB; <35 HRC; 600-900 N/mm^2 UTS
      (19)
    • P6
      High Strength Ferritic, Martensitic, and PH Stainless Steels 350-450 HB; 35-43 HRC; 900-2400 N/mm^2 UTS
      (19)
  • M Stainless Steel (19)
    • M1
      Austenitic Stainless Steel 130-200 HB; <600 N/mm^2 UTS
      (19)
    • M2
      High Strength Austenitic Stainless and Cast Stainless Steels 150-230 HB; <25 HRC; >600 N/mm^2 UTS
      (19)
    • M3
      Duplex Stainless Steel 135-275 HB; <30 HRC; 500-1200 N/mm^2 UTS
      (19)
  • K Cast Iron (19)
    • K1
      Gray Cast Iron 120-290 HB; <32 HRC; 125-500 N/mm^2 UTS
      (19)
    • K2
      Low and Medium Strength CGI and Ductile Irons 130-260 HB; <28 HRC; <600 N/mm^2 UTS
      (19)
    • K3
      High Strength Ductile and Austempered Ductile Iron 180-350 HB; <43 HRC; >600 N/mm^2 UTS
      (19)
  • N Non-Ferrous Materials (19)
    • N1
      Wrought Aluminum
      (19)
    • N2
      Low-Silicon Aluminum Alloys and Magnesium Alloys Si <12.2%
      (19)
    • N3
      High-Silicon Aluminum Alloys Si >12.2%
      (19)
  • S High-Temp Alloys (19)
    • S1
      Iron-Based, Heat-Resistant Alloys 160-260 HB; 25-48 HRC; 500-1200 N/mm^2 UTS
      (19)
    • S2
      Cobalt-Based, Heat-Resistant Alloys 250-450 HB; 25-48 HRC; 1000-1450 N/mm^2 UTS
      (19)
    • S3
      Nickel-Based, Heat Resistant Alloys 160-450 HB; <48 HRC; 600-1700 N/mm^2 UTS
      (19)
    • S4
      Titanium and Titanium Alloys 300-400 HB; 33-43 HRC; 900-1600 N/mm^2 UTS
      (19)
  • H Hardened Materials (19)
    • H1
      Hardened Materials 44-48 HRC
      (19)
Select First Choice
  • US (17)
Applications
Applications
  • Face Milling Face Milling (19)
  • Pocket Pocket (19)
  • Pocket Helical Pocket Helical (19)
  • Pocket Milling Pocket Milling (19)
  • Ramping Ramping (19)
  • Shoulder Milling Shoulder Milling (19)
  • Shoulder Roughing Shoulder Roughing (19)
  • Shoulder Square End Shoulder Square End (19)
  • Slot Milling Slot Milling (11)
  • Slot Square End Slot Square End (11)
Cutting Diameter
Cutting Diameter
  • 0.5 in (1)
  • 0.625 in (2)
  • 0.75 in (4)
  • 0.875 in (1)
  • 1.0 in (6)
  • 1.1 in (1)
  • 1.25 in (4)
Cutting Diameter Min to Cutting Diameter Max
Cutting Diameter
Cutting Diameter
  • 12.701 mm (1)
  • 15.875 mm (2)
  • 19.05 mm (4)
  • 22.225 mm (1)
  • 25.401 mm (6)
  • 27.951 mm (1)
  • 31.75 mm (4)
Cutting Diameter Min to Cutting Diameter Max
Cutting Length
Cutting Length
  • 9.951 mm (4)
  • 10.0 mm (1)
  • 10.025 mm (6)
  • 10.05 mm (2)
  • 10.076 mm (1)
  • 10.101 mm (4)
  • 10.25 mm (1)
Cutting Length Min to Cutting Length Max
Cutting Length
Cutting Length
  • 0.392 in (4)
  • 0.394 in (1)
  • 0.395 in (6)
  • 0.396 in (2)
  • 0.397 in (1)
  • 0.398 in (4)
  • 0.404 in (1)
Cutting Length Min to Cutting Length Max
Reach
Reach
  • 0.8 in (1)
  • 0.999 in (1)
  • 1.0 in (1)
  • 1.1 in (2)
  • 1.25 in (7)
  • 1.6 in (5)
  • 1.901 in (2)
Reach Min to Reach Max
Reach
Reach
  • 20.326 mm (1)
  • 25.375 mm (1)
  • 25.401 mm (1)
  • 27.951 mm (2)
  • 31.75 mm (7)
  • 40.651 mm (5)
  • 48.25 mm (2)
Reach Min to Reach Max
Number of Flutes
Number of Flutes
  • 1 (1)
  • 2 (4)
  • 3 (6)
  • 4 (6)
  • 5 (2)
Cutting Edges Per Insert
Cutting Edges Per Insert
  • 1.0 (19)
  • 2.0 (19)
Cutting Edges Per Insert Min to Cutting Edges Per Insert Max
Corner configuration
Corner Radius
Corner Radius
  • 0.008 in (19)
  • 0.016 in (19)
  • 0.031 in (19)
  • 0.039 in (19)
  • 0.047 in (19)
  • 0.063 in (19)
  • 0.079 in (19)
  • 0.094 in (19)
  • 0.122 in (19)
  • 0.157 in (19)
Corner Radius Min to Corner Radius Max
Corner Radius
Corner Radius
  • 0.2 mm (19)
  • 0.4 mm (19)
  • 0.8 mm (19)
  • 1.0 mm (19)
  • 1.201 mm (19)
  • 1.6 mm (19)
  • 2.0 mm (19)
  • 2.375 mm (19)
  • 3.1 mm (19)
  • 4.0 mm (19)
Corner Radius Min to Corner Radius Max
Application
Grade Of Cutting Tool
Grade Of Cutting Tool
  • K313 (19)
  • KC410M (19)
  • KC422M (19)
  • KC510M (19)
  • KC520M (19)
  • KC522M (19)
  • KC725M (19)
  • KCK15 (19)
  • KCK20B (19)
  • KCKP10 (19)
  • KCPK30 (19)
  • KCPM20 (19)
  • KCPM40 (19)
  • KCSM30 (19)
  • KCSM40 (19)
  • KD1410 (19)
Maximum Ramp Angle
Maximum Ramp Angle
  • 2.5 (4)
  • 3.25 (1)
  • 4.0 (6)
  • 5.0 (1)
  • 6.5 (4)
  • 9.5 (2)
  • 11.5 (1)
Maximum Ramp Angle Min to Maximum Ramp Angle Max
Front-End
Insert Shape
Insert Shape
  • E-PARALLELOGRAM 70 (19)
  • X-PARALLELOGRAM 70 (19)
  • X-PARALLELOGRAM 75 (19)
Back-End
Back-End Diameter
Back-End Diameter
  • 15.875 mm (2)
  • 19.0 mm (3)
  • 19.05 mm (5)
  • 25.401 mm (5)
  • 31.75 mm (4)
Back-End Diameter Min to Back-End Diameter Max
Back-End Diameter
Back-End Diameter
  • 0.625 in (2)
  • 0.748 in (3)
  • 0.75 in (5)
  • 1.0 in (5)
  • 1.25 in (4)
Back-End Diameter Min to Back-End Diameter Max
No filters matching ""
Change the visible columns with any of the parameters listed below. A maximum of 7 columns can be displayed.
Displaying 1- 10 of 19 results
Select Columns
Select Filters
Metric
Inch
Show
Metric
Inch
SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice [D1] Effective Cutting Diameter [D1] Effective Cutting Diameter [D] Adapter / Shank / Bore Diameter [D] Adapter / Shank / Bore Diameter [L] Overall Length [L] Overall Length [L2] Head Length [L2] Head Length [AP1MAX] 1st Maximum Cutting Depth [AP1MAX] 1st Maximum Cutting Depth Number of Inserts Maximum Ramping Angle Weight Pounds Max RPM
3742518 M1D050E1001C062L350 M1D050E1001C062L350   12.7000 .5000 15.875 .625 88.9000 3.500 20.3200 .8000 10.2600 .4040 1 11.500 0.25 56500
    List price:
    $362.62 /each
    Your price:
    3742536 M1D062E1002C062L670 M1D062E1002C062L670   15.8750 .6250 15.875 .625 170.1800 6.700 25.3800 .9990 10.0600 .3960 2 9.500 0.49 50300
      List price:
      $388.39 /each
      Your price:
      3742519 M1D062E1002C075L400 M1D062E1002C075L400   15.8750 .6250 19.05 .75 101.6000 4.000 25.4000 1.000 10.0600 .3960 2 9.500 0.40 50300
        List price:
        $380.35 /each
        Your price:
        3742520 M1D075E1002C075L450 M1D075E1002C075L450   19.0500 .7500 19.05 .75 114.3000 4.500 27.9400 1.100 10.1100 .3980 2 6.500 0.46 45900
          List price:
          $396.47 /each
          Your price:
          3742538 M1D075E1002C075L670 M1D075E1002C075L670   19.0500 .7500 19.05 .75 170.1800 6.700 31.7500 1.250 10.1100 .3980 2 6.500 0.70 45900
            List price:
            $406.17 /each
            Your price:
            3742521 M1D075E1003C075L450 M1D075E1003C075L450   19.0500 .7500 19.05 .75 114.3000 4.500 27.9400 1.100 10.1100 .3980 3 6.500 0.46 45900
              List price:
              $406.17 /each
              Your price:
              3742540 M1D075E1003C075L670 M1D075E1003C075L670   19.0500 .7500 19.05 .75 170.1800 6.700 31.7500 1.250 10.1100 .3980 3 6.500 0.71 45900
                List price:
                $414.17 /each
                Your price:
                3742542 M1D088E1003C075L670 M1D088E1003C075L670   22.2200 .8750 19.0 .75 170.1800 6.700 31.7500 1.250 10.0700 .3960 3 5.000 0.74 42600
                  List price:
                  $422.25 /each
                  Your price:
                  3897779 M1D100E1003C075L480 M1D100E1003C075L480   25.4000 1.000 19.0 .75 121.9200 4.800 31.7500 1.250 10.0300 .3950 3 4.000 0.58 39700
                    List price:
                    $422.25 /each
                    Your price:
                    3742522 M1D100E1003C100L480 M1D100E1003C100L480   25.4000 1.000 25.4 1.0 121.9200 4.800 31.7500 1.250 10.0300 .3950 3 4.000 0.92 39700
                      List price:
                      $422.25 /each
                      Your price:
                      3742543 M1D100E1003C100L800 M1D100E1003C100L800   25.4000 1.000 25.4 1.0 203.2000 8.000 40.6400 1.600 10.0300 .3950 3 4.000 1.59 39700
                        List price:
                        $431.90 /each
                        Your price:
                        3897780 M1D100E1004C075L480 M1D100E1004C075L480   25.4000 1.000 19.0 .75 121.9200 4.800 31.7500 1.250 10.0300 .3950 4 4.000 0.58 39700
                          List price:
                          $431.90 /each
                          Your price:
                          3742533 M1D100E1004C100L480 M1D100E1004C100L480   25.4000 1.000 25.4 1.0 121.9200 4.800 31.7500 1.250 10.0300 .3950 4 4.000 0.92 39700
                            List price:
                            $431.90 /each
                            Your price:
                            3742545 M1D100E1004C100L800 M1D100E1004C100L800   25.4000 1.000 25.4 1.0 203.2000 8.000 40.6400 1.600 10.0300 .3950 4 4.000 1.59 39700
                              List price:
                              $439.97 /each
                              Your price:
                              3742547 M1D110E1004C100L800 M1D110E1004C100L800   27.9400 1.100 25.4 1.0 203.2000 8.000 40.6400 1.600 10.0100 .3940 4 3.250 1.64 38000
                                List price:
                                $449.68 /each
                                Your price:
                                3742534 M1D125E1004C125L520 M1D125E1004C125L520   31.7500 1.250 31.75 1.25 132.0800 5.200 40.6400 1.600 9.9600 .3920 4 2.500 1.57 35500
                                  List price:
                                  $449.68 /each
                                  Your price:
                                  3742548 M1D125E1004C125L800 M1D125E1004C125L800   31.7500 1.250 31.75 1.25 203.2000 8.000 48.2600 1.900 9.9600 .3920 4 2.500 2.48 35500
                                    List price:
                                    $457.69 /each
                                    Your price:
                                    3742535 M1D125E1005C125L520 M1D125E1005C125L520   31.7500 1.250 31.75 1.25 132.0800 5.200 40.6400 1.600 9.9600 .3920 5 2.500 1.57 35500
                                      List price:
                                      $457.69 /each
                                      Your price:
                                      3742550 M1D125E1005C125L800 M1D125E1005C125L800   31.7500 1.250 31.75 1.25 203.2000 8.000 48.2600 1.900 9.9600 .3920 5 2.500 2.48 35500
                                        List price:
                                        $507.67 /each
                                        Your price:
