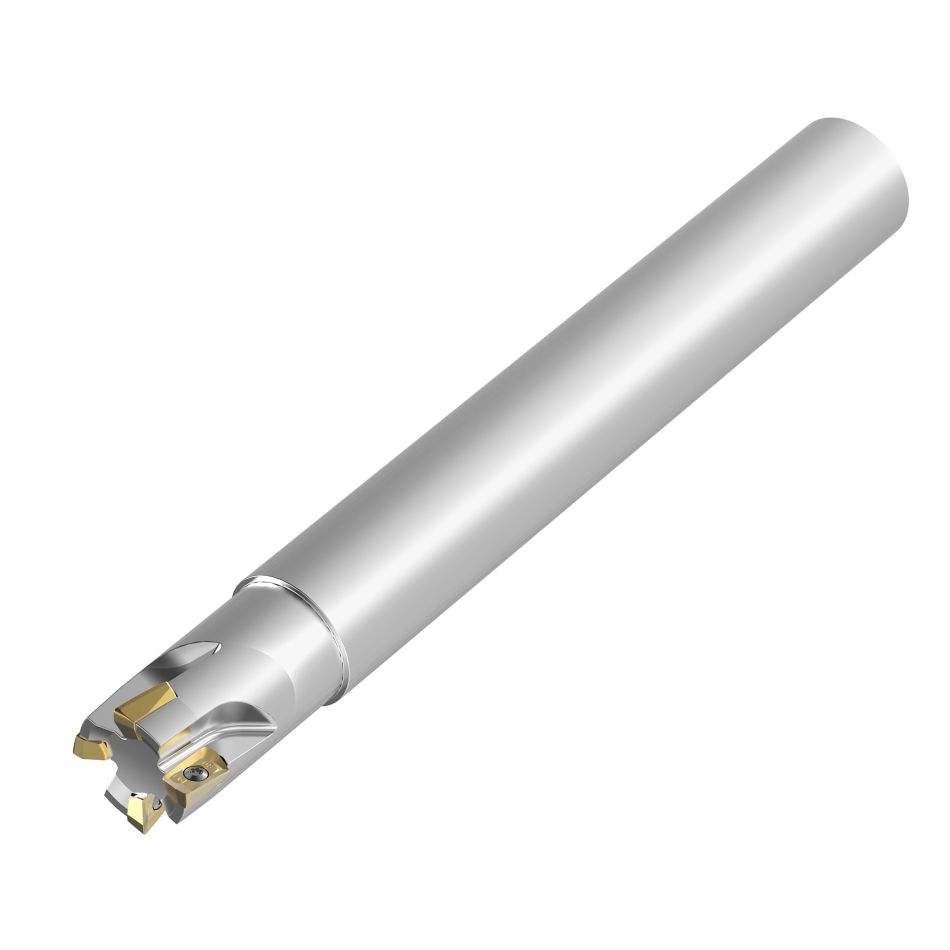

Mill 1-10™ End Mills • Cylindrical Shank • Long Length Modified • Inch
Indexable End Mills
Features and benefits
- Mill 0° walls.
- Aggressive ramping rates.
- Generates superior surface finish.
- High RPM capabilities.
Uses and application
Face Milling
Helical Milling
Ramping: Blank
Slotting: Square End
Side Milling/Shoulder Milling: Square End
Pocketing
Shank - Cylindrical Plain
Milling - Through Coolant
Workpiece Materials
P
Steel
M
Stainless Steel
K
Cast Iron
N
Non-Ferrous
S
High-Temp Alloys
H
Hardened Materials
Filters and Columns
Filters
Filters
Filters
View filters in
Metric
Inch
Workpiece Material
Workpiece Material
-
P Steel (5)
-
P0Low-Carbon Steels, Long Chipping C < .25%; <125 HB; <530 N/mm^2 UTS(5)
-
P1Low-Carbon Steels, Short Chipping C < .25%; <125 HB; <530 N/mm^2 UTS(5)
-
P2Medium and High Carbon Steels C < .25%; <220 HB; <25 HRC; >530 N/mm^2 UTS(5)
-
P3Alloy Steels & Tool Steels C > .25%; <330 HB; <35 HRC; 600-850 N/mm^2 UTS(5)
-
P4Alloy Steels & Tool Steels C > .25%; 350-420 HB; 35-43 HRC; 850-1400 N/mm^2 UTS(5)
-
P5Ferritic, Martensitic, and PH Stainless Steels <330 HB; <35 HRC; 600-900 N/mm^2 UTS(5)
-
P6High Strength Ferritic, Martensitic, and PH Stainless Steels 350-450 HB; 35-43 HRC; 900-2400 N/mm^2 UTS(5)
-
-
M Stainless Steel (5)
-
M1Austenitic Stainless Steel 130-200 HB; <600 N/mm^2 UTS(5)
-
M2High Strength Austenitic Stainless and Cast Stainless Steels 150-230 HB; <25 HRC; >600 N/mm^2 UTS(5)
-
M3Duplex Stainless Steel 135-275 HB; <30 HRC; 500-1200 N/mm^2 UTS(5)
-
-
K Cast Iron (5)
-
K1Gray Cast Iron 120-290 HB; <32 HRC; 125-500 N/mm^2 UTS(5)
-
K2Low and Medium Strength CGI and Ductile Irons 130-260 HB; <28 HRC; <600 N/mm^2 UTS(5)
-
K3High Strength Ductile and Austempered Ductile Iron 180-350 HB; <43 HRC; >600 N/mm^2 UTS(5)
-
-
N Non-Ferrous Materials (5)
-
N1Wrought Aluminum(5)
-
N2Low-Silicon Aluminum Alloys and Magnesium Alloys Si <12.2%(5)
-
N3High-Silicon Aluminum Alloys Si >12.2%(5)
-
-
S High-Temp Alloys (5)
-
S1Iron-Based, Heat-Resistant Alloys 160-260 HB; 25-48 HRC; 500-1200 N/mm^2 UTS(5)
-
S2Cobalt-Based, Heat-Resistant Alloys 250-450 HB; 25-48 HRC; 1000-1450 N/mm^2 UTS(5)
-
S3Nickel-Based, Heat Resistant Alloys 160-450 HB; <48 HRC; 600-1700 N/mm^2 UTS(5)
-
S4Titanium and Titanium Alloys 300-400 HB; 33-43 HRC; 900-1600 N/mm^2 UTS(5)
-
-
H Hardened Materials (5)
-
H1Hardened Materials 44-48 HRC(5)
-
Select First Choice
-
US (3)
Applications
Applications
-
Face Milling (5)
-
Pocket (5)
-
Pocket Helical (5)
-
Pocket Milling (5)
-
Ramping (5)
-
Shoulder Milling (5)
-
-
-
Slot Milling (3)
-
Slot Square End (3)
Cutting Diameter
Cutting Diameter
-
0.625 in (1)
-
0.75 in (1)
-
1.0 in (2)
-
1.25 in (1)
to
Cutting Diameter
Cutting Diameter
-
15.875 mm (1)
-
19.05 mm (1)
-
25.401 mm (2)
-
31.75 mm (1)
to
Cutting Length
Cutting Length
-
9.701 mm (1)
-
9.75 mm (2)
-
9.775 mm (1)
-
9.826 mm (1)
to
Cutting Length
Cutting Length
-
0.382 in (1)
-
0.384 in (2)
-
0.385 in (1)
-
0.387 in (1)
to
Reach
Reach
-
0.987 in (1)
-
1.239 in (1)
-
1.589 in (2)
-
1.889 in (1)
to
Reach
Reach
-
25.076 mm (1)
-
31.475 mm (1)
-
40.35 mm (2)
-
47.975 mm (1)
to
Number of Flutes
Number of Flutes
-
2 (1)
-
3 (2)
-
4 (1)
-
5 (1)
Corner Radius
Corner Radius
-
0.122 in (5)
-
0.157 in (5)
to
Corner Radius
Corner Radius
-
3.1 mm (5)
-
4.0 mm (5)
to
Application
Grade Of Cutting Tool
Grade Of Cutting Tool
-
K313 (5)
-
KC410M (5)
-
KC422M (5)
-
KC520M (5)
-
KC522M (5)
-
KC725M (5)
-
KCPK30 (5)
-
KCPM20 (5)
-
KCPM40 (5)
-
KCSM30 (5)
-
KCSM40 (5)
Maximum Ramp Angle
Maximum Ramp Angle
-
2.0 (1)
-
3.0 (2)
-
5.25 (1)
-
8.0 (1)
to
Front-End
Insert Shape
Insert Shape
-
E-PARALLELOGRAM 70 (5)
-
X-PARALLELOGRAM 70 (5)
-
X-PARALLELOGRAM 75 (5)
Back-End
Back-End Diameter
Back-End Diameter
-
15.875 mm (1)
-
19.05 mm (1)
-
25.401 mm (2)
-
31.75 mm (1)
to
Back-End Diameter
Back-End Diameter
-
0.625 in (1)
-
0.75 in (1)
-
1.0 in (2)
-
1.25 in (1)
to
No filters matching ""
Change the visible columns with any of the parameters listed below. A maximum of 7 columns can be displayed.
Displaying
1- 5
of 5 results
Metric
Inch
Show
Metric
Inch
| SAP Material Number | ISO Catalog Number | ANSI Catalog Number | First Choice | [D1] Effective Cutting Diameter | [D1] Effective Cutting Diameter | [D] Adapter / Shank / Bore Diameter | [D] Adapter / Shank / Bore Diameter | [L] Overall Length | [L] Overall Length | [L2] Head Length | [L2] Head Length | [AP1MAX] 1st Maximum Cutting Depth | [AP1MAX] 1st Maximum Cutting Depth | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3742537 | M1D062E1002C062L670R | M1D062E1002C062L670R | 15.8750 | .6250 | 15.875 | .625 | 169.8700 | 6.688 | 25.0700 | .9870 | 9.7500 | .3840 |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
List price:
$420.66
/each
Your price:
Qty
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3742541 | M1D075E1003C075L670R | M1D075E1003C075L670R | 19.0500 | .7500 | 19.05 | .75 | 169.9000 | 6.689 | 31.4700 | 1.239 | 9.8300 | .3870 |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
List price:
$462.55
/each
Your price:
Qty
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3742544 | M1D100E1003C100L800R | M1D100E1003C100L800R | 25.4000 | 1.000 | 25.4 | 1.0 | 202.9200 | 7.989 | 40.3600 | 1.589 | 9.7800 | .3850 |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
List price:
$480.27
/each
Your price:
Qty
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3742546 | M1D100E1004C100L800R | M1D100E1004C100L800R | 25.4000 | 1.000 | 25.4 | 1.0 | 202.9200 | 7.989 | 40.3600 | 1.589 | 9.7500 | .3840 |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
List price:
$504.45
/each
Your price:
Qty
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3742551 | M1D125E1005C125L800R | M1D125E1005C125L800R | 31.7500 | 1.250 | 31.75 | 1.25 | 202.9200 | 7.989 | 47.9800 | 1.889 | 9.7000 | .3820 |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
List price:
$546.34
/each
Your price:
Qty
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
List price:
Discount: %
Replacement
This item is no longer available
Replacement Product Please contact customer service for assistance
Replacement Product Please contact customer service for assistance
Qty
Sold in pkg. of
Insert Selection Guide
| Material Group | Light Machining | General Purpose | Heavy Machining | |||
| – | (Light geometry) | – | (Strong geometry) | |||
| – | wear resistance |  <="" td=""> | toughness | |||
| – | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | .E..LD | KCPM40 | .S..GD | KCPM40 | .E..HD | KCPM40 |
| P3–P4 | .E..LD | KCPK30 | .S..GD | KCPK30 | .E..HD | KCPK30 |
| P5–P6 | .E..LD | KC725M | .S..GD | KC725M | .E..HD | KC725M |
| M1–M2 | .E..LD | KCSM40 | .S..GD | KC725M | .E..HD | KCSM40 |
| M3 | .E..LD | KCSM40 | .S..GD | KCPM40 | .E..HD | KCSM40 |
| K1–K2 | .E..LD | KCK15 | .S..GD | KCK15 | .E..HD | KCK15 |
| K3 | .E..LD | KC520M | .S..GD | KC520M | .E..HD | KC520M |
| N1–N2 | .F..LDJ | KC410M | .E..LDJ | KC422M | .E..LD | KC510M |
| N3 | .F..LDJ | KC410M | .F..LDJ | KC410M | .F..LDJ | KC410M |
| S1–S2 | .E..LD | KC725M | .S..GD | KC725M | .E..HD | KC725M |
| S3 | .E..LD | KCSM40 | .S..GE | KCSM40 | .E..HD | KCSM40 |
| S4 | .E..LD | KCSM40 | .S..GE | KCSM40 | .E..HD | KCSM40 |
| H1 | .E..LD | KC510M | – | – | – | – |
Recommended Starting Feeds [mm]
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40–100% | ||||||||||||
| .F..LDJ | 0,12 | 0,35 | 0,58 | 0,08 | 0,25 | 0,42 | 0,06 | 0,19 | 0,31 | 0,06 | 0,16 | 0,27 | 0,05 | 0,15 | 0,25 | .F..LDJ |
| .F..-PCD | 0,12 | 0,35 | 0,58 | 0,08 | 0,25 | 0,42 | 0,06 | 0,19 | 0,31 | 0,06 | 0,16 | 0,27 | 0,05 | 0,15 | 0,25 | .F..-PCD |
| .E..LDJ | 0,12 | 0,35 | 0,58 | 0,08 | 0,25 | 0,42 | 0,06 | 0,19 | 0,32 | 0,06 | 0,16 | 0,28 | 0,05 | 0,15 | 0,25 | .E..LDJ |
| .E..LD | 0,12 | 0,35 | 0,57 | 0,09 | 0,25 | 0,41 | 0,07 | 0,19 | 0,31 | 0,06 | 0,17 | 0,27 | 0,05 | 0,15 | 0,25 | .E..LD |
| .S..GE | 0,23 | 0,46 | 0,70 | 0,17 | 0,33 | 0,51 | 0,13 | 0,25 | 0,38 | 0,11 | 0,22 | 0,33 | 0,10 | 0,20 | 0,30 | .S..GE |
| .S..GD | 0,23 | 0,47 | 0,71 | 0,17 | 0,34 | 0,51 | 0,13 | 0,25 | 0,38 | 0,11 | 0,22 | 0,33 | 0,10 | 0,20 | 0,30 | .S..GD |
| .E..HD | 0,23 | 0,51 | 0,82 | 0,17 | 0,37 | 0,59 | 0,13 | 0,28 | 0,44 | 0,11 | 0,24 | 0,38 | 0,10 | 0,22 | 0,35 | .E..HD |
| Light Machining | General Purpose | Heavy Machining |
Recommended Starting Feeds [IPT]
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40–100% | ||||||||||||
| .F..LDJ | .005 | .014 | .023 | .003 | .010 | .017 | .003 | .008 | .013 | .002 | .007 | .011 | .002 | .006 | .010 | .F..LDJ |
| .F..-PCD | .005 | .014 | .023 | .003 | .010 | .017 | .003 | .008 | .013 | .002 | .007 | .011 | .002 | .006 | .010 | .F..-PCD |
| .E..LDJ | .005 | .014 | .023 | .003 | .010 | .017 | .003 | .008 | .013 | .002 | .007 | .011 | .002 | .006 | .010 | .E..LDJ |
| .E..LD | .005 | .014 | .023 | .004 | .010 | .016 | .003 | .008 | .012 | .002 | .007 | .011 | .002 | .006 | .010 | .E..LD |
| .S..GE | .009 | .018 | .028 | .007 | .013 | .020 | .005 | .010 | .015 | .004 | .009 | .013 | .004 | .008 | .012 | .S..GE |
| .S..GD | .009 | .019 | .028 | .007 | .013 | .020 | .005 | .010 | .015 | .004 | .009 | .013 | .004 | .008 | .012 | .S..GD |
| .E..HD | .009 | .020 | .032 | .007 | .014 | .023 | .005 | .011 | .017 | .004 | .009 | .015 | .004 | .009 | .014 | .E..HD |
| Light Machining | General Purpose | Heavy Machining |
Recommended Starting Speeds [m/min]
| Material Group | K313 | KC410M | KC422M | KC510M | KC520M | KC522M | KC725M | KCK15 | KCPM20 | KCPK30 | KD1410 | |||||||||||||||||||||||
| P | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 330 | 285 | 270 | 260 | 230 | 215 | – | – | – | 550 | 485 | 450 | 455 | 395 | 370 | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 275 | 240 | 200 | 220 | 190 | 160 | – | – | – | 340 | 310 | 275 | 280 | 255 | 230 | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 255 | 215 | 175 | 200 | 170 | 140 | – | – | – | 310 | 275 | 255 | 255 | 230 | 205 | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | 245 | 200 | 170 | – | – | – | 225 | 185 | 150 | 180 | 150 | 120 | – | – | – | 230 | 215 | 190 | 190 | 175 | 160 | – | – | – | |
| 5 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 185 | 170 | 150 | 150 | 135 | 120 | – | – | – | 275 | 250 | 230 | 260 | 230 | 210 | – | – | – | |
| 6 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 165 | 125 | 100 | 130 | 100 | 80 | – | – | – | 190 | 170 | 145 | 160 | 135 | – | – | – | – | |
| M | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 205 | 180 | 165 | 170 | 150 | 135 | – | – | – | 225 | 200 | 175 | 205 | 185 | 155 | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 185 | 160 | 130 | 155 | 130 | 110 | – | – | – | 205 | 175 | 160 | 185 | 160 | 140 | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 140 | 120 | 95 | 115 | 100 | 80 | – | – | – | 160 | 145 | 125 | 145 | 130 | 115 | – | – | – | |
| K | 1 | 190 | 170 | 150 | – | – | – | – | – | – | 295 | 265 | 240 | 270 | 245 | 215 | 230 | 205 | 185 | – | – | – | 420 | 385 | 340 | 360 | 325 | 295 | 295 | 265 | 240 | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | 230 | 205 | 190 | 210 | 190 | 175 | 180 | 160 | 150 | – | – | – | 335 | 295 | 275 | 285 | 255 | 235 | 235 | 210 | 190 | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | 195 | 175 | 160 | 175 | 160 | 145 | 150 | 135 | 120 | – | – | – | 280 | 250 | 230 | 240 | 215 | 200 | 195 | 175 | 160 | – | – | – | |
| N | 1–2 | 795 | 695 | 600 | 1215 | 1080 | 995 | 1075 | 945 | 875 | 640 | 570 | 525 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 2755 | 2450 | 2255 |
| 3 | – | – | – | 1080 | 995 | 915 | 945 | 875 | 760 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 2285 | 1670 | 1355 | |
| S | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 40 | 35 | 25 | 35 | 30 | 25 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 40 | 35 | 25 | 35 | 30 | 25 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 50 | 40 | 25 | 45 | 35 | 25 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 70 | 50 | 35 | 60 | 45 | 30 | – | – | – | – | – | – | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – | 160 | 130 | 90 | – | – | – | 120 | 90 | 70 | – | – | – | – | – | – | 140 | 115 | 95 | – | – | – | – | – | – |
Recommended Starting Speeds [SFM]
| Material Group | K313 | KC410M | KC422M | KC510M | KC520M | KC522M | KC725M | KCK15 | KCPM20 | KCPK30 | KD1410 | |||||||||||||||||||||||
| P | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 1080 | 940 | 880 | 860 | 750 | 700 | – | – | – | 1810 | 1590 | 1470 | 1485 | 1300 | 1210 | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 900 | 790 | 660 | 720 | 630 | 530 | – | – | – | 1120 | 1010 | 910 | 920 | 830 | 750 | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 830 | 700 | 580 | 660 | 560 | 460 | – | – | – | 1010 | 910 | 830 | 830 | 750 | 680 | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | 800 | 650 | 550 | – | – | – | 740 | 610 | 490 | 590 | 490 | 390 | – | – | – | 760 | 700 | 630 | 620 | 575 | 520 | – | – | – | |
| 5 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 610 | 550 | 490 | 490 | 440 | 390 | – | – | – | 910 | 820 | 750 | 850 | 760 | 690 | – | – | – | |
| 6 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 540 | 410 | 330 | 430 | 330 | 260 | – | – | – | 630 | 550 | 475 | 520 | 450 | – | – | – | – | |
| M | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 670 | 590 | 540 | 560 | 490 | 450 | – | – | – | 730 | 655 | 570 | 680 | 600 | 515 | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 610 | 520 | 430 | 510 | 430 | 360 | – | – | – | 670 | 580 | 520 | 610 | 530 | 460 | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 460 | 400 | 310 | 380 | 330 | 260 | – | – | – | 530 | 475 | 410 | 475 | 430 | 380 | – | – | – | |
| K | 1 | 620 | 550 | 490 | – | – | – | – | – | – | 960 | 870 | 780 | 880 | 800 | 710 | 750 | 680 | 600 | – | – | – | 1380 | 1255 | 1115 | 1180 | 1070 | 960 | 965 | 875 | 780 | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | 760 | 680 | 630 | 690 | 620 | 580 | 590 | 530 | 490 | – | – | – | 1095 | 975 | 910 | 940 | 840 | 770 | 770 | 690 | 630 | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | 640 | 570 | 520 | 580 | 520 | 470 | 490 | 440 | 400 | – | – | – | 920 | 815 | 750 | 790 | 700 | 650 | 645 | 575 | 530 | – | – | – | |
| N | 1–2 | 2610 | 2280 | 1960 | 3990 | 3550 | 3270 | 3520 | 3100 | 2870 | 2100 | 1870 | 1720 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 9030 | 8040 | 7400 |
| 3 | – | – | – | 3550 | 3270 | 3000 | 3100 | 2870 | 2500 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 7490 | 5470 | 4440 | |
| S | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 130 | 120 | 90 | 115 | 100 | 80 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 130 | 120 | 90 | 115 | 100 | 80 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 170 | 130 | 90 | 150 | 115 | 80 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 230 | 170 | 120 | 200 | 150 | 100 | – | – | – | – | – | – | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – | 525 | 425 | 300 | – | – | – | 390 | 300 | 230 | – | – | – | – | – | – | 460 | 380 | 310 | – | – | – | – | – | – |
Application Examples
| insert style | cutting diameter | max ramp angle to non-cutting corner tangent | max ramp angle to steel body interference | DH min (min hole diameter) | DHI min (min flat-bottomed hole diameter) | max diameter (no flat bottom) |
| Mill-1, 10mm | 12 | not recommended | not recommended | not recommended | not recommended | not recommended |
| Mill-1, 10mm | 16 | 9,7° | 12,3° | 19,50 | 28,73 | 32 |
| Mill-1, 10mm | 18 | 7,6° | 9,6° | 23,29 | 32,68 | 63 |
| Mill-1, 10mm | 20 | 6,2° | 8,6° | 27,25 | 36,63 | 40 |
| Mill-1, 10mm | 22 | 5,2° | 7,0° | 31,25 | 40,63 | 44 |
| Mill-1, 10mm | 25 | 4,2° | 5,3° | 37,26 | 46,62 | 50 |
| Mill-1, 10mm | 28 | 3,5° | 4,3° | 43,26 | 52,62 | 56 |
| Mill-1, 10mm | 32 | 2,8° | 3,3° | 51,27 | 60,62 | 64 |
| Mill-1, 10mm | 40 | 2,0° | 2,3° | 67,30 | 76,61 | 80 |
| Mill-1, 10mm | 42 | 1,9° | 2,1° | 71,32 | 80,60 | 82 |
| Mill-1, 10mm | 50 | 1,5° | 1,6° | 87,53 | 96,86 | 100 |
| Mill-1, 10mm | 63 | 1,2° | 1,2° | 113,54 | 122,86 | 126 |
| Mill-1, 10mm | 80 | 0,9° | 0,9° | 147,54 | 156,85 | 160 |
| Mill-1, 10mm | 100 | 0,7° | 0,7° | 187,54 | 196,85 | 200 |
Application Examples
| insert style | cutting diameter | max ramp angle to non-cutting corner tangent | max ramp angle to steel body interference | DH min (min hole diameter) | DHI min (min flat-bottomed hole diameter) | max diameter (no flat bottom) |
| Mill-1, 10mm | .500 | not recommended | not recommended | not recommended | not recommended | not recommended |
| Mill-1, 10mm | .625 | 9.9° | 12.5° | .758 | 1.121 | 1.250 |
| Mill-1, 10mm | .750 | 6.8° | 9.7° | .998 | 1.367 | 1.500 |
| Mill-1, 10mm | .875 | 5.1° | 6.8° | 1.248 | 1.617 | 1.750 |
| Mill-1, 10mm | 1.000 | 4.1° | 5.1° | 1.498 | 1.867 | 2.000 |
| Mill-1, 10mm | 1.100 | 3.5° | 4.3° | 1.698 | 2.067 | 2.200 |
| Mill-1, 10mm | 1.250 | 2.9° | 3.4° | 1.999 | 2.367 | 2.500 |
| Mill-1, 10mm | 1.500 | 2.2° | 2.4° | 2.499 | 2.867 | 3.000 |
| Mill-1, 10mm | 2.000 | 1.2° | 1.6° | 3.509 | 3.876 | 4.000 |
| Mill-1, 10mm | 2.500 | 1.2° | 1.2° | 4.509 | 4.876 | 5.000 |
| Mill-1, 10mm | 3.000 | 0.9° | 1.0° | 5.509 | 5.876 | 6.000 |
| Mill-1, 10mm | 4.000 | 0.7° | 0.7° | 7.509 | 7.876 | 8.000 |
