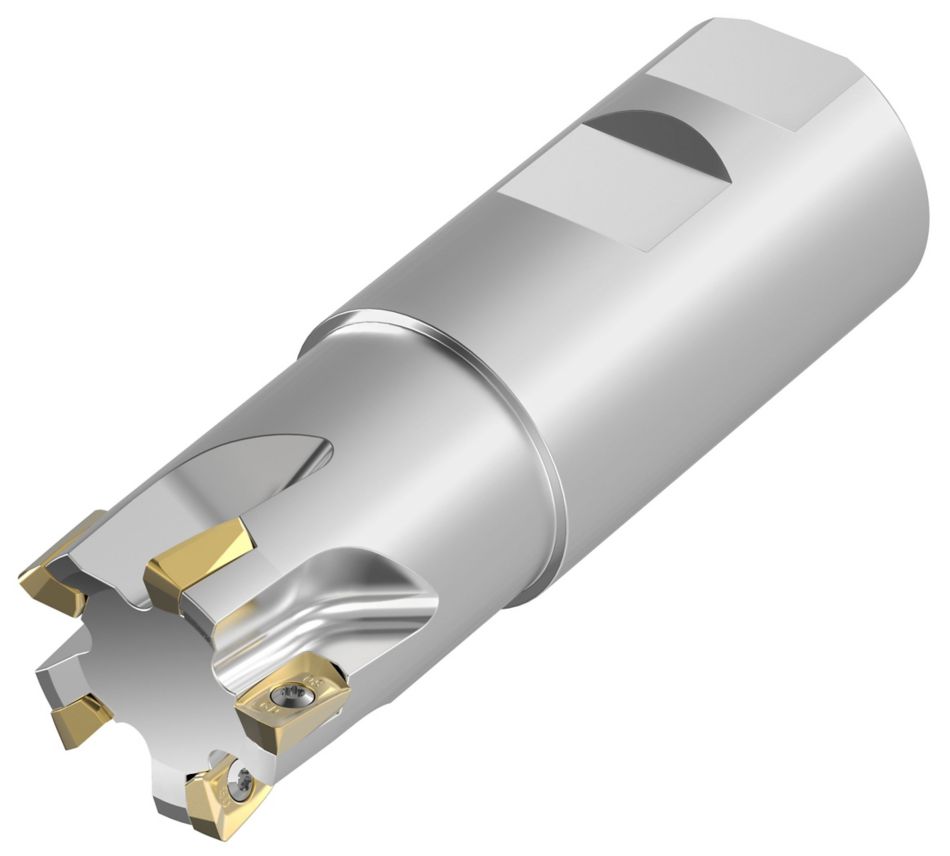

Mill 1-10™ End Mills • Weldon Shank • Inch

Indexable End Mills

Features and benefits

  • Mill 0° walls.

  • Aggressive ramping rates.

  • Generates superior surface finish.

  • High RPM capabilities.

Uses and application

  • Face MillingFace Milling
  • Helical MillingHelical Milling
  • Ramping: BlankRamping: Blank
  • Slotting: Square EndSlotting: Square End
  • Side Milling/Shoulder Milling: Square EndSide Milling/Shoulder Milling: Square End
  • PocketingPocketing
  • Shank - Cylindrical Weldon 2 FlatShank - Cylindrical Weldon 2 Flat
  • Milling - Through CoolantMilling - Through Coolant

Workpiece Materials

P Steel
M Stainless Steel
K Cast Iron
N Non-Ferrous
S High-Temp Alloys
H Hardened Materials
Indexable End Mills
Filters and Columns
Select Filters
Filters
Filters
Filters
View filters in
Metric
Inch
Key Filters
Workpiece Material
Workpiece Material
  • P Steel (9)
    • P0
      Low-Carbon Steels, Long Chipping C < .25%; <125 HB; <530 N/mm^2 UTS
      (9)
    • P1
      Low-Carbon Steels, Short Chipping C < .25%; <125 HB; <530 N/mm^2 UTS
      (9)
    • P2
      Medium and High Carbon Steels C < .25%; <220 HB; <25 HRC; >530 N/mm^2 UTS
      (9)
    • P3
      Alloy Steels & Tool Steels C > .25%; <330 HB; <35 HRC; 600-850 N/mm^2 UTS
      (9)
    • P4
      Alloy Steels & Tool Steels C > .25%; 350-420 HB; 35-43 HRC; 850-1400 N/mm^2 UTS
      (9)
    • P5
      Ferritic, Martensitic, and PH Stainless Steels <330 HB; <35 HRC; 600-900 N/mm^2 UTS
      (9)
    • P6
      High Strength Ferritic, Martensitic, and PH Stainless Steels 350-450 HB; 35-43 HRC; 900-2400 N/mm^2 UTS
      (9)
  • M Stainless Steel (9)
    • M1
      Austenitic Stainless Steel 130-200 HB; <600 N/mm^2 UTS
      (9)
    • M2
      High Strength Austenitic Stainless and Cast Stainless Steels 150-230 HB; <25 HRC; >600 N/mm^2 UTS
      (9)
    • M3
      Duplex Stainless Steel 135-275 HB; <30 HRC; 500-1200 N/mm^2 UTS
      (9)
  • K Cast Iron (9)
    • K1
      Gray Cast Iron 120-290 HB; <32 HRC; 125-500 N/mm^2 UTS
      (9)
    • K2
      Low and Medium Strength CGI and Ductile Irons 130-260 HB; <28 HRC; <600 N/mm^2 UTS
      (9)
    • K3
      High Strength Ductile and Austempered Ductile Iron 180-350 HB; <43 HRC; >600 N/mm^2 UTS
      (9)
  • N Non-Ferrous Materials (9)
    • N1
      Wrought Aluminum
      (9)
    • N2
      Low-Silicon Aluminum Alloys and Magnesium Alloys Si <12.2%
      (9)
    • N3
      High-Silicon Aluminum Alloys Si >12.2%
      (9)
  • S High-Temp Alloys (9)
    • S1
      Iron-Based, Heat-Resistant Alloys 160-260 HB; 25-48 HRC; 500-1200 N/mm^2 UTS
      (9)
    • S2
      Cobalt-Based, Heat-Resistant Alloys 250-450 HB; 25-48 HRC; 1000-1450 N/mm^2 UTS
      (9)
    • S3
      Nickel-Based, Heat Resistant Alloys 160-450 HB; <48 HRC; 600-1700 N/mm^2 UTS
      (9)
    • S4
      Titanium and Titanium Alloys 300-400 HB; 33-43 HRC; 900-1600 N/mm^2 UTS
      (9)
  • H Hardened Materials (9)
    • H1
      Hardened Materials 44-48 HRC
      (9)
Select First Choice
  • US (5)
Applications
Applications
  • Face Milling Face Milling (9)
  • Pocket Pocket (9)
  • Pocket Helical Pocket Helical (9)
  • Pocket Milling Pocket Milling (9)
  • Ramping Ramping (9)
  • Shoulder Milling Shoulder Milling (9)
  • Shoulder Roughing Shoulder Roughing (9)
  • Shoulder Square End Shoulder Square End (9)
  • Slot Milling Slot Milling (5)
  • Slot Square End Slot Square End (5)
Cutting Diameter
Cutting Diameter
  • 0.625 in (1)
  • 0.75 in (2)
  • 1.0 in (4)
  • 1.25 in (2)
Cutting Diameter Min to Cutting Diameter Max
Cutting Diameter
Cutting Diameter
  • 15.875 mm (1)
  • 19.05 mm (2)
  • 25.401 mm (4)
  • 31.75 mm (2)
Cutting Diameter Min to Cutting Diameter Max
Cutting Length
Cutting Length
  • 9.951 mm (2)
  • 10.025 mm (4)
  • 10.05 mm (1)
  • 10.101 mm (2)
Cutting Length Min to Cutting Length Max
Cutting Length
Cutting Length
  • 0.392 in (2)
  • 0.395 in (4)
  • 0.396 in (1)
  • 0.398 in (2)
Cutting Length Min to Cutting Length Max
Reach
Reach
  • 1.0 in (1)
  • 1.1 in (2)
  • 1.25 in (4)
  • 1.6 in (2)
Reach Min to Reach Max
Reach
Reach
  • 25.401 mm (1)
  • 27.951 mm (2)
  • 31.75 mm (4)
  • 40.651 mm (2)
Reach Min to Reach Max
Number of Flutes
Number of Flutes
  • 2 (2)
  • 3 (3)
  • 4 (3)
  • 5 (1)
Cutting Edges Per Insert
Cutting Edges Per Insert
  • 1.0 (9)
  • 2.0 (9)
Cutting Edges Per Insert Min to Cutting Edges Per Insert Max
Corner configuration
Corner Radius
Corner Radius
  • 0.008 in (9)
  • 0.016 in (9)
  • 0.031 in (9)
  • 0.039 in (9)
  • 0.047 in (9)
  • 0.063 in (9)
  • 0.079 in (9)
  • 0.094 in (9)
  • 0.122 in (9)
  • 0.157 in (9)
Corner Radius Min to Corner Radius Max
Corner Radius
Corner Radius
  • 0.2 mm (9)
  • 0.4 mm (9)
  • 0.8 mm (9)
  • 1.0 mm (9)
  • 1.201 mm (9)
  • 1.6 mm (9)
  • 2.0 mm (9)
  • 2.375 mm (9)
  • 3.1 mm (9)
  • 4.0 mm (9)
Corner Radius Min to Corner Radius Max
Application
Grade Of Cutting Tool
Grade Of Cutting Tool
  • K313 (9)
  • KC410M (9)
  • KC422M (9)
  • KC510M (9)
  • KC520M (9)
  • KC522M (9)
  • KC725M (9)
  • KCK15 (9)
  • KCK20B (9)
  • KCKP10 (9)
  • KCPK30 (9)
  • KCPM20 (9)
  • KCPM40 (9)
  • KCSM30 (9)
  • KCSM40 (9)
  • KD1410 (9)
Maximum Ramp Angle
Maximum Ramp Angle
  • 2.5 (2)
  • 4.0 (4)
  • 6.5 (2)
  • 9.5 (1)
Maximum Ramp Angle Min to Maximum Ramp Angle Max
Front-End
Insert Shape
Insert Shape
  • E-PARALLELOGRAM 70 (9)
  • X-PARALLELOGRAM 70 (9)
  • X-PARALLELOGRAM 75 (9)
Back-End
Back-End Diameter
Back-End Diameter
  • 19.0 mm (2)
  • 19.05 mm (3)
  • 25.401 mm (2)
  • 31.75 mm (2)
Back-End Diameter Min to Back-End Diameter Max
Back-End Diameter
Back-End Diameter
  • 0.748 in (2)
  • 0.75 in (3)
  • 1.0 in (2)
  • 1.25 in (2)
Back-End Diameter Min to Back-End Diameter Max
No filters matching ""
Change the visible columns with any of the parameters listed below. A maximum of 7 columns can be displayed.
  • Shoulder Mills
  • Mill 1-10™ • Two Cutting Edges • Ap1 max 10mm
Displaying 1- 9 of 9 results
Select Columns
Select Filters
Metric
Inch
Show
Metric
Inch
SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice [D1] Effective Cutting Diameter [D1] Effective Cutting Diameter [D] Adapter / Shank / Bore Diameter [D] Adapter / Shank / Bore Diameter [L] Overall Length [L] Overall Length [L2] Head Length [L2] Head Length [AP1MAX] 1st Maximum Cutting Depth [AP1MAX] 1st Maximum Cutting Depth Number of Inserts Maximum Ramping Angle Weight Pounds Max RPM
3742552 M1D062E1002W075L100 M1D062E1002W075L100   15.8750 .6250 19.05 .75 76.9600 3.030 25.4000 1.000 10.0600 .3960 2 9.500 0.28 50300
    List price:
    $380.35 /each
    Your price:
    3742553 M1D075E1002W075L110 M1D075E1002W075L110   19.0500 .7500 19.05 .75 79.5000 3.130 27.9400 1.100 10.1100 .3980 2 6.500 0.30 45900
      List price:
      $396.47 /each
      Your price:
      3742554 M1D075E1003W075L110 M1D075E1003W075L110   19.0500 .7500 19.05 .75 79.5100 3.130 27.9400 1.100 10.1100 .3980 3 6.500 0.30 45900
        List price:
        $406.17 /each
        Your price:
        3897781 M1D100E1003W075L125 M1D100E1003W075L125   25.4000 1.000 19.0 .75 83.3200 3.280 31.7500 1.250 10.0300 .3950 3 4.000 0.40 39700
          List price:
          $422.25 /each
          Your price:
          3742555 M1D100E1003W100L125 M1D100E1003W100L125   25.4000 1.000 25.4 1.0 89.6700 3.530 31.7500 1.250 10.0300 .3950 3 4.000 0.65 39700
            List price:
            $422.25 /each
            Your price:
            3897782 M1D100E1004W075L125 M1D100E1004W075L125   25.4000 1.000 19.0 .75 83.3200 3.280 31.7500 1.250 10.0300 .3950 4 4.000 0.40 39700
              List price:
              $431.90 /each
              Your price:
              3742556 M1D100E1004W100L125 M1D100E1004W100L125   25.4000 1.000 25.4 1.0 89.6700 3.530 31.7500 1.250 10.0300 .3950 4 4.000 0.64 39700
                List price:
                $431.90 /each
                Your price:
                3742557 M1D125E1004W125L160 M1D125E1004W125L160   31.7500 1.250 31.75 1.25 98.5600 3.880 40.6400 1.600 9.9600 .3920 4 2.500 1.12 35500
                  List price:
                  $449.68 /each
                  Your price:
                  3742558 M1D125E1005W125L160 M1D125E1005W125L160   31.7500 1.250 31.75 1.25 98.5600 3.880 40.6400 1.600 9.9600 .3920 5 2.500 1.11 35500
                    List price:
                    $457.69 /each
                    Your price:
