Indexable Helical End Mills
Indexable Helical End Mills
Indexable Helical End Mills
Indexable Helical End Mills

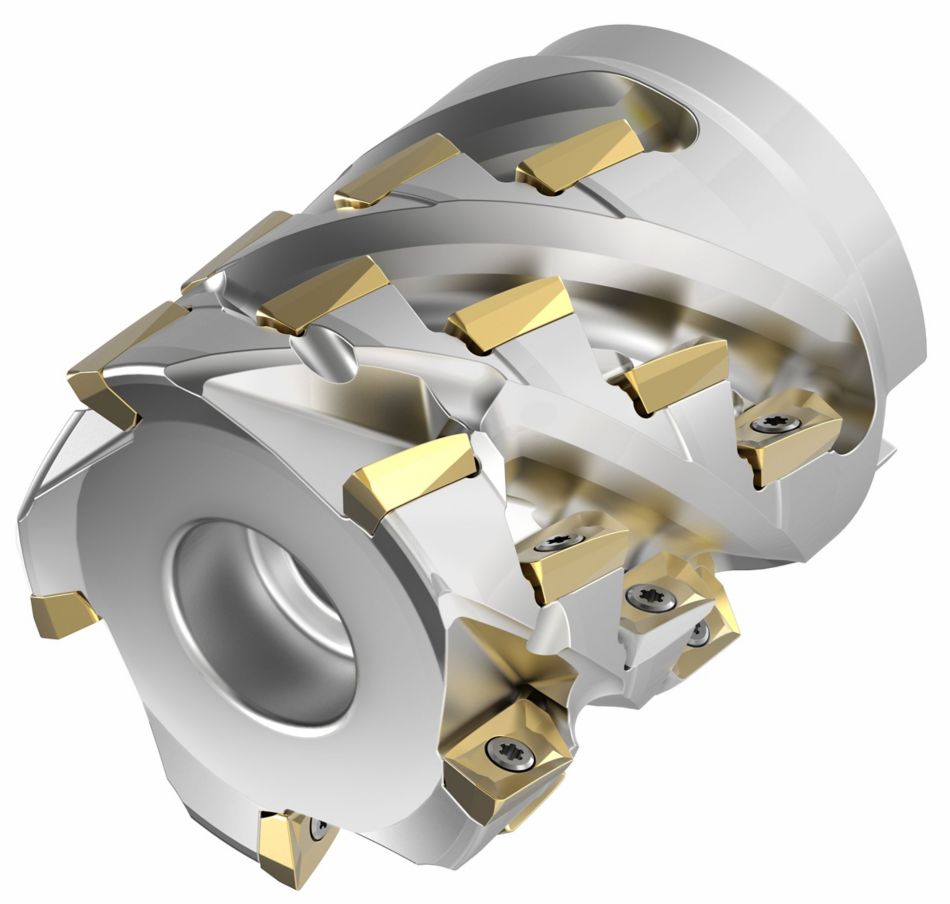

Mill 1-10™ Helical End Mills • Shell Mills • Metric

Indexable Helical End Mills

Features and benefits

  • Aggressive ramping rates.

  • Generates superior surface finish.

  • Mill 90° walls.

Uses and application

  • Face MillingFace Milling
  • Helical MillingHelical Milling
  • Ramping: BlankRamping: Blank
  • Slotting: Square EndSlotting: Square End
  • Side Milling/Shoulder Milling: Square EndSide Milling/Shoulder Milling: Square End
  • PocketingPocketing
  • Milling - Side and FaceMilling - Side and Face
  • Milling - Through CoolantMilling - Through Coolant

Workpiece Materials

P Steel
M Stainless Steel
K Cast Iron
N Non-Ferrous
S High-Temp Alloys
H Hardened Materials
Indexable Helical End Mills
Filters and Columns
Select Filters
Filters
Filters
Filters
View filters in
Metric
Inch
Key Filters
Workpiece Material
Workpiece Material
  • P Steel (4)
    • P0
      Low-Carbon Steels, Long Chipping C < .25%; <125 HB; <530 N/mm^2 UTS
      (4)
    • P1
      Low-Carbon Steels, Short Chipping C < .25%; <125 HB; <530 N/mm^2 UTS
      (4)
    • P2
      Medium and High Carbon Steels C < .25%; <220 HB; <25 HRC; >530 N/mm^2 UTS
      (4)
    • P3
      Alloy Steels & Tool Steels C > .25%; <330 HB; <35 HRC; 600-850 N/mm^2 UTS
      (4)
    • P4
      Alloy Steels & Tool Steels C > .25%; 350-420 HB; 35-43 HRC; 850-1400 N/mm^2 UTS
      (4)
    • P5
      Ferritic, Martensitic, and PH Stainless Steels <330 HB; <35 HRC; 600-900 N/mm^2 UTS
      (4)
    • P6
      High Strength Ferritic, Martensitic, and PH Stainless Steels 350-450 HB; 35-43 HRC; 900-2400 N/mm^2 UTS
      (4)
  • M Stainless Steel (4)
    • M1
      Austenitic Stainless Steel 130-200 HB; <600 N/mm^2 UTS
      (4)
    • M2
      High Strength Austenitic Stainless and Cast Stainless Steels 150-230 HB; <25 HRC; >600 N/mm^2 UTS
      (4)
    • M3
      Duplex Stainless Steel 135-275 HB; <30 HRC; 500-1200 N/mm^2 UTS
      (4)
  • K Cast Iron (4)
    • K1
      Gray Cast Iron 120-290 HB; <32 HRC; 125-500 N/mm^2 UTS
      (4)
    • K2
      Low and Medium Strength CGI and Ductile Irons 130-260 HB; <28 HRC; <600 N/mm^2 UTS
      (4)
    • K3
      High Strength Ductile and Austempered Ductile Iron 180-350 HB; <43 HRC; >600 N/mm^2 UTS
      (4)
  • N Non-Ferrous Materials (4)
    • N1
      Wrought Aluminum
      (4)
    • N2
      Low-Silicon Aluminum Alloys and Magnesium Alloys Si <12.2%
      (4)
    • N3
      High-Silicon Aluminum Alloys Si >12.2%
      (4)
  • S High-Temp Alloys (4)
    • S1
      Iron-Based, Heat-Resistant Alloys 160-260 HB; 25-48 HRC; 500-1200 N/mm^2 UTS
      (4)
    • S2
      Cobalt-Based, Heat-Resistant Alloys 250-450 HB; 25-48 HRC; 1000-1450 N/mm^2 UTS
      (4)
    • S3
      Nickel-Based, Heat Resistant Alloys 160-450 HB; <48 HRC; 600-1700 N/mm^2 UTS
      (4)
    • S4
      Titanium and Titanium Alloys 300-400 HB; 33-43 HRC; 900-1600 N/mm^2 UTS
      (4)
  • H Hardened Materials (4)
    • H1
      Hardened Materials 44-48 HRC
      (4)
Select First Choice
  • CN (3)
  • DE (3)
  • GB (3)
  • US (1)
Applications
Applications
  • Face Milling Face Milling (4)
  • Pocket Pocket (4)
  • Pocket Helical Pocket Helical (4)
  • Pocket Milling Pocket Milling (4)
  • Ramping Ramping (4)
  • Shoulder Milling Shoulder Milling (4)
  • Shoulder Roughing Shoulder Roughing (4)
  • Shoulder Square End Shoulder Square End (4)
  • Slot Milling Slot Milling (2)
  • Slot Square End Slot Square End (2)
Cutting Diameter
Cutting Diameter
  • 1.575 in (2)
  • 1.969 in (2)
Cutting Diameter Min to Cutting Diameter Max
Cutting Diameter
Cutting Diameter
  • 40.0 mm (2)
  • 50.0 mm (2)
Cutting Diameter Min to Cutting Diameter Max
Cutting Length
Cutting Length
  • 35.926 mm (1)
  • 35.95 mm (1)
  • 44.325 mm (2)
Cutting Length Min to Cutting Length Max
Cutting Length
Cutting Length
  • 1.414 in (1)
  • 1.415 in (1)
  • 1.745 in (2)
Cutting Length Min to Cutting Length Max
Reach
Reach
  • 1.969 in (2)
  • 2.362 in (2)
Reach Min to Reach Max
Reach
Reach
  • 50.0 mm (2)
  • 60.0 mm (2)
Reach Min to Reach Max
Number of Flutes
Number of Flutes
  • 3 (2)
  • 5 (2)
Cutting Edges Per Insert
Cutting Edges Per Insert
  • 1.0 (4)
  • 2.0 (4)
Cutting Edges Per Insert Min to Cutting Edges Per Insert Max
Corner configuration
Corner Radius
Corner Radius
  • 0.008 in (4)
  • 0.016 in (4)
  • 0.031 in (4)
  • 0.039 in (4)
  • 0.047 in (4)
  • 0.063 in (4)
  • 0.079 in (4)
  • 0.094 in (4)
  • 0.122 in (4)
  • 0.157 in (4)
Corner Radius Min to Corner Radius Max
Corner Radius
Corner Radius
  • 0.2 mm (4)
  • 0.4 mm (4)
  • 0.8 mm (4)
  • 1.0 mm (4)
  • 1.201 mm (4)
  • 1.6 mm (4)
  • 2.0 mm (4)
  • 2.375 mm (4)
  • 3.1 mm (4)
  • 4.0 mm (4)
Corner Radius Min to Corner Radius Max
Application
Grade Of Cutting Tool
Grade Of Cutting Tool
  • K313 (4)
  • KC410M (4)
  • KC422M (4)
  • KC510M (4)
  • KC520M (4)
  • KC522M (4)
  • KC725M (4)
  • KCK15 (4)
  • KCK20B (4)
  • KCKP10 (4)
  • KCPK30 (4)
  • KCPM20 (4)
  • KCPM40 (4)
  • KCSM30 (4)
  • KCSM40 (4)
  • KD1410 (4)
Maximum Ramp Angle
Maximum Ramp Angle
  • 1.5 (2)
  • 2.0 (2)
Maximum Ramp Angle Min to Maximum Ramp Angle Max
Front-End
Insert Shape
Insert Shape
  • E-PARALLELOGRAM 70 (4)
  • X-PARALLELOGRAM 70 (4)
  • X-PARALLELOGRAM 75 (4)
Back-End
Back-End Diameter
Back-End Diameter
  • 16.0 mm (2)
  • 22.0 mm (2)
Back-End Diameter Min to Back-End Diameter Max
Back-End Diameter
Back-End Diameter
  • 0.63 in (2)
  • 0.866 in (2)
Back-End Diameter Min to Back-End Diameter Max
No filters matching ""
Change the visible columns with any of the parameters listed below. A maximum of 7 columns can be displayed.
Displaying 1- 4 of 4 results
Select Columns
Select Filters
Metric
Inch
Show
Metric
Inch

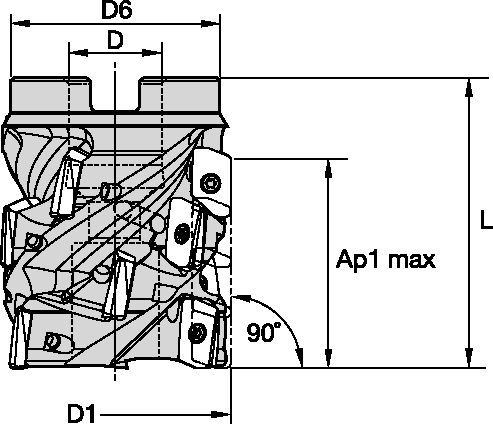

SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice [D1] Effective Cutting Diameter [D1] Effective Cutting Diameter [D] Adapter / Shank / Bore Diameter [D] Adapter / Shank / Bore Diameter [D6] Hub Diameter [D6] Hub Diameter [L] Overall Length [L] Overall Length [AP1MAX] 1st Maximum Cutting Depth [AP1MAX] 1st Maximum Cutting Depth Number of Inserts [Z] Number of Flutes Maximum Ramping Angle Weight Kilograms Max RPM
3773814 M1H40T03R50A16ED10C12 M1H40T03R50A16ED10C12   40.0000 1.574 16.0 .6299 37.0000 1.457 50.0000 1.968 35.9200 1.414 12 3 2.000 0.27 26200
    List price:
    $1,079.78 /each
    Your price:
    3773815 M1H40T05R50A16ED10C20 M1H40T05R50A16ED10C20   40.0000 1.574 16.0 .6299 37.0000 1.457 50.0000 1.968 35.9400 1.415 20 5 2.000 0.26 26200
      List price:
      $1,385.99 /each
      Your price:
      3773816 M1H50T03R60A22ED10C15 M1H50T03R60A22ED10C15   50.0000 1.968 22.0 .8661 44.0000 1.732 60.0000 2.362 44.3300 1.745 15 3 1.500 0.62 23400
        List price:
        $1,171.65 /each
        Your price:
        3773817 M1H50T05R60A22ED10C25 M1H50T05R60A22ED10C25   50.0000 1.968 22.0 .8661 44.0000 1.732 60.0000 2.362 44.3300 1.745 25 5 1.500 0.55 23400
          List price:
          $1,676.07 /each
          Your price:
