RSM II • Radiused • Multi-Flute • Internal Coolant • Short • Plain Shank • Metric
Product Similar To:
RSM II • Radiused • Multi-Flute • Internal Coolant • Short • Plain Shank • Metric
RSM II Solid Carbide End Mill for Finishing of Stainless Steel and High Temperature Alloys
Material Number100075128
Contact our sales team to discover all of your pricing options
Features and benefits
- RSM II solid carbide end mills feature unequal flute spacing for chatter-free machining.
- Eccentric relief grind for higher cutting edge stability and higher feed rates.
- Designed for high-speed peel milling strategies with secure chip formation and chip evacuation in deep cavities.
Through Coolant - Solid End Mill
Helix Angle: 36°

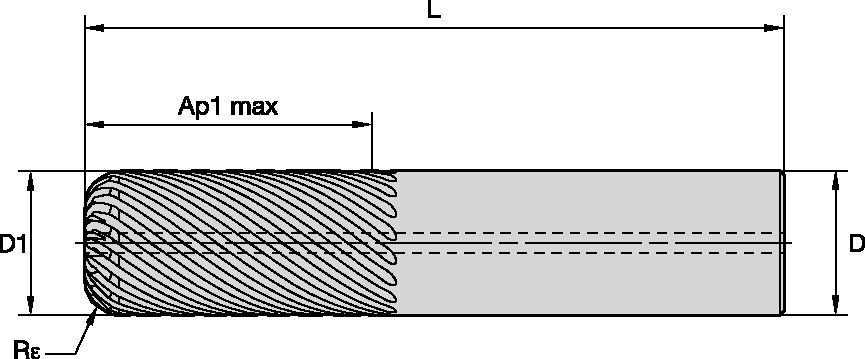

Tool Dimensions: Flute Configuration: X (variable)
Corner Style: Corner Radius
Side Milling/Shoulder Milling: Fine Finishing
Side Milling/Shoulder Milling: Finishing
| End Mill Tolerances | |||
| D1 | tolerance e8 | D | tolerance h6 + / - |
| ≤3 | -0,014/-0,028 | ≤3 | +0/-0,006 |
| -0,020/-0,038 | +0/-0,008 | ||
| -0,025/-0,047 | +0/-0,009 | ||
| -0,032/-0,059 | +0/-0,011 | ||
| -0,040/-0,073 | +0/-0,013 | ||
 | KCSM15A | Recommended feed per tooth (fz = mm/th) | |||||||||
| Side Milling | Cutting Speed | D1 | |||||||||
| Material | ap | ae (mm) | Min | Max | mm | 10,0 | 12,0 | 16,0 | 20,0 | ||
| P | 4 | Ap max | 0,2 | 135 | – | 495 | Fz | 0,092 | 0,106 | 0,131 | 0,150 |
| 5 | Ap max | 0,2 | 90 | – | 330 | Fz | 0,082 | 0,095 | 0,119 | 0,137 | |
| M | 1 | Ap max | 0,2 | 135 | – | 379,5 | Fz | 0,103 | 0,119 | 0,148 | 0,172 |
| 2 | Ap max | 0,2 | 90 | – | 264 | Fz | 0,082 | 0,095 | 0,119 | 0,137 | |
| 3 | Ap max | 0,2 | 90 | – | 231 | Fz | 0,069 | 0,079 | 0,097 | 0,110 | |
| S | 1 | Ap max | 0,2 | 75 | – | 297 | Fz | 0,103 | 0,119 | 0,148 | 0,172 |
| 2 | Ap max | 0,2 | 37,5 | – | 165 | Fz | 0,054 | 0,063 | 0,079 | 0,092 | |
| 3 | Ap max | 0,2 | 37,5 | – | 132 | Fz | 0,054 | 0,063 | 0,079 | 0,092 | |
| 4 | Ap max | 0,2 | 75 | – | 198 | Fz | 0,076 | 0,088 | 0,109 | 0,126 | |
| H | 1 | Ap max | 0,2 | 120 | – | 462 | Fz | 0,092 | 0,106 | 0,131 | 0,150 |
| 2 | Ap max | 0,2 | 105 | – | 396 | Fz | 0,069 | 0,079 | 0,097 | 0,110 | |
| KCSM15A | Recommended feed per tooth (fz = mm/th) | |||||||||
| Side Milling | Cutting Speed | D1 | |||||||||
| Material | ap | ae (mm) | Min | Max | mm | 10,0 | 12,0 | 16,0 | 20,0 | ||
| P | 4 | Ap max | 0,8 | 270 | – | 450 | Fz | 0,081 | 0,094 | 0,115 | 0,132 |
| 5 | Ap max | 0,8 | 180 | – | 300 | Fz | 0,073 | 0,084 | 0,105 | 0,121 | |
| M | 1 | Ap max | 0,8 | 270 | – | 345 | Fz | 0,091 | 0,105 | 0,131 | 0,152 |
| 2 | Ap max | 0,8 | 180 | – | 240 | Fz | 0,073 | 0,084 | 0,105 | 0,121 | |
| 3 | Ap max | 0,8 | 180 | – | 210 | Fz | 0,061 | 0,070 | 0,085 | 0,097 | |
| S | 1 | Ap max | 0,8 | 150 | – | 270 | Fz | 0,091 | 0,105 | 0,131 | 0,152 |
| 2 | Ap max | 0,8 | 75 | – | 150 | Fz | 0,048 | 0,056 | 0,070 | 0,081 | |
| 3 | Ap max | 0,8 | 75 | – | 120 | Fz | 0,048 | 0,056 | 0,070 | 0,081 | |
| 4 | Ap max | 0,8 | 150 | – | 180 | Fz | 0,067 | 0,077 | 0,096 | 0,111 | |
| H | 1 | Ap max | 0,8 | 240 | – | 420 | Fz | 0,081 | 0,094 | 0,115 | 0,132 |
| 2 | Ap max | 0,8 | 210 | – | 360 | Fz | 0,061 | 0,070 | 0,085 | 0,097 | |
