Milling Inserts
Milling Inserts
Milling Inserts
Milling Inserts

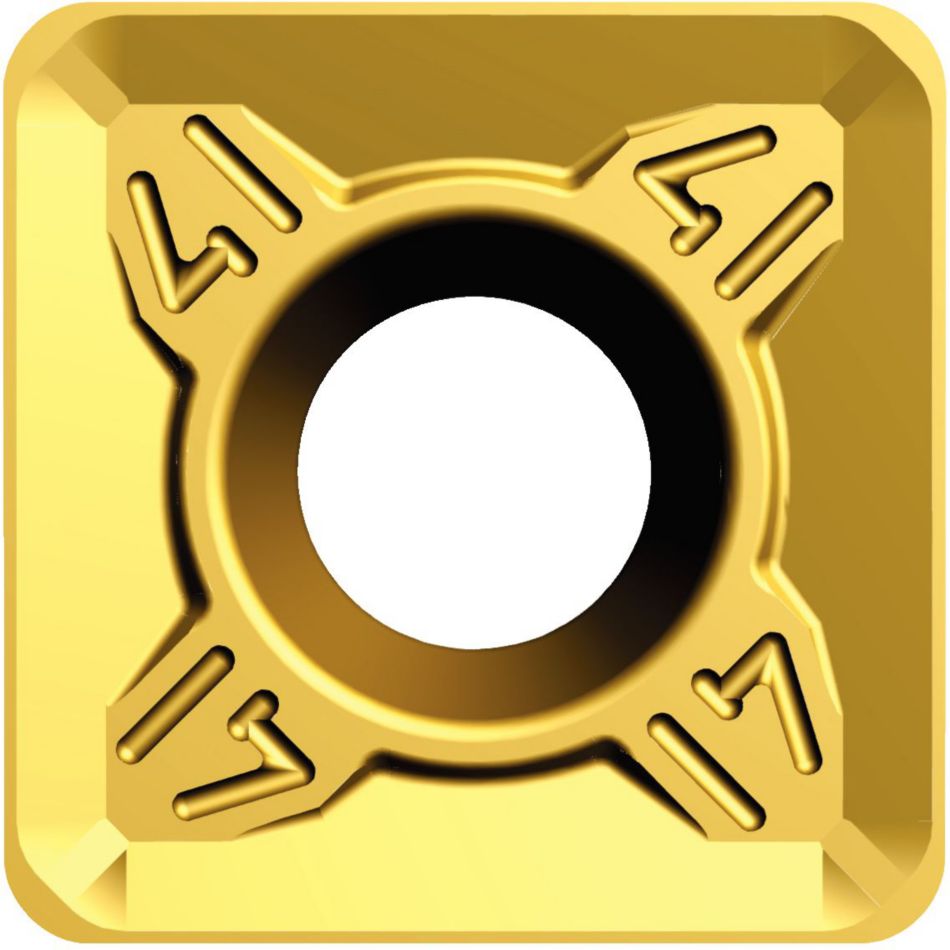

SDMT12-41 • Stellram

Milling Inserts

Workpiece Materials

P Steel
M Stainless Steel
K Cast Iron
S High-Temp Alloys
Milling Inserts
Filters and Columns
Select Filters
Filters
Filters
Filters
View filters in
Metric
Inch
Key Filters
Workpiece Material
Workpiece Material
  • P Steel (4)
    • P0
      Low-Carbon Steels, Long Chipping C < .25%; <125 HB; <530 N/mm^2 UTS
      (3)
    • P1
      Low-Carbon Steels, Short Chipping C < .25%; <125 HB; <530 N/mm^2 UTS
      (3)
    • P2
      Medium and High Carbon Steels C < .25%; <220 HB; <25 HRC; >530 N/mm^2 UTS
      (3)
    • P3
      Alloy Steels & Tool Steels C > .25%; <330 HB; <35 HRC; 600-850 N/mm^2 UTS
      (3)
    • P4
      Alloy Steels & Tool Steels C > .25%; 350-420 HB; 35-43 HRC; 850-1400 N/mm^2 UTS
      (2)
    • P5
      Ferritic, Martensitic, and PH Stainless Steels <330 HB; <35 HRC; 600-900 N/mm^2 UTS
      (3)
    • P6
      High Strength Ferritic, Martensitic, and PH Stainless Steels 350-450 HB; 35-43 HRC; 900-2400 N/mm^2 UTS
      (3)
  • M Stainless Steel (3)
    • M1
      Austenitic Stainless Steel 130-200 HB; <600 N/mm^2 UTS
      (3)
    • M2
      High Strength Austenitic Stainless and Cast Stainless Steels 150-230 HB; <25 HRC; >600 N/mm^2 UTS
      (3)
    • M3
      Duplex Stainless Steel 135-275 HB; <30 HRC; 500-1200 N/mm^2 UTS
      (3)
  • K Cast Iron (1)
    • K1
      Gray Cast Iron 120-290 HB; <32 HRC; 125-500 N/mm^2 UTS
      (1)
    • K2
      Low and Medium Strength CGI and Ductile Irons 130-260 HB; <28 HRC; <600 N/mm^2 UTS
      (1)
    • K3
      High Strength Ductile and Austempered Ductile Iron 180-350 HB; <43 HRC; >600 N/mm^2 UTS
      (1)
  • S High-Temp Alloys (3)
    • S1
      Iron-Based, Heat-Resistant Alloys 160-260 HB; 25-48 HRC; 500-1200 N/mm^2 UTS
      (3)
    • S2
      Cobalt-Based, Heat-Resistant Alloys 250-450 HB; 25-48 HRC; 1000-1450 N/mm^2 UTS
      (3)
    • S3
      Nickel-Based, Heat Resistant Alloys 160-450 HB; <48 HRC; 600-1700 N/mm^2 UTS
      (3)
    • S4
      Titanium and Titanium Alloys 300-400 HB; 33-43 HRC; 900-1600 N/mm^2 UTS
      (3)
Applications
Applications
  • ID Thread Turning ID Thread Turning (3)
Application
Grade Of Cutting Tool
Grade Of Cutting Tool
  • KCSM40 (1)
  • MP91M (1)
  • SP6519 (1)
  • X500 (1)
No filters matching ""
Change the visible columns with any of the parameters listed below. A maximum of 7 columns can be displayed.
Displaying 1- 4 of 4 results
Select Columns
Select Filters
Metric
Inch
Show
Metric
Inch
SAP Material Number ISO Catalog Number ANSI Catalog Number Grade [D] Insert IC Size [D] Insert IC Size [S] Insert Thickness [S] Insert Thickness [L10] Insert Cutting Edge Length [L10] Insert Cutting Edge Length [Rε] Corner Radius [Rε] Corner Radius Average Chip Thickness [HM] Average Chip Thickness [HM] Cutting Edges per Insert
5657271 SDMT120412EN41 SDMT120412EN41 X500 12.7000 .5000 4.7600 .1874 12.7000 .5000 1.2000 .0468 0.0500 .0020 4
    List price:
    $25.16 /each
    Your price:
    5665740 SDMT120412EN41 SDMT120412EN41 SP6519 12.7000 .5000 4.7600 .1874 12.7000 .5000 1.2000 .0468 0.0500 .0020 4
      List price:
      $19.63 /each
      Your price:
      5656533 SDMT120412EN41 SDMT120412EN41 MP91M 12.7000 .5000 4.7600 .1874 12.7000 .5000 1.2000 .0468 0.0500 .0020 4
        List price:
        $18.71 /each
        Your price:
        6178239 SDMT120412EN41 SDMT120412EN41 KCSM40 12.7000 .5000 4.7600 .1874 12.7000 .5000 1.2000 .0468 0.0500 .0020 4
          List price:
          $24.67 /each
          Your price:
          List price:
          Discount: %
          Your price:
          Replacement This item is no longer available
          Replacement Product Please contact customer service for assistance

          Grades

          • KCSM40
            KCSM40

            Coated carbide grade with an advanced PVD TiAlN/TiN coating. Premium substrate with newly developed binder composition. KCSM40 is a high-performance grade for titanium, super alloys, and stainless steel. High thermal shock resistance of the substrate makes this grade ideal for wet machining. First choice for roughing and unsuitable cutting conditions.

            P Steel
            S High-Temp Alloys
            M Stainless Steel
          • MP91M
            MP91M

            CVD-coated carbide grade with TiN/MT-TiCN/Al2O3. Tough substrate in combination with wear resistant for roughing and semi-finishing of steel, cast iron, and hardened materials.

            P Steel
            K Cast Iron
          • SP6519
            SP6519

            Coated carbide grade with PVD TiAlN nano-composite coating on a tough substrate. Primarily for use in general and heavy machining, dry and wet.

            P Steel
            S High-Temp Alloys
            M Stainless Steel
          • X500
            X500

            CVD TiN/TiCN/TiN coated carbide on tough substrate (X-Grade™ technology). For difficult applications with heavy impacts, vibrations, or unstable conditions. High stability against thermal cracks. Excellent grade for high-temperature alloys, stainless steels, and titanium.

            P Steel
            S High-Temp Alloys
            M Stainless Steel
