Grooving and Cut-Off

Beyond™ Evolution™

The new single-side grooving and cut-off tool that also performs multi-directional turning. The Beyond™ Evolution™ proprietary new Triple-V Seating feature provides functional stability and minimizes vibration.

V-Back Design
Unsurpassed grooving, cut-off, and multi-directional turning load stability.

Top and Bottom-V
Precise and secure insert positioning for increased rigidity and dimensional accuracy.

Part of the First Choice Program.

Easy to select, easy to order, easy to apply, exceptional performance.

Learn More

Chip Breaking Effect

Improve chip control in all grooving, cut-off, and multi-directional turning applications.

Triple-V Design

1. V-Back Design - Unsurpassed grooving, cut-off, and multi-directional, turning load stability.

2. Top and Bottom-V - Precise and secure insert positioning for increased rigidity and dimensional accuracy.

Fan Effect

Directs coolant across the top of the insert precisely to the cutting zone underneath the chip and controls temperature.

Suggested Tooling Combinations

Tooling combinations below are the most commonly used for their application.





Face Grooving

  • Face Grooving: Tool Holder
  • GUN Geometry: Grooving Universal Negative
  • GUP Geometey: Grooving Universal Positve





Grooving & Profiling

  • Grooving: Tool Holder
  • GUN Geometry: Grooving Universal Negative
  • GUP Geometey: Grooving Universal Positve

Profiling Inserts for Grooving Holders

  • GUN Radius Geometry: Grooving Universal Negative Full Radius
  • GUP Radius Geometry: Grooving Universal Positive Full Radius
  • GUP-V Geometry: Grooving Universal Positive Profiling



Cut-Off

  • Cut-Off Large Diameter: Tool Holder
  • Cut-Off Small Diameter: Tool Holder
  • Cut-Off Blades: Tool Holder
  • Cut-Off Toolblocks: Tool Holders
  • CF Geometry: Cut-Off Fine
  • CL Geometry: Cut-Off Low Feed
  • CM Geometry: Cut-Off Medium
  • CR Geometry: Cut-Off Roughing





Profiling

  • Profiling: Tool Holder
  • Modular Tooling: Tool Holder
  • GUP-V Geometry: Grooving Universal Positive Profiling
  • GUP Radius Geometry: Grooving Universal Positive Full Radius
  • GUN Radius Geometry: Grooving Universal Negatice Full Radius





Modular

Beyond Evolution Modular Heads

  • Modular Blade Straight
  • Cut-Off KM Minni/Micro
  • Modular Blade Curved

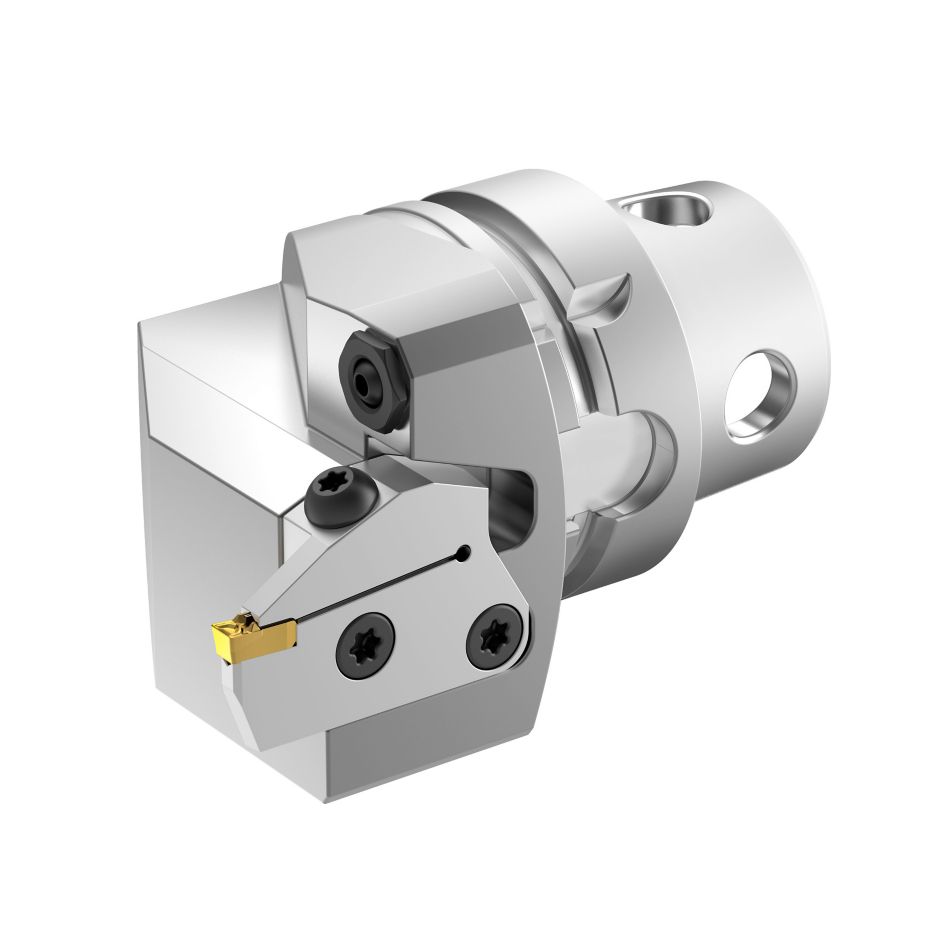

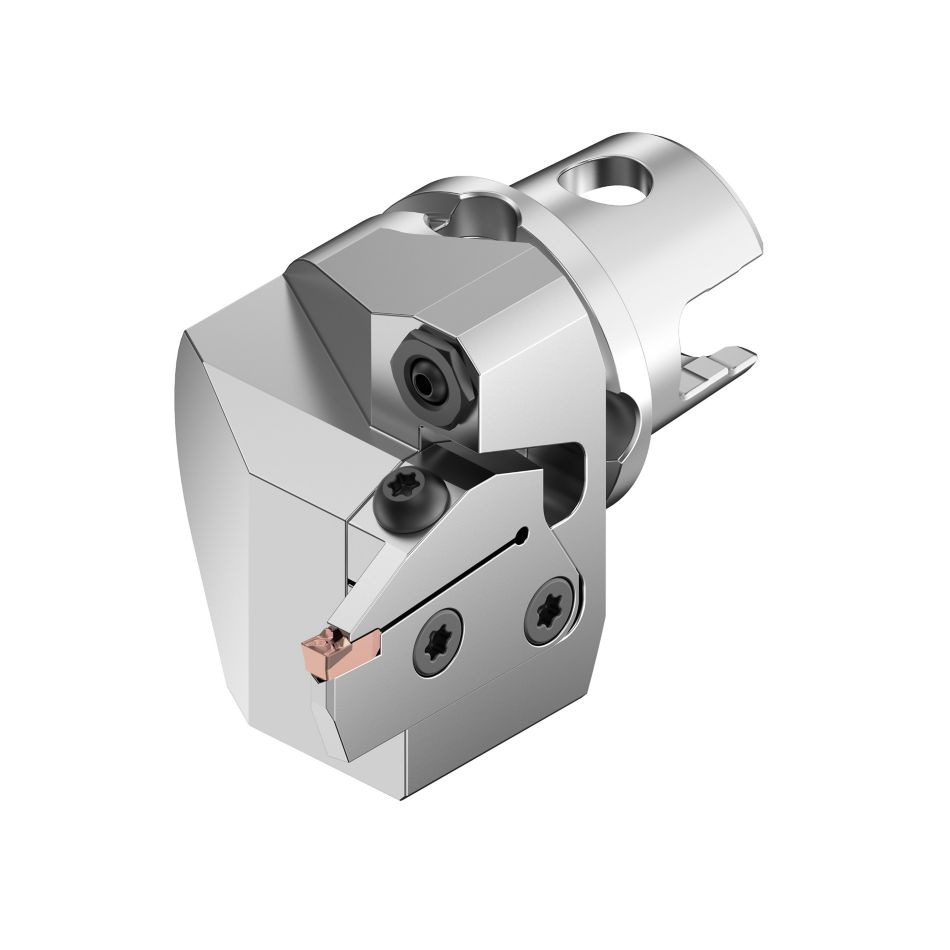

  • KM Quick Change
  • PSC Quick ChangeKM4X Quick Change
