    30mm Series

    Sleeves • 30mm Series

    Material Number1012396

    ISO Catalog IDU80K177S SLEEVEANSI Catalog IDU80K177S SLEEVE

    Steel Sleeve 30mm Underground Mining - 1012396 - Kennametal
    Steel Sleeve 30mm Underground Mining - 1012396 - Kennametal
    Steel Sleeve 30mm Underground Mining - 1012396 - Kennametal
    Steel Sleeve 30mm Underground Mining - 1012396 - Kennametal
    Open expanded view
    Steel Sleeve 30mm Underground Mining - 1012396 - Kennametal
    Steel Sleeve 30mm Underground Mining - 1012396 - Kennametal
    Steel Sleeve 30mm Underground Mining - 1012396 - Kennametal
    Generic representation
    List Price
    /each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • IH TreatmentIH Treatment
    • Double RotatingDouble Rotating
    {{cadTool}} format is not available

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

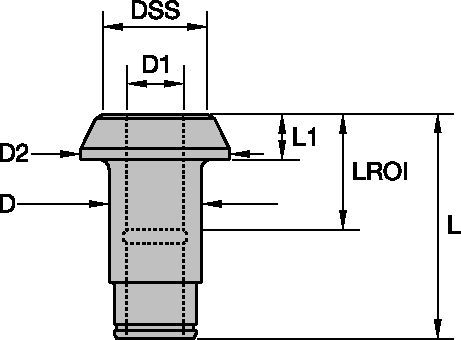

    Drawings for 1012396
    Drawings for 1012396
    Metric
    Inch
    Material Number1012396
    ISO Catalog IDU80K177S SLEEVE
    ANSI Catalog IDU80K177S SLEEVE
    [D] Adapter / Shank / Bore Diameter44.865 mm
    [D] Adapter / Shank / Bore Diameter1.766 in
    [D1] Adapter / Shank / Bore Diameter30.265 mm
    [D1] Adapter / Shank / Bore Diameter1.1915 in
    [D2] Body Diameter 1 Workpiece Side 76.2 mm
    [D2] Body Diameter 1 Workpiece Side 3 in
    [DSS] Diameter Seating Surface50.8 mm
    [DSS] Diameter Seating Surface 2 in
    [L] Overall Length 117.1 mm
    [L] Overall Length 4.61 in
    [L1] Gage Length 1 28.19 mm
    [L1] Gage Length 1 1.11 in
    [L9] Clamping Length 117.1 mm
    [L9] Clamping Length 4.61 in
    [LF] Functional Length28.19 mm
    [LF] Functional Length1.11 in
    [LPR] Protruding Length28.19 mm
    [LPR] Protruding Length1.11 in
    [LS] Shank Length 88.91 mm
    [LS] Shank Length 3.5 in
