    35mm (1.37") Shank • Slim

    U90 Series

    Material Number3383451

    ISO Catalog IDU94KHDSA 85 SLIMANSI Catalog IDU94KHDSA 85 SLIM

    Slim Tool 35 Underground Mining - 3383451 - Kennametal
    Slim Tool 35 Underground Mining - 3383451 - Kennametal
    Slim Tool 35 Underground Mining - 3383451 - Kennametal
    Open expanded view
    Slim Tool 35 Underground Mining - 3383451 - Kennametal
    Slim Tool 35 Underground Mining - 3383451 - Kennametal
    Generic representation
    List Price
    /each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • Cutting Conditions: MediumCutting Conditions: Medium
    • Insert Type: PlugInsert Type: Plug
    • X TreatmentX Treatment
    {{cadTool}} format is not available

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

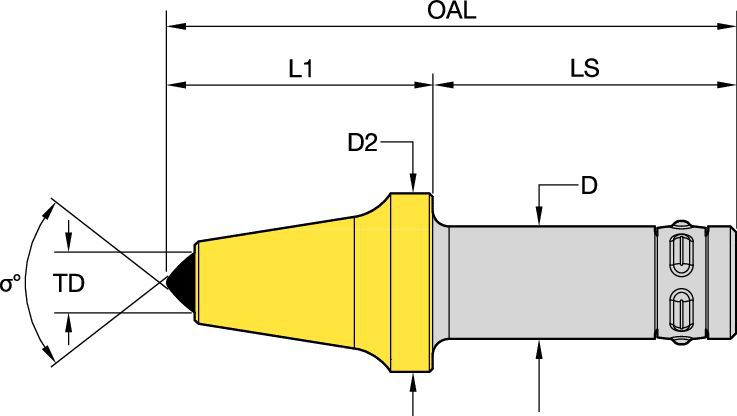

    Drawings for 3383451
    Metric
    Inch
    Material Number3383451
    ISO Catalog IDU94KHDSA 85 SLIM
    ANSI Catalog IDU94KHDSA 85 SLIM
    GradeK357G
    [D] Shank/Bore Diameter34.7 mm
    [D] Shank/Bore Diameter1.366 in
    [TD] Tip Diameter18.69 mm
    [TD] Tip Diameter0.736 in
    [L1] Gage Length82.2 mm
    [L1] Gage Length3.24 in
    [D2] Body Diameter Workpiece Side55.1 mm
    [D2] Body Diameter Workpiece Side2.17 in
    [LS] Shank Length 93.7 mm
    [LS] Shank Length 3.69 in
    [OAL] Overall Length175.9 mm
    [OAL] Overall Length6.93 in
    See all Product Variants

    Uses and application

    • Cutting Conditions: MediumCutting Conditions: Medium
    • Insert Type: PlugInsert Type: Plug
    • X TreatmentX Treatment
