    35mm Series

    Sleeves • 35mm Series

    Material Number3968780

    ISO Catalog IDU90K35R SLEEVEANSI Catalog IDU90K35R SLEEVE

    Steel Sleeve 35mm Underground Mining - 3968780 - Kennametal
    Steel Sleeve 35mm Underground Mining - 3968780 - Kennametal
    Steel Sleeve 35mm Underground Mining - 3968780 - Kennametal
    Open expanded view
    Steel Sleeve 35mm Underground Mining - 3968780 - Kennametal
    Steel Sleeve 35mm Underground Mining - 3968780 - Kennametal
    Generic representation
    List Price
    /each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
      {{cadTool}} format is not available

      Sending to {{cadTool}} in progress...

      Downloaded file will be available after import in the {{cadTool}} tool library.

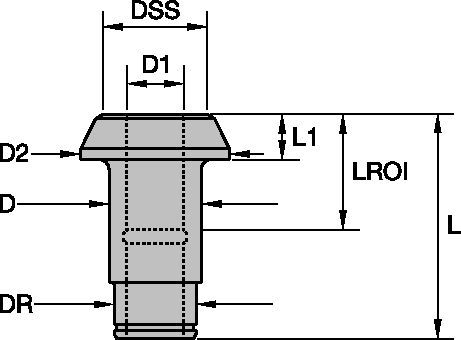

      Drawings for 3968780
      Metric
      Inch
      Material Number3968780
      ISO Catalog IDU90K35R SLEEVE
      ANSI Catalog IDU90K35R SLEEVE
      [D] Adapter / Shank / Bore Diameter57.025 mm
      [D] Adapter / Shank / Bore Diameter2.245 in
      [D1] Adapter / Shank / Bore Diameter35.065 mm
      [D1] Adapter / Shank / Bore Diameter1.3805 in
      [D2] Body Diameter 1 Workpiece Side 95.2 mm
      [D2] Body Diameter 1 Workpiece Side 3.75 in
      [DSS] Diameter Seating Surface64 mm
      [DSS] Diameter Seating Surface 2.52 in
      [L] Overall Length 123.7 mm
      [L] Overall Length 4.87 in
      [L1] Gage Length 1 28.2 mm
      [L1] Gage Length 1 1.11 in
      [LF] Functional Length28.2 mm
      [LF] Functional Length1.11 in
      [LPR] Protruding Length28.2 mm
      [LPR] Protruding Length1.11 in
      [LS] Shank Length 90.04 mm
      [LS] Shank Length 3.545 in
      See all Product Variants
