    51mm (2") Shank • Heavy

    51mm Series

    Material Number3564343

    ISO Catalog IDU200LHF 3.2 75ANSI Catalog IDU200LHF 3.2 75

    Heavy Body Tool 51 CR Underground Mining - 3564343 - Kennametal
    Heavy Body Tool 51 CR Underground Mining - 3564343 - Kennametal
    Heavy Body Tool 51 CR Underground Mining - 3564343 - Kennametal
    Open expanded view
    Heavy Body Tool 51 CR Underground Mining - 3564343 - Kennametal
    Heavy Body Tool 51 CR Underground Mining - 3564343 - Kennametal
    Generic representation
    List Price
    /each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • Cutting Conditions: SevereCutting Conditions: Severe
    • Insert Type: PlugInsert Type: Plug
    {{cadTool}} format is not available

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

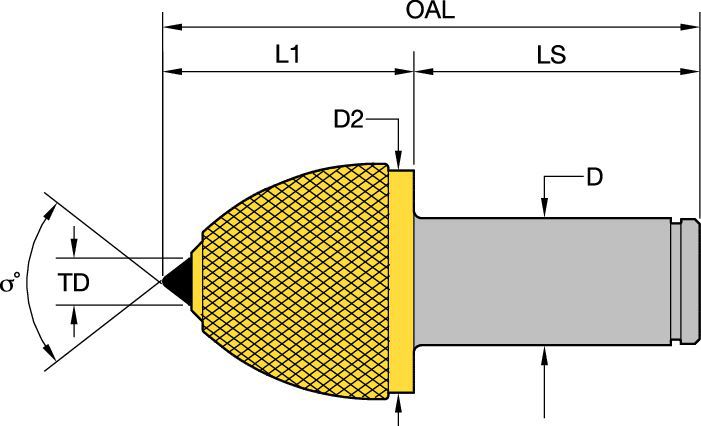

    Drawings for 3564343
    Metric
    Inch
    Material Number3564343
    ISO Catalog IDU200LHF 3.2 75
    ANSI Catalog IDU200LHF 3.2 75
    GradeK3560
    [D] Shank/Bore Diameter50.8 mm
    [D] Shank/Bore Diameter2 in
    [TD] Tip Diameter18.745 mm
    [TD] Tip Diameter0.738 in
    Point Included Angle [SIGMA]75
    [L1] Gage Length80 mm
    [L1] Gage Length3.15 in
    [D2] Body Diameter Workpiece Side69.8 mm
    [D2] Body Diameter Workpiece Side2.75 in
    [LS] Shank Length 133.5 mm
    [LS] Shank Length 5.25 in
    [OAL] Overall Length213.5 mm
    [OAL] Overall Length8.4 in
    See all Product Variants

    Uses and application

    • Cutting Conditions: SevereCutting Conditions: Severe
    • Insert Type: PlugInsert Type: Plug

    Features and benefits

    • Catalog numbers containing "HF" indicate Hard Faced Treatment.

    I have read and accepted the Terms & Conditions of use

    CAD Drawings Models

    Can’t find the file type you’re looking for?

    Product data

    SDS

    Safety Data Sheets

    Product Name
    Material Number
    ISO Catalog ID
    ANSI Catalog ID

    Retainer KR200
    Retainer KR200
    1011893
    KR200 RETAINER
    KR200 RETAINER
