| Material Number | 5661186 |
| ISO Catalog ID | SDMT09T308EN41 |
| ANSI Catalog ID | SDMT09T308EN41 |
| Grade | SP6519 |

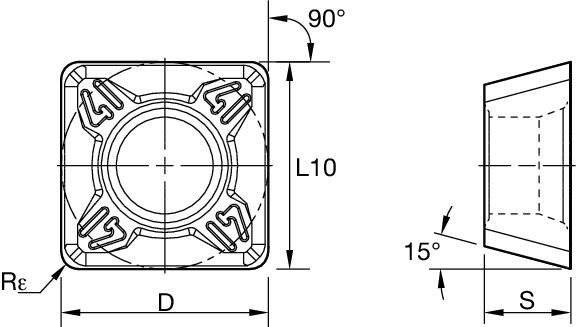

| [D] Insert IC Size | 9.525 mm |
| [D] Insert IC Size | 0.375 in |
| [S] Insert Thickness | 3.97 mm |
| [S] Insert Thickness | 0.1563 in |
| [L10] Insert Cutting Edge Length | 9.52 mm |
| [L10] Insert Cutting Edge Length | 0.375 in |
| [Rε] Corner Radius | 0.8 mm |
| [Rε] Corner Radius | 0.031 in |
| Average Chip Thickness [HM] | 0.05 mm |
| Average Chip Thickness [HM] | 0.002 in |
| Cutting Edges per Insert | 4 |
Grades
SP6519
Coated carbide grade with PVD TiAlN nano-composite coating on a tough substrate. Primarily for use in general and heavy machining, dry and wet.
Create Solution to calculate Feeds and Speeds
After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.
| 5230 VS09 • Insert Selection Guide | ||||||
| Material Group | Light | General | Heavy | |||
| – | (Light geometry) | – | (Strong geometry) | |||
| – | wear |  | toughness | |||
| – | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | .E..422 | SP6519 | .E..41 | SP6519 | .E..41 | SP6519 |
| P3–P4 | .E..423 | SP6519 | .E..423 | SP6519 | ...TN | MP91M |
| P5–P6 | .E..41 | SP6519 | .E..423 | SP6519 | ...TN | SP6519 |
| M1–M2 | .E..422 | KCSM40 | .E..41 | KCSM40 | .E..423 | KCSM40 |
| M3 | .E..423 | KCSM40 | .E..423 | KCSM40 | ...TN | KCSM40 |
| K1–K2 | – | – | – | – | – | – |
| K3 | – | – | – | – | – | – |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | .E..422 | X500 | .E..41 | KCSM40 | .E..423 | KCSM40 |
| S3 | .E..422 | KCSM40 | .E..423 | KCSM40 | .E..41 | KCSM40 |
| S4 | .E..41 | X500 | .E..423 | X500 | ...TN | X500 |
| H1 | – | – | – | – | – | – |
