Shoulder milling cutter for high-speed aluminum machining.

5720 Series • End Mill • Screw-On • Inch

Name: 5720 Series • End Mill • Screw-On • Inch
SKU: 5672512
Rating: 0 (0 reviews)

Shoulder milling cutter for high-speed aluminum machining.

Metric

Inch

SAP Material Number	5672512
ISO Catalog Number	A5720VZ16SA1.00Z2R2
ANSI Catalog Number	A5720VZ16SA1.00Z2R2

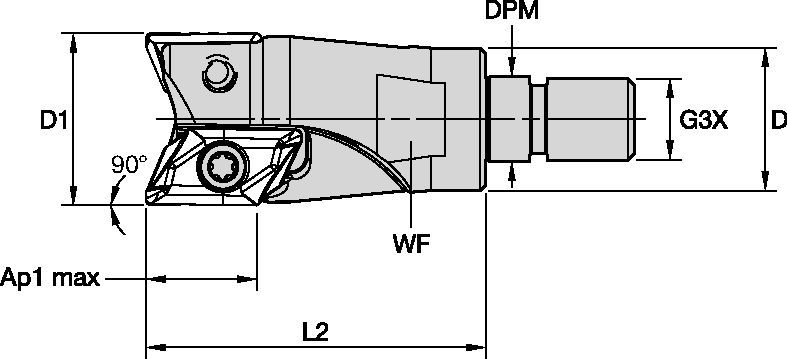

[D1] Effective Cutting Diameter	25.4 mm
[D1] Effective Cutting Diameter	1 in
[D] Adapter / Shank / Bore Diameter	21 mm
[D] Adapter / Shank / Bore Diameter	.8268 in
[DPM] Pilot Diameter Machine Side	12.5 mm
[DPM] Pilot Diameter Machine Side	.4921 in
[G3X] Connection Thread Size External	M12
[L2] Head Length	50 mm
[L2] Head Length	1.968 in
[WF] Width of Flat	18 mm
[WF] Width of Flat	.7087 in
[AP1MAX] 1st Maximum Cutting Depth	16 mm
[AP1MAX] 1st Maximum Cutting Depth	.63 in
Number of Inserts	2
[Z] Number of Flutes	2
Maximum Ramping Angle	14.7
Weight Pounds	0.23
Max RPM	50000

See all Product Variants

Uses and application

Spiral Circular
Face Milling
Helical Milling
Ramping: Blank
Shank - Screw-On
Milling - Through Coolant
Pocketing
Counter Boring
Inclined Square End Mill

Workpiece Materials

K Cast Iron

N Non-Ferrous

Features and benefits

For pocketing and profiling in aluminum and aluminum alloys.

Maximum stability in high-speed applications.

Excellent choice for components with thin walls due to low cutting pressure.

Internal coolant supply.

Reinforced pockets for high feed applications and ramping, increasing tool and productivity.

Machine Side

Workpiece Side

5720 Series • Insert Selection Guide
Material Group	Light Machining		General Purpose		Heavy Machining
–	(Light geometry)		–		(Strong geometry)
–	wear resistance		<="" td="">		toughness
–	Geometry	Grade	Geometry	Grade	Geometry	Grade
P1–P2	–	–	–	–	–	–
P3–P4	–	–	–	–	–	–
P5–P6	–	–	–	–	–	–
M1–M2	–	–	–	–	–	–
M3	–	–	–	–	–	–
K1–K2	–	–	–	–	–	–
K3	–	–	–	–	–	–
N1–N2	.F..721	GH1	.F..721	GH1	.F..721	GH1
N3	.F..721	GH1	.F..721	GH1	.F..721	GH1
S1–S2	–	–	–	–	–	–
S3	–	–	–	–	–	–
S4	–	–	–	–	–	–
H1	–	–	–	–	–	–

5720 Series • Recommended Starting Feeds [mm/th]
Insert Geometry	Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae)
	5%			10%			20%			30%			40–100%
	L	M	H	L	M	H	L	M	H	L	M	H	L	M	H
...FR721	0,12	0.45	0.81	0,08	0.33	0.58	0,06	0.25	0.43	0,06	0.21	0.38	0,05	0.2	0.35
...ER721	0.15	0.50	0.92	0.11	0.36	0.66	0.08	0.27	0.5	0.07	0,24	0.43	0.07	0,22	0,40
L = Light Machining; M = Medium Machining; H = Heavy Machining NOTE: Use "Light Machining" values as starting feed rate.

5720 Series • Recommended Starting Feeds [IPT]
Insert Geometry	Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae)
	5%			10%			20%			30%			40–100%
	L	M	H	L	M	H	L	M	H	L	M	H	L	M	H
...FR721	0,12	0.45	0.81	0,08	0.33	0.58	0,06	0.25	0.43	0,06	0.21	0.38	0,05	0.2	0.35
...ER721	0.15	0.50	0.92	0.11	0.36	0.66	0.08	0.27	0.5	0.07	0,24	0.43	0.07	0,22	0,40
L = Light Machining; M = Medium Machining; H = Heavy Machining NOTE: Use "Light Machining" values as starting feed rate.

5720 Series • Recommended Starting Speed [m/min]
Grade		GH1
Chip Thickness hex mm		Min		Max
Material Group		Max	Start	Min
P	1	–	–	–
	2	–	–	–
	3	–	–	–
	4	–	–	–
	5	–	–	–
	6	–	–	–
M	1	–	–	–
	2	–	–	–
	3	–	–	–
K	1	215	140	120
	2	195	120	100
	3	180	105	80
N	1	795	695	600
	2	615	520	425
	3	615	520	425
S	1	–	–	–
	2	–	–	–
	3	–	–	–
	4	–	–	–
H	1	–	–	–
As the average chip thickness increases, speed should be decreased. Material groups P, M, K and H show recommended starting speeds for dry machining. For wet machining, reduce speed by 20%. Material groups N and S show recommended starting speeds for wet machining. Not recommended for dry machining.

5720 Series • Recommended Starting Speed [SFM]
Grade		GH1
Chip Thickness hex Inch		Min		Max
Material Group		Max	Start	Min
P	1	–	–	–
	2	–	–	–
	3	–	–	–
	4	–	–	–
	5	–	–	–
	6	–	–	–
M	1	–	–	–
	2	–	–	–
	3	–	–	–
K	1	705	460	395
	2	640	395	330
	3	590	345	260
N	1	2610	2280	1970
	2	2020	1705	1395
	3	2020	1705	1395
S	1	–	–	–
	2	–	–	–
	3	–	–	–
	4	–	–	–
H	1	–	–	–
As the average chip thickness increases, speed should be decreased. Material groups P, M, K and H show recommended starting speeds for dry machining. For wet machining, reduce speed by 20%. Material groups N and S show recommended starting speeds for wet machining. Not recommended for dry machining.

Spare Parts for 5720 Series • End Mill • Screw-On • Inch

Spare Part ANTI-SEIZE LUBRICANT

TORX PLUS DRIVE WRENCH

DP5009A
