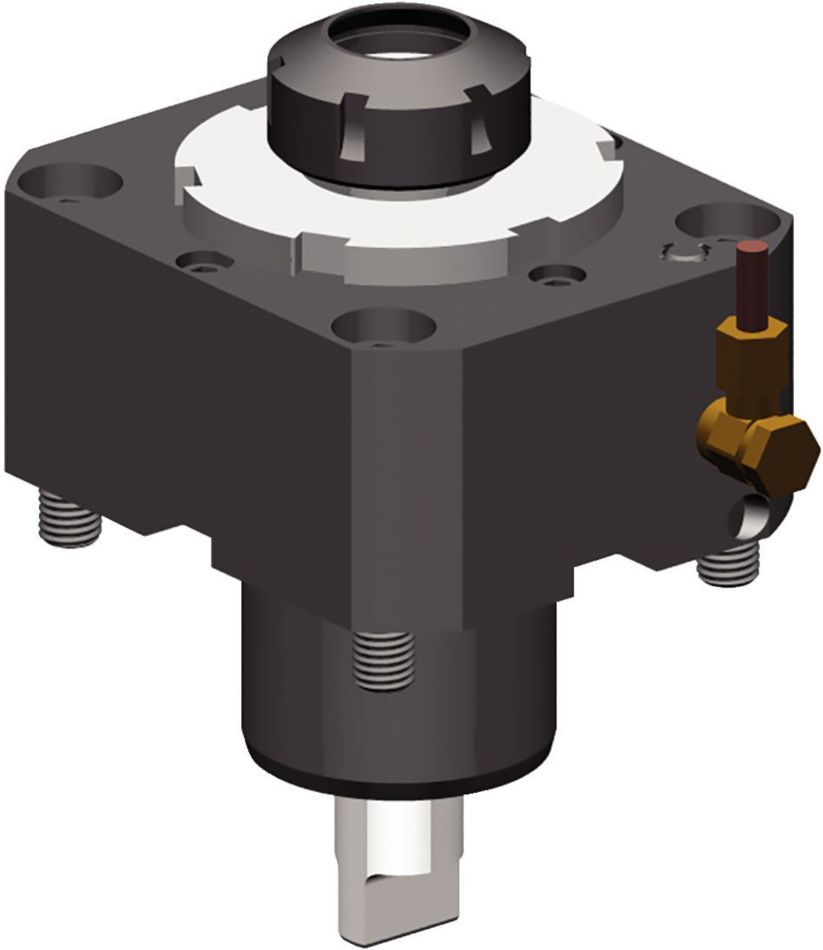

      DMG Mori • Driven Tool Axial • ER™ • MMC 002
      DMG Mori • Driven Tool Axial • ER™ • MMC 002
      DMG Mori • Driven Tool Axial • ER™ • MMC 002
      DMG Mori • Driven Tool Axial • ER™ • MMC 002

      Driven Tool Axial • ER™ • TACU002ER32DA61301864, TACU002ER32DA61301865, TACU002ER40DA61301840, TACU002ER40DA61301841

      DMG Mori • Driven Tool Axial • ER™ • MMC 002

      Metric
      Inch
      SAP Material Number 6589004
      ISO Catalog Number TACU002ER32DA61301864
      ANSI Catalog Number TACU002ER32DA61301864
      [CST] Catalog Collet Series ER32
      Machine Mount Code 002
      [B2] Overall Width 149.9000
      [B2] Overall Width 5.901
      [D] Adapter / Shank / Bore Diameter 59.9
      [D] Adapter / Shank / Bore Diameter 2.358
      [D11] Lock Nut Diameter 50.0000
      [D11] Lock Nut Diameter 1.968
      Lock Nut Diameter [DLN_2] 85.0000
      HLD_LOCK_NUT_DIA_2_I 3.346
      [H2] Overall Height 108.0000
      [H2] Overall Height 4.252
      [L] Overall Length 183.5000
      [L] Overall Length 7.224
      [L1] Gage Length 90.0000
      [L1] Gage Length 3.543
      Torque Machine Spindle Nm 100.000
      Coolant Pressure Bar 70.0
      Coolant Pressure PSI 1000.0
      Coolant Delivery I/E
      [CS1] Coolant Supply Exit Size M12X1 & G 1/8
      Max RPM 6000
      Weight Kilograms 7.77
      Torque Newton Meters 136.000
      Torque Foot Pounds 100.0000
      See all Product Variants

      Features and benefits

      Machine Series:
      • NL/NLX 1500-4000 MC/Y/SMC/SY

      • NLX 4000 (High Torque Milling)

      • NT 4200-5400

      • NZX 2500 (12 Station Turret)

      Machine Side

      loading...

      Workpiece Side

      loading...

      Spare Parts for Driven Tool Axial • ER™ • TACU002ER32DA61301864, TACU002ER32DA61301865, TACU002ER40DA61301840, TACU002ER40DA61301841

      Spare Part
        WRENCH
        WRENCH
        Spare Part
          WRENCH
          WRENCH
          Spare Part
            ER32 Solid Lock Nut
            ER32 Solid Lock Nut
