    Driven Tool Radial • ER™ • TACU002ER32DR61301863, TACU002ER40DR61301839, TACU002ER40DR61301842

    DMG Mori • Driven Tool Radial • ER™ • MMC 002

    Material Number6588961

    ISO Catalog IDTACU002ER40DR61301842ANSI Catalog IDTACU002ER40DR61301842

    Turret Adapted Clamping Units Driven Tool Radial • ER™
    Turret Adapted Clamping Units Driven Tool Radial • ER™
    Turret Adapted Clamping Units Driven Tool Radial • ER™
    Turret Adapted Clamping Units Driven Tool Radial • ER™
    Turret Adapted Clamping Units Driven Tool Radial • ER™
    Open expanded view
    Turret Adapted Clamping Units Driven Tool Radial • ER™
    Turret Adapted Clamping Units Driven Tool Radial • ER™
    Turret Adapted Clamping Units Driven Tool Radial • ER™+0
    Turret Adapted Clamping Units Driven Tool Radial • ER™
    Generic representation
    List Price
    $5,448.42/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • Through Coolant: Axial: DrillingThrough Coolant: Axial: Drilling
    • ER Solid ColletER Solid Collet
    • Shank - Screw-OnShank - Screw-On
    • Collet - ER DIN 6499Collet - ER DIN 6499
    {{cadTool}} format is not available

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

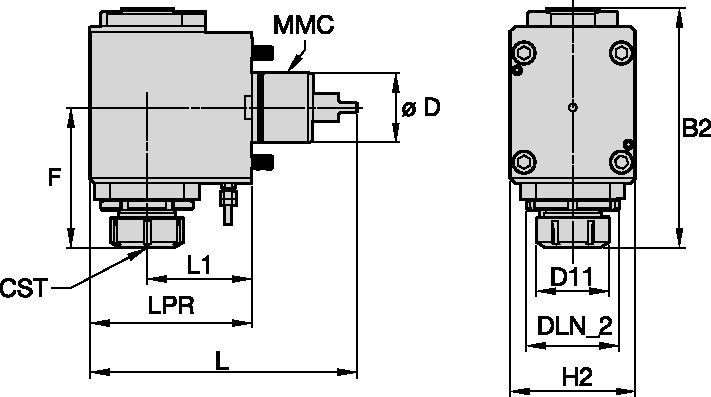

    Drawings for 6588961
    Drawings for 6588961
    Metric
    Inch
    Material Number6588961
    ISO Catalog IDTACU002ER40DR61301842
    ANSI Catalog IDTACU002ER40DR61301842
    [CST] Catalog Collet SeriesER40
    Machine Mount Code002
    [B2] Overall Width 204 mm
    [B2] Overall Width 8.0315 in
    [D] Adapter / Shank / Bore Diameter59.9 mm
    [D] Adapter / Shank / Bore Diameter2.3583 in
    [D11] Lock Nut Diameter63 mm
    [D11] Lock Nut Diameter2.4803 in
    Lock Nut Diameter [DLN_2]80 mm
    [DLN_2] Lock Nut Diameter 23.1496 in
    [F] F Dimension 118.5 mm
    [F] F Dimension 4.6654 in
    [H2] Overall Height 108 mm
    [H2] Overall Height 4.252 in
    [L] Overall Length 230 mm
    [L] Overall Length 9.0551 in
    [L1] Gage Length90 mm
    [L1] Gage Length3.5433 in
    [LPR] Protruding Length 139 mm
    [LPR] Protruding Length 5.472 in
    Torque Machine Spindle Nm100
    Coolant Pressure Bar70
    Coolant Pressure PSI1000
    Coolant DeliveryI/E
    [CS1] Coolant Supply Exit SizeG 1/8
    Max RPM10000
    Weight Kilograms18.79
    Torque Newton Meters176
    Torque Foot Pounds130
    See all Product Variants

    Uses and application

    • Through Coolant: Axial: DrillingThrough Coolant: Axial: Drilling
    • ER Solid ColletER Solid Collet
    • Shank - Screw-OnShank - Screw-On
    • Collet - ER DIN 6499Collet - ER DIN 6499

    Features and benefits

    Machine Series:
    • NL/NLX 1500-4000 MC/Y/SMC/SY
    • NLX 4000 (High Torque Milling)
    • NT 4200-5400
    • NZX 2500 (12 Station Turret)

    Create Solution to calculate Feeds and Speeds

    After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.

    I have read and accepted the Terms & Conditions of use

    CAD Drawings Models

    Can’t find the file type you’re looking for?

    Product data

    SDS

    Safety Data Sheets

    Product Name
    Material Number
    ISO Catalog ID
    ANSI Catalog ID

    ER Standard Tap Collets • Inch/Metric ANSI
    ER Standard Tap Collets • Inch/Metric ANSI
    1026475
    40ERTC025
    40ERTC025
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    ER Standard Tap Collets • Inch/Metric ANSI
    ER Standard Tap Collets • Inch/Metric ANSI
    1026476
    40ERTC031
    40ERTC031
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    ER Standard Tap Collets • Inch/Metric ANSI
    ER Standard Tap Collets • Inch/Metric ANSI
    1026477
    40ERTC043
    40ERTC043
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    ER Standard Tap Collets • Inch/Metric ANSI
    ER Standard Tap Collets • Inch/Metric ANSI
    1026478
    40ERTC050
    40ERTC050
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    ER Standard Tap Collets • Inch/Metric ANSI
    ER Standard Tap Collets • Inch/Metric ANSI
    1026479
    40ERTC037
    40ERTC037
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    ER Standard Tap Collets • Inch/Metric ANSI
    ER Standard Tap Collets • Inch/Metric ANSI
    1026480
    40ERTC056
    40ERTC056
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    ER Standard Tap Collets • Inch/Metric ANSI
    ER Standard Tap Collets • Inch/Metric ANSI
    1026481
    40ERTC062
    40ERTC062
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    ER Standard Tap Collets • Inch/Metric ANSI
    ER Standard Tap Collets • Inch/Metric ANSI
    1026482
    40ERTC069
    40ERTC069
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    ER Standard Tap Collets • Inch/Metric ANSI
    ER Standard Tap Collets • Inch/Metric ANSI
    1026483
    40ERTC075
    40ERTC075
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    ER Standard Tap Collets • Inch/Metric ANSI
    ER Standard Tap Collets • Inch/Metric ANSI
    1026494
    40ERTC081
    40ERTC081
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery

    Product Name
    Material Number
    ISO Catalog ID
    ANSI Catalog ID

    WRENCH
    WRENCH
    1136096
    ER40WM
    ER40WM
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    WRENCH
    WRENCH
    1192231
    HSW80M
    HSW80M
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    ER40 Solid Lock Nut
    ER40 Solid Lock Nut
    6459274
    LNSRER40M
    LNSRER40M
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
