38/30mm Step Shank Conicals
38/30mm Step Shank Conicals
38/30mm Step Shank Conicals
38/30mm Step Shank Conicals
Select the files you wish to request
Downloads
Request {{cadTool}} format
{{cadTool}} format is not available

DS106DR-X

38/30mm Step Shank Conicals

Metric
Inch
SAP Material Number 5603304
ISO Catalog Number DS106DR X
ANSI Catalog Number DS106DR X
Grade K3560

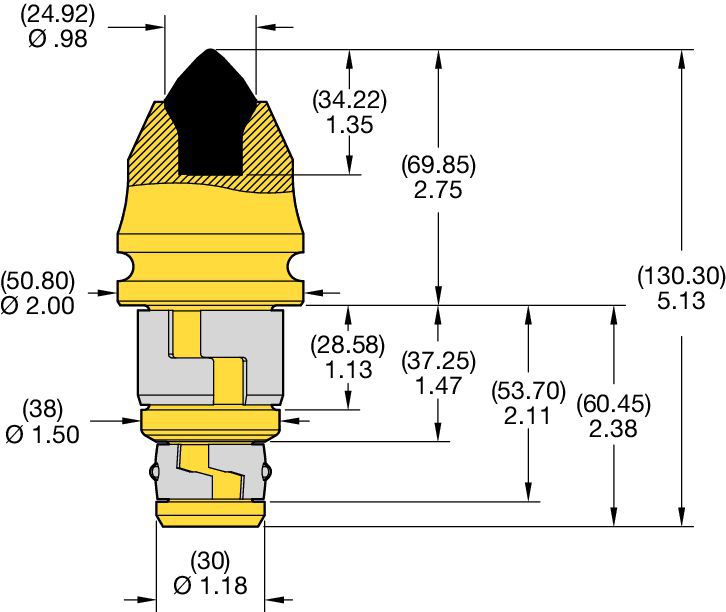

[L1] Gage Length 69.849 mm
[L1] Gage Length 2.75 in
[LS] Shank Length 60.452 mm
[LS] Shank Length 2.38 in
[LRO] Retainer Offset Length 28.575 mm
[LRO] Retainer Offset Length 1.125 in
[TL] Tip Length 34.221 mm
[TL] Tip Length 1.347 in
[TD] Tip Diameter 24.917 mm
[TD] Tip Diameter .981 in
[TDS] Tip Diameter Start 30.328 mm
[TDS] Tip Diameter Start 1.194 in
[D] Shank/Bore Diameter 37.719 mm
[D] Shank/Bore Diameter 1.485 in
[D2] Body Diameter Workpiece Side 50.8 mm
[D2] Body Diameter Workpiece Side 2 in
[DR] Shank Diameter Reduced 29.515 mm
[DR] Shank Diameter Reduced 1.162 in
[OAL] Overall Length 130.301 mm
[OAL] Overall Length 5.13 in
Cutting Condition SEVERE
EW_MACHINE_POWER MEDIUM TO HIGH
EW_CON_RETAINER_STYLE FRICTION POSITIVE LOCK
See all Product Variants

Uses and application

  • Internal RetainerInternal Retainer
  • 100029112100029112
  • X TreatmentX Treatment
  • Cutting Conditions: SevereCutting Conditions: Severe
  • Tool with Puller GrooveTool with Puller Groove
  • Cutting Conditions: AbrasiveCutting Conditions: Abrasive

Machine Side

loading...

Workpiece Side

loading...

Spare Parts for DS106DR-X

Spare Part
    RETAINER U75K 1050 SPRING STEEL RETAINER U75K 1050 SPRING STEEL
    RETAINER U75K 1050 SPRING STEEL
