    KenCut™ ALR • F3BA-DL • Radiused • 3 Flutes • Long • Extended Neck • Plain Shank • Metric

    KenCut™ ALR Solid Carbide End Mill for Roughing of Aluminum

    Material Number2625716

    ISO Catalog IDF3BA1200ADL40E360ANSI Catalog IDF3BA1200ADL40E360

    KenCut™ ALR - F3BA-DL - Radiused - 3 Flutes - Long - Extended Neck - Plain Shank - Metric 2625716 - Kennametal
    KenCut™ ALR - F3BA-DL - Radiused - 3 Flutes - Long - Extended Neck - Plain Shank - Metric 2625716 - Kennametal
    KenCut™ ALR - F3BA-DL - Radiused - 3 Flutes - Long - Extended Neck - Plain Shank - Metric 2625716 - Kennametal
    Open expanded view
    KenCut™ ALR - F3BA-DL - Radiused - 3 Flutes - Long - Extended Neck - Plain Shank - Metric 2625716 - Kennametal
    KenCut™ ALR - F3BA-DL - Radiused - 3 Flutes - Long - Extended Neck - Plain Shank - Metric 2625716 - Kennametal
    Generic representation
    List Price
    $290.23/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • N Non-Ferrous
    • Plunge MillingPlunge Milling
    • Ramping: BlankRamping: Blank
    • Slotting: Square EndSlotting: Square End
    • Side Milling/Shoulder Milling: Square EndSide Milling/Shoulder Milling: Square End
    • DIN number 6527DIN number 6527
    • Tool Dimensions: Flute Configuration: 3Tool Dimensions: Flute Configuration: 3
    • Helix Angle: 40°Helix Angle: 40°
    • Corner Style: Corner RadiusCorner Style: Corner Radius
    {{cadTool}} format is not available

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

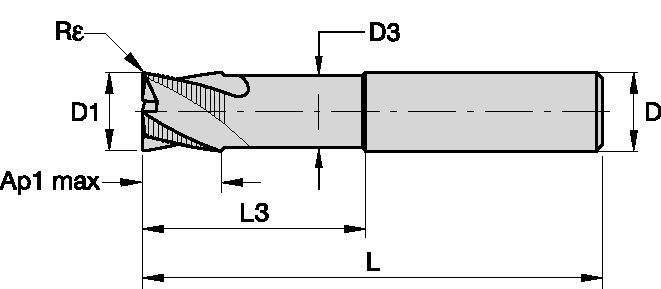

    Drawings for 2625716
    Metric
    Inch
    Material Number2625716
    ISO Catalog IDF3BA1200ADL40E360
    ANSI Catalog IDF3BA1200ADL40E360
    GradeK600
    Adapter Style Machine SideStraight-Cylindrical
    [D1] Effective Cutting Diameter12 mm
    [D1] Effective Cutting Diameter0.4724 in
    [D] Adapter / Shank / Bore Diameter12 mm
    [D] Adapter / Shank / Bore Diameter0.4724 in
    [D3] Neck Diameter 11 mm
    [D3] Neck Diameter 0.4331 in
    [AP1MAX] 1st Maximum Cutting Depth15 mm
    [AP1MAX] 1st Maximum Cutting Depth0.5906 in
    [L3] Usable Length36 mm
    [L3] Usable Length1.4173 in
    [L] Overall Length 83 mm
    [L] Overall Length 3.2677 in
    [Re] Corner Radius 0.5 mm
    [Re] Corner Radius 0.02 in
    [Z] Number of Flutes3
    See all Product Variants

    Workpiece Materials

    • Non-Ferrous

    Uses and application

    • Plunge MillingPlunge Milling
    • Ramping: BlankRamping: Blank
    • Slotting: Square EndSlotting: Square End
    • Side Milling/Shoulder Milling: Square EndSide Milling/Shoulder Milling: Square End
    • DIN number 6527DIN number 6527
    • Tool Dimensions: Flute Configuration: 3Tool Dimensions: Flute Configuration: 3
    • Helix Angle: 40°Helix Angle: 40°
    • Corner Style: Corner RadiusCorner Style: Corner Radius

    Grades

    K600

    K600

    Carbide grade made from high-quality, micrograin materials for cutting all types of workpiece materials. Very high toughness ensures a controlled wear rate. The micrograin structure enables extremely sharp cutting edges.

    Features and benefits

    • Center cutting for plunging and ramping operations
    • Solid carbide end mill with cord profile, for low cutting forces and low power consumption

    Create Solution to calculate Feeds and Speeds

    After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.

    Application Data

    View MoreView Less

    Tolerance

    End Mill Tolerances
    D1tolerance d11Dtolerance h6 + / -
    ≤3-0,020/-0,080≤3+0/-0,006
    3–6-0,030/-0,1053–6+0/-0,008
    6–10-0,040/-0,1306–10+0/-0,009
    10–18-0,050/-0,16010–18+0/-0,011
    18–30-0,065/-0,19518–30+0/-0,013
    View MoreView Less
