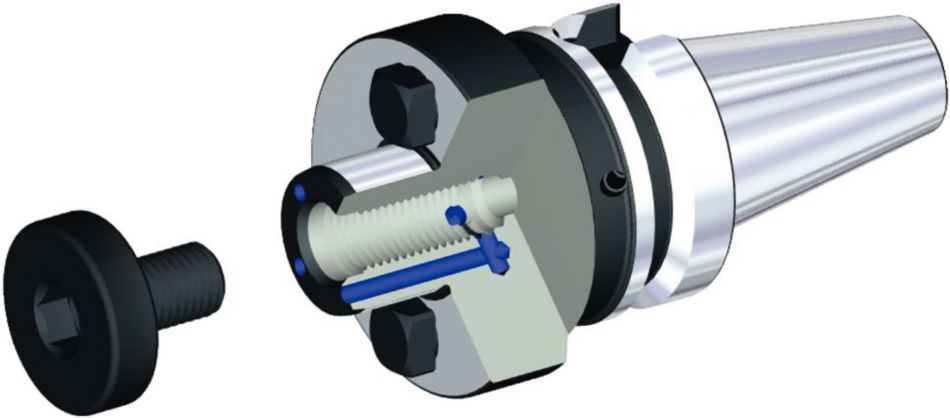

Shell Mill Adapters with Through Coolant

SAP Material Number 3857093
ISO Catalog Number BTKV50BSMC32045M
ANSI Catalog Number BTKV50BSMC32045M

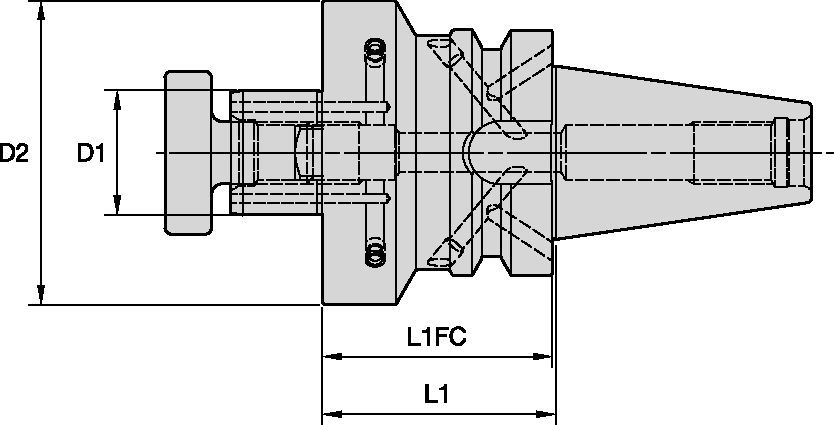

[D1] Adapter / Shank / Bore Diameter 32 mm
[D1] Adapter / Shank / Bore Diameter 1.259 in
[D2] Body Diameter 1 Workpiece Side 78 mm
[D2] Body Diameter 1 Workpiece Side 3.07 in
[L1] Gage Length 45 mm
[L1] Gage Length 1.771 in
Gage Length Face Contact [L1FC] 43.5 mm
Gage Length Face Contact [L1FC] 1.712 in
Cutter Retention Screw ID Drive Size 14 mm
Weight Kilograms 4.01
See all Product Variants
Create Solution to calculate Feeds & Speeds

Uses and application

  • Milling - Through CoolantMilling - Through Coolant
  • Milling - Side and FaceMilling - Side and Face
  • Balance - G 2.5@15,000 min-1Balance - G 2.5@15,000 min-1
  • Shank - SK BT Taper Face ContactShank - SK BT Taper Face Contact

Machine Side


Workpiece Side


Spare Parts for SMC Lock MM-BTKV Form B/AD

Spare Part
    Spare Part
