| Material Number | 3128102 |
| ISO Catalog ID | SNMG120408UP |
| ANSI Catalog ID | SNMG432UP |
| Grade | KC9225 |

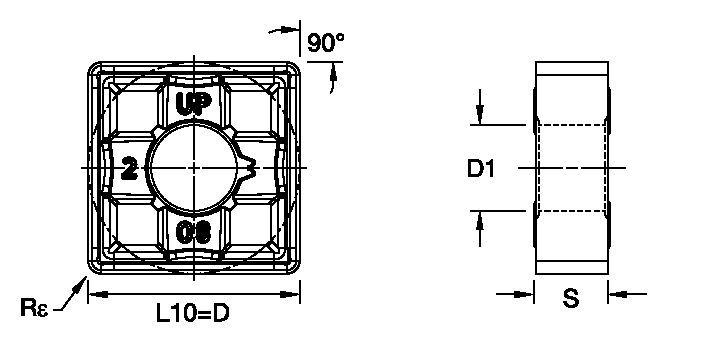

| [D] Insert IC Size | 12.7 mm |
| [D] Insert IC Size | 0.5 in |
| [L10] Insert Cutting Edge Length | 12.7 mm |
| [L10] Insert Cutting Edge Length | 0.5 in |
| [S] Insert Thickness | 4.76 mm |
| [S] Insert Thickness | 0.1875 in |
| [Rε] Corner Radius | 0.8 mm |
| [Rε] Corner Radius | 0.031 in |
| [D1] Insert Hole Size | 5.16 mm |
| [D1] Insert Hole Size | 0.2031 in |
Grades
KC9225
MT-CVD-TiN-TiCN-Al2O3-TiN gradient carbide
For continuous to slightly interrupted cuts
For universal use in boring on stainless steels
Reduced edge build up due to micro-polished surface
