    Driven Tool Radial • ER™ • TACU002ER32DR61301863, TACU002ER40DR61301839, TACU002ER40DR61301842

    DMG Mori • Driven Tool Radial • ER™ • MMC 002

    Material Number6589003

    ISO Catalog IDTACU002ER32DR61301863ANSI Catalog IDTACU002ER32DR61301863

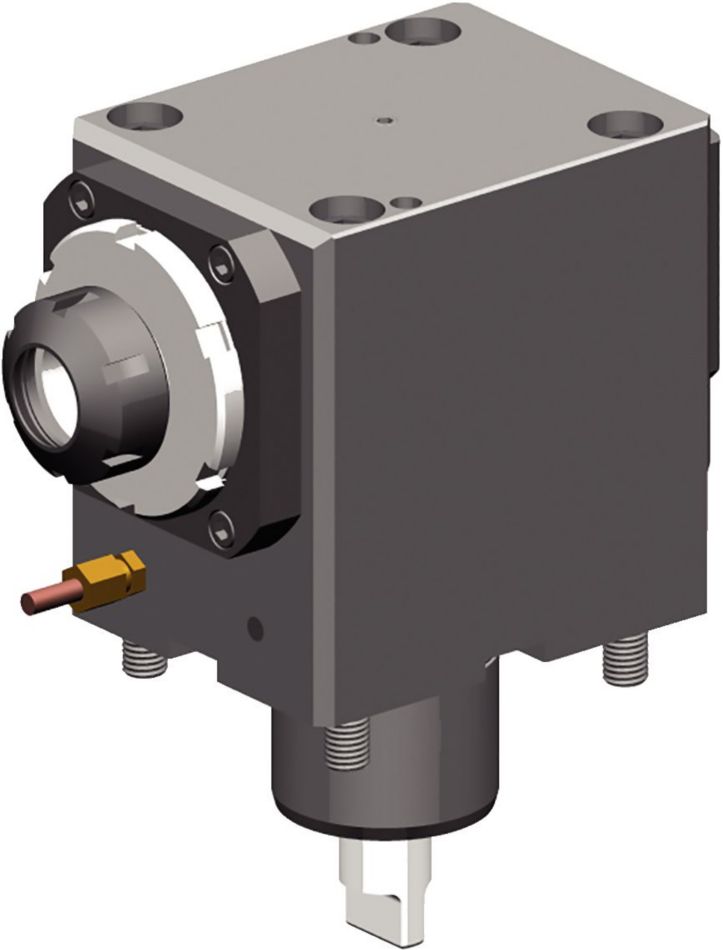

    Turret Adapted Clamping Units Driven Tool Radial • ER™
    Turret Adapted Clamping Units Driven Tool Radial • ER™
    Turret Adapted Clamping Units Driven Tool Radial • ER™
    Open expanded view
    Turret Adapted Clamping Units Driven Tool Radial • ER™
    Turret Adapted Clamping Units Driven Tool Radial • ER™
    Generic representation
    List Price
    $4,911.48/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • Through Coolant: Axial: DrillingThrough Coolant: Axial: Drilling
    • ER Solid ColletER Solid Collet
    • Shank - Screw-OnShank - Screw-On
    • Collet - ER DIN 6499Collet - ER DIN 6499
    {{cadTool}} format is not available

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

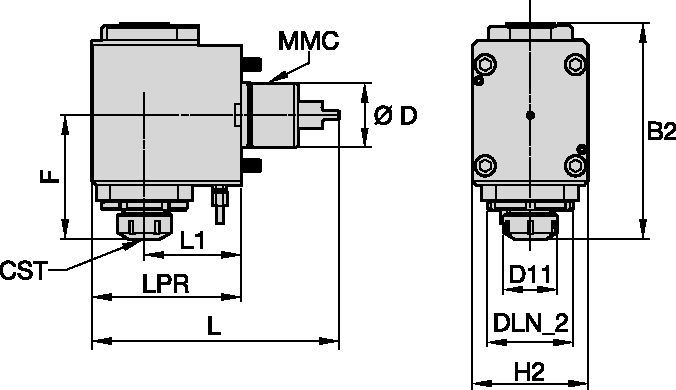

    Drawings for 6589003
    Metric
    Inch
    Material Number6589003
    ISO Catalog IDTACU002ER32DR61301863
    ANSI Catalog IDTACU002ER32DR61301863
    [CST] Catalog Collet SeriesER32
    Machine Mount Code002
    [B2] Overall Width 202 mm
    [B2] Overall Width 7.9528 in
    [D] Adapter / Shank / Bore Diameter59.9 mm
    [D] Adapter / Shank / Bore Diameter2.3583 in
    [D11] Lock Nut Diameter50 mm
    [D11] Lock Nut Diameter1.9685 in
    Lock Nut Diameter [DLN_2]80 mm
    [DLN_2] Lock Nut Diameter 23.1496 in
    [F] F Dimension 116.5 mm
    [F] F Dimension 4.5866 in
    [H2] Overall Height 108 mm
    [H2] Overall Height 4.252 in
    [L] Overall Length 230 mm
    [L] Overall Length 9.0551 in
    [L1] Gage Length90 mm
    [L1] Gage Length3.5433 in
    [LPR] Protruding Length 139 mm
    [LPR] Protruding Length 5.472 in
    Torque Machine Spindle Nm100
    Coolant Pressure Bar70
    Coolant Pressure PSI1000
    Coolant DeliveryI/E
    [CS1] Coolant Supply Exit SizeG 1/8
    Max RPM6000
    Weight Kilograms18.63
    Torque Newton Meters136
    Torque Foot Pounds100
    See all Product Variants

    Uses and application

    • Through Coolant: Axial: DrillingThrough Coolant: Axial: Drilling
    • ER Solid ColletER Solid Collet
    • Shank - Screw-OnShank - Screw-On
    • Collet - ER DIN 6499Collet - ER DIN 6499

    Features and benefits

    Machine Series:
    • NL/NLX 1500-4000 MC/Y/SMC/SY
    • NLX 4000 (High Torque Milling)
    • NT 4200-5400
    • NZX 2500 (12 Station Turret)
