    Driven Tool Radial • ER™ • TACU002ER32DR61301866, TACU002ER40DR61301843

    DMG Mori • Driven Tool Radial • ER™ • MMC 002

    Material Number6588962

    ISO Catalog IDTACU002ER40DR61301843ANSI Catalog IDTACU002ER40DR61301843

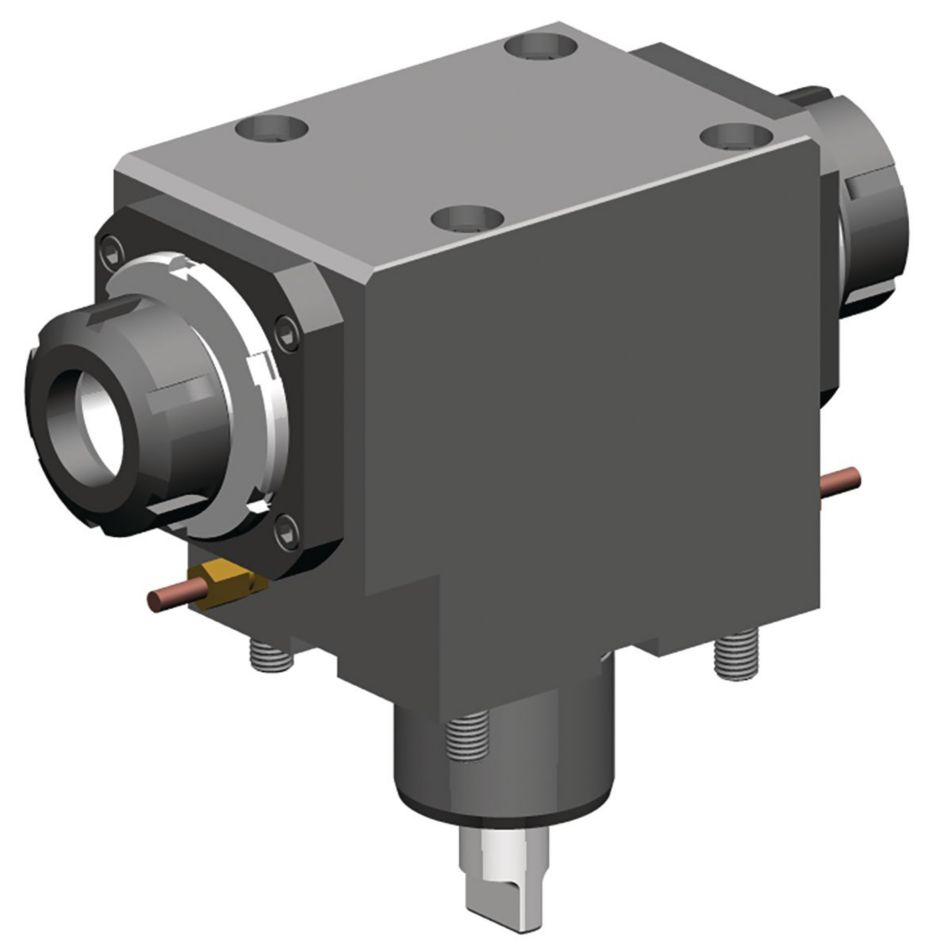

    Turret Adapted Clamping Units Driven Tool Radial • ER™
    Turret Adapted Clamping Units Driven Tool Radial • ER™
    Turret Adapted Clamping Units Driven Tool Radial • ER™
    Turret Adapted Clamping Units Driven Tool Radial • ER™
    Turret Adapted Clamping Units Driven Tool Radial • ER™
    Open expanded view
    Turret Adapted Clamping Units Driven Tool Radial • ER™
    Turret Adapted Clamping Units Driven Tool Radial • ER™
    Turret Adapted Clamping Units Driven Tool Radial • ER™+0
    Turret Adapted Clamping Units Driven Tool Radial • ER™
    Generic representation
    List Price
    $5,451.06/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • Through Coolant: Axial: DrillingThrough Coolant: Axial: Drilling
    • ER Solid ColletER Solid Collet
    • Shank - Screw-OnShank - Screw-On
    • Collet - ER DIN 6499Collet - ER DIN 6499
    {{cadTool}} format is not available

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

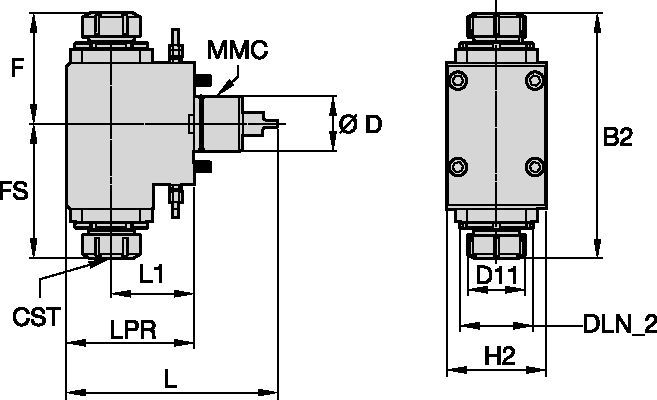

    Drawings for 6588962
    Drawings for 6588962
    Metric
    Inch
    Material Number6588962
    ISO Catalog IDTACU002ER40DR61301843
    ANSI Catalog IDTACU002ER40DR61301843
    MAR_ASTERISK*
    [CST] Catalog Collet SeriesER40
    Machine Mount Code002
    [B2] Overall Width 260 mm
    [B2] Overall Width 10.2362 in
    [D] Adapter / Shank / Bore Diameter59.9 mm
    [D] Adapter / Shank / Bore Diameter2.3583 in
    [D11] Lock Nut Diameter63 mm
    [D11] Lock Nut Diameter2.4803 in
    Lock Nut Diameter [DLN_2]80 mm
    [DLN_2] Lock Nut Diameter 23.1496 in
    [F] F Dimension 105.5 mm
    [F] F Dimension 4.1535 in
    [FS] Secondary F Dimension 131.5 mm
    [FS] Secondary F Dimension 5.1772 in
    [H2] Overall Height 108 mm
    [H2] Overall Height 4.252 in
    [L] Overall Length 230 mm
    [L] Overall Length 9.0551 in
    [L1] Gage Length90 mm
    [L1] Gage Length3.5433 in
    [LPR] Protruding Length 139 mm
    [LPR] Protruding Length 5.472 in
    Torque Machine Spindle Nm100
    Coolant Pressure Bar25
    Coolant Pressure PSI360
    Coolant DeliveryI/E
    [CS1] Coolant Supply Exit SizeG 1/8
    Max RPM6000
    Weight Kilograms21.56
    Torque Newton Meters176
    Torque Foot Pounds130
    See all Product Variants

    Uses and application

    • Through Coolant: Axial: DrillingThrough Coolant: Axial: Drilling
    • ER Solid ColletER Solid Collet
    • Shank - Screw-OnShank - Screw-On
    • Collet - ER DIN 6499Collet - ER DIN 6499

    Features and benefits

    Machine Series:
    • NL/NLX 1500-4000 MC/Y/SMC/SY
    • NLX 4000 (High Torque Milling)
    • NT 4200-5400
    • NZX 2500 (12 Station Turret)

    Create Solution to calculate Feeds and Speeds
