| Material Number | 1091592 |
| ISO Catalog ID | HPVLNA075G |
| ANSI Catalog ID | HPVLNA075G |
| Lock Nut Diameter [D11] | 50 mm |
| Lock Nut Diameter [D11] | 1.969 in |

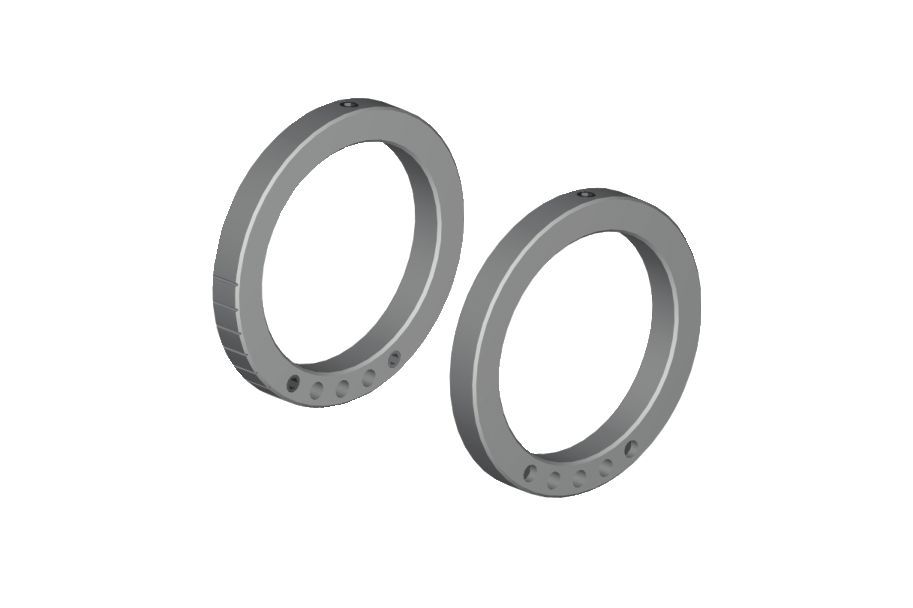

| [D12] Balance Ring Set Outside Diameter | 56.45 mm |
| [D12] Balance Ring Set Outside Diameter | 2.222 in |
| [L] Overall Length | 25 mm |
| [L] Overall Length | 0.984 in |
| [L23] Balance Ring Set Length | 12.05 mm |
| [L23] Balance Ring Set Length | 0.474 in |
| [LF] Functional Length | 14.398 mm |
| [LF] Functional Length | 0.567 in |
| [G3] Connection Thread Size Internal | 1 1/2-12 ACME |
| Wrench | HSW45M |
| Torque Catalog Newton Meters | 150 |
| Torque Catalog Foot Pounds | 110 |
