    TG Round-BTKV Form B/AD

    TG Single-Angle Collet Chucks

    Material Number3856667

    ISO Catalog IDBTKV50BTG150100MANSI Catalog IDBTKV50BTG150100M

    BTK Shank Tools TG Single-Angle Collet Chucks
    BTK Shank Tools TG Single-Angle Collet Chucks
    BTK Shank Tools TG Single-Angle Collet Chucks
    Open expanded view
    BTK Shank Tools TG Single-Angle Collet Chucks
    BTK Shank Tools TG Single-Angle Collet Chucks
    Generic representation
    List Price
    /each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • Drilling - Through CoolantDrilling - Through Coolant
    • Shank - Cylindrical PlainShank - Cylindrical Plain
    • Shank - Cylindrical WeldonShank - Cylindrical Weldon
    • Axial Adjustment - EndAxial Adjustment - End
    • Balance - G 6.3@15,000 min-1Balance - G 6.3@15,000 min-1
    • Shank - Cylindrical with SquareShank - Cylindrical with Square
    • Shank - SK BT Taper Face ContactShank - SK BT Taper Face Contact
    {{cadTool}} format is not available

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

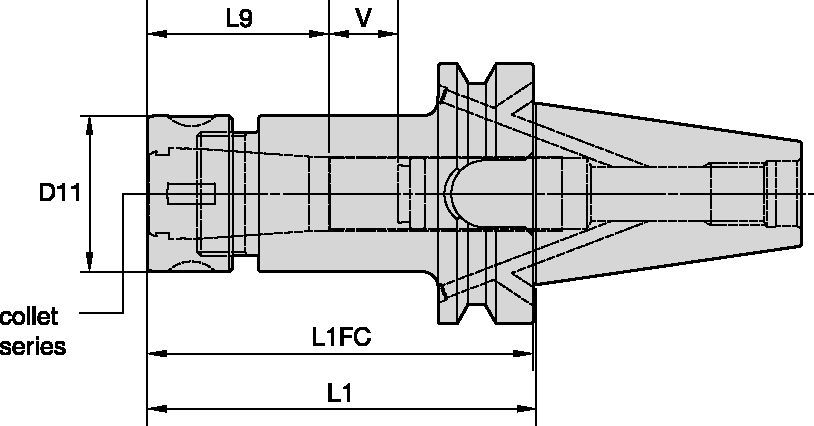

    Drawings for 3856667
    Metric
    Inch
    Material Number3856667
    ISO Catalog IDBTKV50BTG150100M
    ANSI Catalog IDBTKV50BTG150100M
    [CST] Catalog Collet SeriesTG150
    [D11] Lock Nut Diameter85 mm
    [D11] Lock Nut Diameter3.3465 in
    [L1] Gage Length100 mm
    [L1] Gage Length3.937 in
    Gage Length Face Contact [L1FC]98.5 mm
    Gage Length Face Contact [L1FC]3.878 in
    [L9] Clamping Length 78 mm
    [L9] Clamping Hole Length 3.0709 in
    [V] Adjustment Range 13 mm
    [V] Adjustment Range 0.5118 in
    Stop Screw ID Drive Size4 mm & 5/32
    Torque Catalog Newton Meters271
    Weight Kilograms4.43
    See all Product Variants

    Uses and application

    • Drilling - Through CoolantDrilling - Through Coolant
    • Shank - Cylindrical PlainShank - Cylindrical Plain
    • Shank - Cylindrical WeldonShank - Cylindrical Weldon
    • Axial Adjustment - EndAxial Adjustment - End
    • Balance - G 6.3@15,000 min-1Balance - G 6.3@15,000 min-1
    • Shank - Cylindrical with SquareShank - Cylindrical with Square
    • Shank - SK BT Taper Face ContactShank - SK BT Taper Face Contact

    Create Solution to calculate Feeds and Speeds

    After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.

    I have read and accepted the Terms & Conditions of use

    CAD Drawings Models

    Can’t find the file type you’re looking for?

    Product data

    SDS

    Safety Data Sheets

    Product Name
    Material Number
    ISO Catalog ID
    ANSI Catalog ID

    TG150 Series • Inch
    TG150 Series • Inch
    1014002
    150TG0688
    150TG0688
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    TG150 Series • Inch
    TG150 Series • Inch
    1014032
    150TG0750
    150TG0750
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    TG150 Series • Inch
    TG150 Series • Inch
    1014074
    150TG0875
    150TG0875
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    TG150 Series • Inch
    TG150 Series • Inch
    1014106
    150TG1000
    150TG1000
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    TG150 Series • Inch
    TG150 Series • Inch
    1014108
    150TG1031
    150TG1031
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    TG150 Series • Inch
    TG150 Series • Inch
    1014112
    150TG1125
    150TG1125
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    TG150 Series • Inch
    TG150 Series • Inch
    1014134
    150TG1187
    150TG1187
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    TG150 Series • Inch
    TG150 Series • Inch
    1014135
    150TG1219
    150TG1219
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    TG150 Series • Inch
    TG150 Series • Inch
    1014137
    150TG1250
    150TG1250
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    TG150 Series • Inch
    TG150 Series • Inch
    1014140
    150TG1281
    150TG1281
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery

    Product Name
    Material Number
    ISO Catalog ID
    ANSI Catalog ID

    LOCKNUT LNA 150M
    LOCKNUT LNA 150M
    1013484
    LNA150M
    LNA150M
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    STOP SCREW
    STOP SCREW
    1020017
    SS162062G
    SS162062G
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    WRENCH
    WRENCH
    1192231
    HSW80M
    HSW80M
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
