| Material Number | 7233156 |
| ISO Catalog ID | L4BPHM040C24R010 |
| ANSI Catalog ID | L4BPHM040C24R010 |
| Grade | KCHS25S |

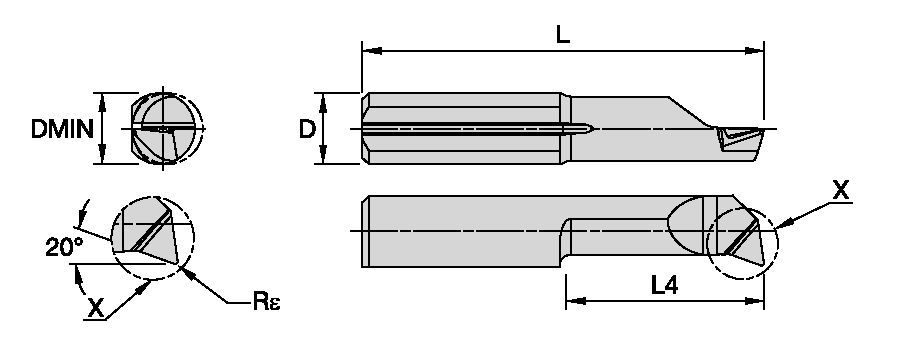

| [DM] Minimum Bore Diameter | 4 mm |
| [DM] Minimum Bore Diameter | 0.1575 in |
| [D] Adapter / Shank / Bore Diameter | 4 mm |
| [D] Adapter / Shank / Bore Diameter | 0.1575 in |
| [Rε] Corner Radius | 0.1 mm |
| [Rε] Corner Radius | 0.004 in |
| [L4] Maximum Boring Depth | 24 mm |
| [L4] Maximum Boring Depth | 0.9449 in |
| [L] Overall Length | 38 mm |
| [L] Overall Length | 1.4961 in |
