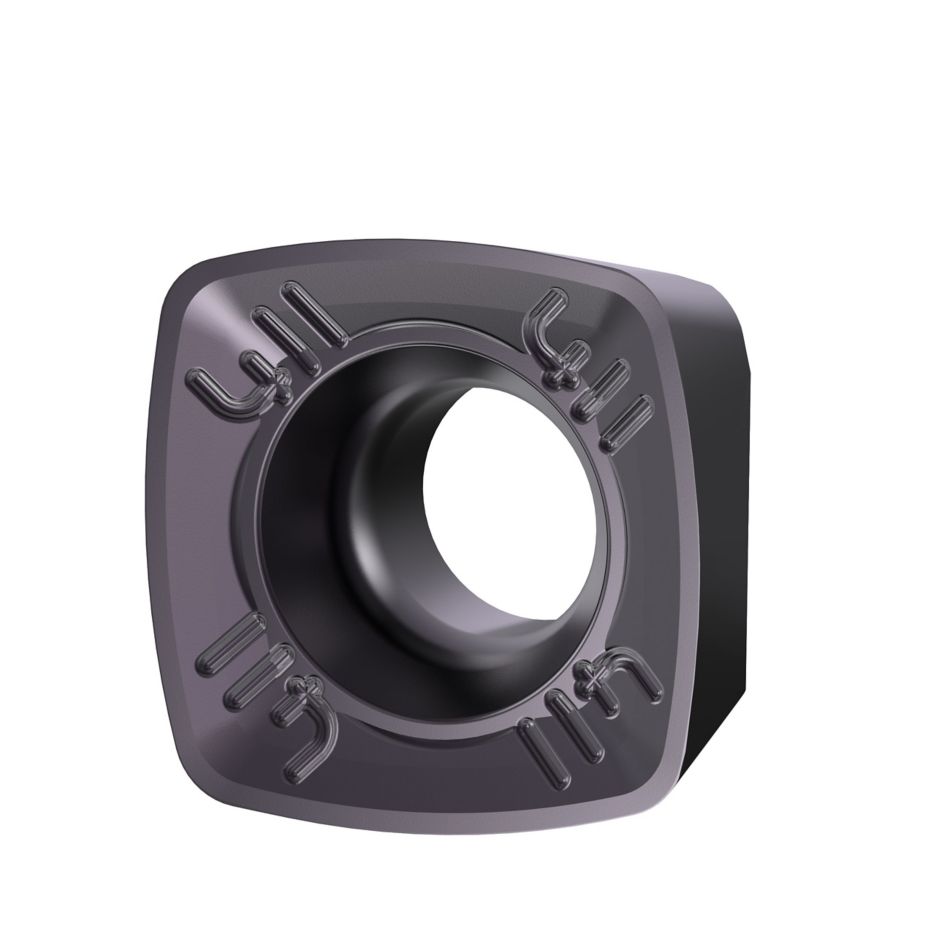

7792VXD09 Series • Carbide Insert • XDLT-D411 • Light Machining

High-feed copy milling insert with four cutting edges, precision ground.

Metric
Inch
SAP Material Number 5652249
ISO Catalog Number XDLT090412ERD411
ANSI Catalog Number XDLT090412ERD411
Grade SP6519
[D] Insert IC Size 9.525 mm
[D] Insert IC Size .375 in
[LI] Insert Length 9.525 mm
[LI] Insert Length .375 in
[S] Insert Thickness 4.75 mm
[S] Insert Thickness .187 in
[Rε] Corner Radius 1.194 mm
[Rε] Corner Radius .047 in
Average Chip Thickness [HM] 0.05 mm
Average Chip Thickness [HM] .002 in
[RT] Theoretical Corner Radius Programing 2.27 mm
[RT] Theoretical Corner Radius Programing .089 in
See all Product Variants

Workpiece Materials

P Steel
M Stainless Steel
S High-Temp Alloys

Features and benefits

  • Precision ground insert for best surface finish.

  • Single-sided copy milling insert for machining of steels, stainless steel, and high-temperature alloys.
