DUO-LOCK™ • KenCut™ CM • Multi-Flute • Inch
Modular End Milling • XRDA Style
Features and benefits
- Non-center cutting.
- Standard items listed. Additional styles and coatings made-to-order.
Uses and application
Side/Shoulder Milling: Radius
Helix Angle: 0°
Tool Dimensions: Flute Configuration: X (variable)
Workpiece Materials
P
Steel
M
Stainless Steel
K
Cast Iron
N
Non-Ferrous
S
High-Temp Alloys
H
Hardened Materials
Filters and Columns
Filters
Filters
Filters
View filters in
Metric
Inch
Workpiece Material
Workpiece Material
-
P Steel (6)
-
P0Low-Carbon Steels, Long Chipping C < .25%; <125 HB; <530 N/mm^2 UTS(6)
-
P1Low-Carbon Steels, Short Chipping C < .25%; <125 HB; <530 N/mm^2 UTS(6)
-
P2Medium and High Carbon Steels C < .25%; <220 HB; <25 HRC; >530 N/mm^2 UTS(6)
-
P3Alloy Steels & Tool Steels C > .25%; <330 HB; <35 HRC; 600-850 N/mm^2 UTS(6)
-
P4Alloy Steels & Tool Steels C > .25%; 350-420 HB; 35-43 HRC; 850-1400 N/mm^2 UTS(6)
-
P5Ferritic, Martensitic, and PH Stainless Steels <330 HB; <35 HRC; 600-900 N/mm^2 UTS(6)
-
P6High Strength Ferritic, Martensitic, and PH Stainless Steels 350-450 HB; 35-43 HRC; 900-2400 N/mm^2 UTS(6)
-
-
M Stainless Steel (6)
-
M1Austenitic Stainless Steel 130-200 HB; <600 N/mm^2 UTS(6)
-
M2High Strength Austenitic Stainless and Cast Stainless Steels 150-230 HB; <25 HRC; >600 N/mm^2 UTS(6)
-
M3Duplex Stainless Steel 135-275 HB; <30 HRC; 500-1200 N/mm^2 UTS(6)
-
-
K Cast Iron (6)
-
K1Gray Cast Iron 120-290 HB; <32 HRC; 125-500 N/mm^2 UTS(6)
-
K2Low and Medium Strength CGI and Ductile Irons 130-260 HB; <28 HRC; <600 N/mm^2 UTS(6)
-
K3High Strength Ductile and Austempered Ductile Iron 180-350 HB; <43 HRC; >600 N/mm^2 UTS(6)
-
-
N Non-Ferrous Materials (6)
-
N1Wrought Aluminum(6)
-
N2Low-Silicon Aluminum Alloys and Magnesium Alloys Si <12.2%(6)
-
N3High-Silicon Aluminum Alloys Si >12.2%(6)
-
N4Copper, Brass, Zinc-based on machinability index range of 70-100(6)
-
N5Nylon, Plastics, Rubbers, Phenolics, Resins, Fiberglass(6)
-
N6Carbon, Graphite Composites, CFRP(6)
-
N7MMC's(6)
-
-
S High-Temp Alloys (6)
-
S1Iron-Based, Heat-Resistant Alloys 160-260 HB; 25-48 HRC; 500-1200 N/mm^2 UTS(6)
-
S2Cobalt-Based, Heat-Resistant Alloys 250-450 HB; 25-48 HRC; 1000-1450 N/mm^2 UTS(6)
-
S3Nickel-Based, Heat Resistant Alloys 160-450 HB; <48 HRC; 600-1700 N/mm^2 UTS(6)
-
S4Titanium and Titanium Alloys 300-400 HB; 33-43 HRC; 900-1600 N/mm^2 UTS(6)
-
-
H Hardened Materials (6)
-
H1Hardened Materials 44-48 HRC(6)
-
Cutting Diameter
Cutting Diameter
-
0.135 in (1)
-
0.255 in (1)
-
0.26 in (1)
-
0.38 in (1)
-
0.44 in (1)
-
0.505 in (1)
to
Cutting Diameter
Cutting Diameter
-
3.426 mm (1)
-
6.476 mm (1)
-
6.601 mm (1)
-
9.65 mm (1)
-
11.175 mm (1)
-
12.826 mm (1)
to
Maximum Cutting Diameter
Maximum Cutting Diameter
-
9.525 mm (2)
-
12.701 mm (3)
-
15.875 mm (1)
to
Maximum Cutting Diameter
Maximum Cutting Diameter
-
0.375 in (2)
-
0.5 in (3)
-
0.625 in (1)
to
Cutting Length
Cutting Length
-
0.75 mm (1)
-
1.526 mm (3)
-
3.051 mm (2)
to
Cutting Length
Cutting Length
-
0.03 in (1)
-
0.06 in (3)
-
0.12 in (2)
to
Reach
Reach
-
0.847 in (1)
-
0.852 in (1)
-
1.131 in (1)
-
1.133 in (1)
-
1.137 in (1)
-
1.41 in (1)
to
Reach
Reach
-
21.526 mm (1)
-
21.651 mm (1)
-
28.725 mm (1)
-
28.75 mm (1)
-
28.85 mm (1)
-
35.825 mm (1)
to
Number of Flutes
Number of Flutes
-
4 (2)
-
5 (3)
-
6 (1)
Corner Radius
Corner Radius
-
0.03 in (1)
-
0.06 in (3)
-
0.12 in (2)
to
Corner Radius
Corner Radius
-
0.75 mm (1)
-
1.526 mm (3)
-
3.051 mm (2)
to
Back-End
Back-End Diameter
Back-End Diameter
-
9.125 mm (2)
-
12.201 mm (3)
-
15.375 mm (1)
to
Back-End Diameter
Back-End Diameter
-
0.359 in (2)
-
0.48 in (3)
-
0.605 in (1)
to
No filters matching ""
Change the visible columns with any of the parameters listed below. A maximum of 7 columns can be displayed.
Displaying
1- 6
of 6 results
Metric
Inch
Show
Metric
Inch

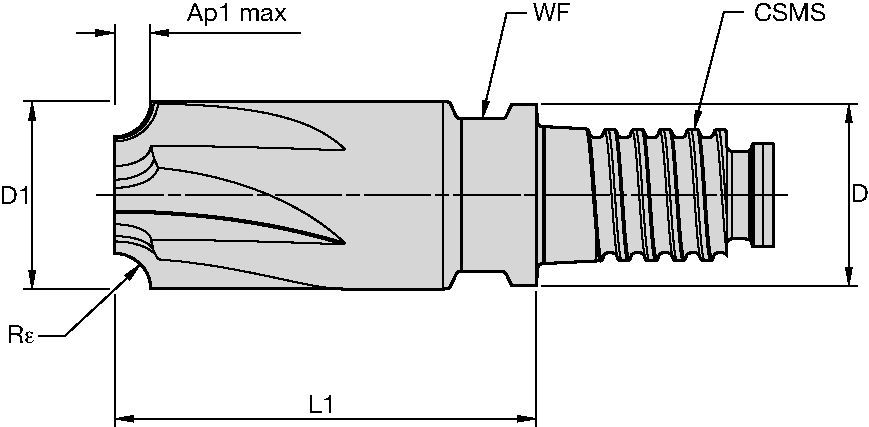

| SAP Material Number | ISO Catalog Number | ANSI Catalog Number | Grade | Adapter Style Machine Side | [D] Adapter / Shank / Bore Diameter | [D] Adapter / Shank / Bore Diameter | [AP1MAX] 1st Maximum Cutting Depth | [AP1MAX] 1st Maximum Cutting Depth | [L1] Gage Length | [L1] Gage Length | [CSMS] System Size Machine Side | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6127709 | XRDA0375Y4CUC | XRDA0375Y4CUC | KCPM15 | DUO-LOCK | 9.125 | .3593 | 1.5240 | .0600 | 21.5240 | .8474 | DL10 |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
List price:
$95.08
/each
Your price:
Qty
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 6127710 | XRDA0375Y4CUE | XRDA0375Y4CUE | KCPM15 | DUO-LOCK | 9.125 | .3593 | 3.0480 | .1200 | 21.6480 | .8523 | DL10 |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
List price:
$95.08
/each
Your price:
Qty
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 6127711 | XRDA0500Y5CUB | XRDA0500Y5CUB | KCPM15 | DUO-LOCK | 12.2 | .4803 | 0.7620 | .0300 | 28.7620 | 1.132 | DL12 |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
List price:
$128.92
/each
Your price:
Qty
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 6127712 | XRDA0500Y5CUC | XRDA0500Y5CUC | KCPM15 | DUO-LOCK | 12.2 | .4803 | 1.5240 | .0600 | 28.7240 | 1.130 | DL12 |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
List price:
$128.92
/each
Your price:
Qty
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 6127713 | XRDA0500Y5CUE | XRDA0500Y5CUE | KCPM15 | DUO-LOCK | 12.2 | .4803 | 3.0480 | .1200 | 28.8480 | 1.135 | DL12 |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
List price:
$128.92
/each
Your price:
Qty
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 6127714 | XRDA0625Y6CUC | XRDA0625Y6CUC | KCPM15 | DUO-LOCK | 15.375 | .6053 | 1.5240 | .0600 | 35.8240 | 1.410 | DL16 |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
List price:
$264.23
/each
Your price:
Qty
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
List price:
Discount: %
Replacement
This item is no longer available
Replacement Product Please contact customer service for assistance
Replacement Product Please contact customer service for assistance
Qty
Sold in pkg. of
Grades
-
KCPM15
Coated carbide grade with thick PVD coating and optimized chemistry and process for increased wear resistance. Outstanding protection in milling stainless steel to mitigate crater, DOCN (depth-of-cut notching), and flank wear. Excellent performance up to 52 HRC.
P SteelS High-Temp AlloysH Hardened MaterialsK Cast IronM Stainless SteelN Non-Ferrous
| End Mill Tolerances | |
| D1 | tolerance e8 |
| 13/32 23/32" | -0,00126"/-0,00232" |
| 23/32 1-3/16" | -0,00157"/-0,00287" |
XRDA • Inch
| Material Group |  <="" td=""> |  <="" td="" /> |
||||||||||||||
| Corner Rounding | short | medium | long | Recommended feed per tooth (IPT = inch/th) for side milling (A). | ||||||||||||
| A | adapter reach | D1 Diameter | ||||||||||||||
| KCPM15 | KCPM15 | KCPM15 | ||||||||||||||
| Cutting Speed vc SFM | Cutting Speed vc SFM | Cutting Speed vc SFM | frac. | 3/8 | 1/2 | 5/8 | ||||||||||
| ap | ae | Min | Max | Min | Max | Min | Max | dec. | .375 | .500 | .625 | |||||
| P | 0 | 0.35 x D | 0.35 x D | 490 | – | 660 | 441 | – | 594 | 441 | – | 594 | IPT | .0022 | .0027 | .0032 |
| 1 | 0.35 x D | 0.35 x D | 490 | – | 660 | 441 | – | 594 | 441 | – | 594 | IPT | .0022 | .0027 | .0032 | |
| 2 | 0.35 x D | 0.35 x D | 460 | – | 620 | 414 | – | 558 | 414 | – | 558 | IPT | .0022 | .0027 | .0032 | |
| 3 | 0.35 x D | 0.35 x D | 390 | – | 520 | 351 | – | 468 | 351 | – | 468 | IPT | .0018 | .0023 | .0027 | |
| 4 | 0.35 x D | 0.35 x D | 300 | – | 490 | 270 | – | 441 | 270 | – | 441 | IPT | .0016 | .0021 | .0024 | |
| 5 | 0.35 x D | 0.35 x D | 200 | – | 330 | 170 | – | 280.5 | 160 | – | 264 | IPT | .0015 | .0018 | .0022 | |
| 6 | 0.35 x D | 0.35 x D | 160 | – | 250 | 136 | – | 212.5 | 128 | – | 200 | IPT | .0012 | .0015 | .0018 | |
| M | 1 | 0.35 x D | 0.35 x D | 300 | – | 380 | 240 | – | 304 | 210 | – | 266 | IPT | .0018 | .0023 | .0027 |
| 2 | 0.35 x D | 0.35 x D | 200 | – | 260 | 160 | – | 208 | 140 | – | 182 | IPT | .0015 | .0018 | .0022 | |
| 3 | 0.35 x D | 0.35 x D | 200 | – | 230 | 160 | – | 184 | 140 | – | 161 | IPT | .0012 | .0015 | .0018 | |
| K | 1 | 0.35 x D | 0.35 x D | 390 | – | 490 | 351 | – | 441 | 351 | – | 441 | IPT | .0022 | .0027 | .0032 |
| 2 | 0.35 x D | 0.35 x D | 360 | – | 460 | 324 | – | 414 | 324 | – | 414 | IPT | .0018 | .0023 | .0027 | |
| 3 | 0.35 x D | 0.35 x D | 360 | – | 430 | 324 | – | 387 | 324 | – | 387 | IPT | .0015 | .0018 | .0022 | |
| N | 1 | 0.35 x D | 0.35 x D | 1640 | – | 6560 | 1312 | – | 5248 | 984 | – | 3936 | IPT | .0030 | .0040 | .0050 |
| 2 | 0.35 x D | 0.35 x D | 1640 | – | 4920 | 1312 | – | 3936 | 984 | – | 2952 | IPT | .0024 | .0032 | .0040 | |
| 3 | 0.35 x D | 0.35 x D | 1640 | – | 4920 | 1312 | – | 3936 | 984 | – | 2952 | IPT | .0021 | .0028 | .0035 | |
| 4 | 0.35 x D | 0.35 x D | 1310 | – | 2460 | 1048 | – | 1968 | 786 | – | 1476 | IPT | .0021 | .0028 | .0035 | |
| 5 | 0.35 x D | 0.35 x D | 820 | – | 3280 | 656 | – | 2624 | 492 | – | 1968 | IPT | .0027 | .0036 | .0045 | |
| 6 | 0.35 x D | 0.35 x D | 330 | – | 2460 | 264 | – | 1968 | 198 | – | 1476 | IPT | .0030 | .0040 | .0050 | |
| 7 | 0.35 x D | 0.35 x D | 330 | – | 2460 | 264 | – | 1968 | 198 | – | 1476 | IPT | .0021 | .0028 | .0035 | |
| S | 1 | 0.35 x D | 0.35 x D | 160 | – | 300 | 128 | – | 240 | 96 | – | 180 | IPT | .0018 | .0023 | .0027 |
| 2 | 0.35 x D | 0.35 x D | 80 | – | 130 | 64 | – | 104 | 48 | – | 78 | IPT | .0010 | .0012 | .0015 | |
| 3 | 0.35 x D | 0.35 x D | 80 | – | 130 | 64 | – | 104 | 48 | – | 78 | IPT | .0010 | .0012 | .0015 | |
| 4 | 0.35 x D | 0.35 x D | 160 | – | 200 | 128 | – | 160 | 96 | – | 120 | IPT | .0013 | .0017 | .0020 | |
| H | 1 | 0.35 x D | 0.35 x D | 260 | – | 460 | 208 | – | 368 | 156 | – | 276 | IPT | .0016 | .0021 | .0024 |
