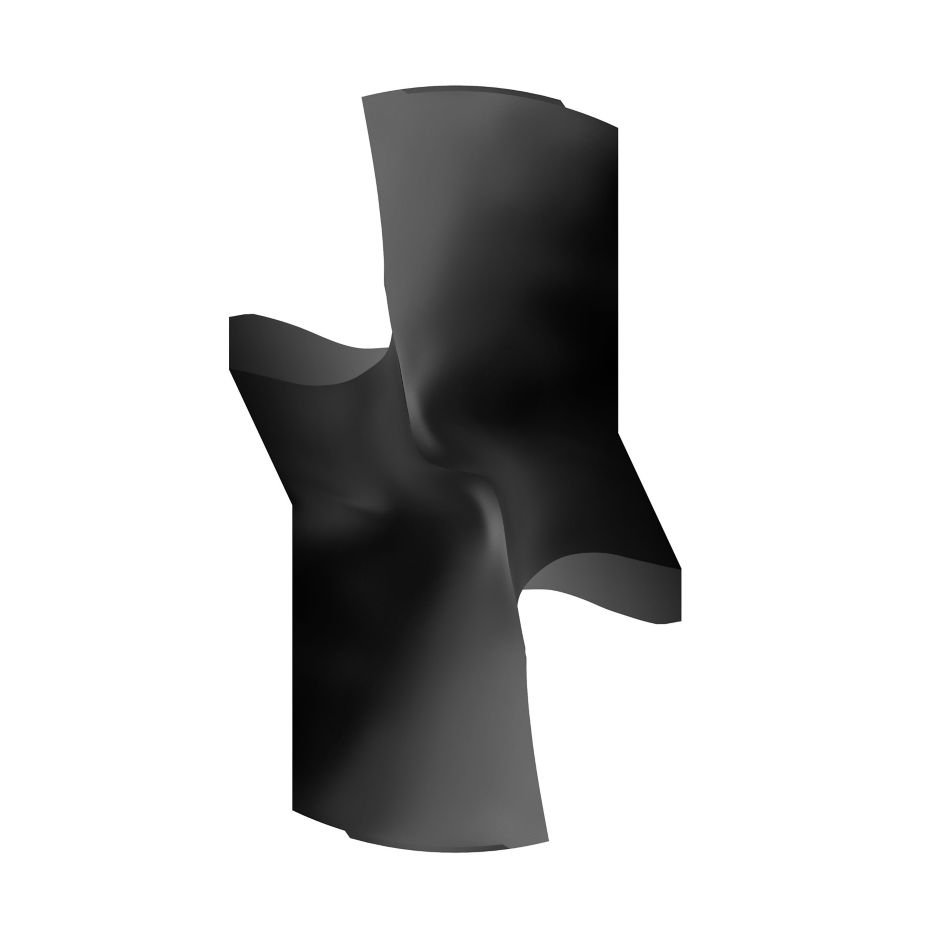

KSEM™ • Center Insert • HPG Geometry

Modular Drilling • Carbide Insert for KSEM™

Features and benefits

  • HPG geometry for modular drilling in alloyed steels.

  • With straight cutting edge for maximum stability in short chipping steels and interrupted cuts.

Uses and application

  • DrillingDrilling
  • Drilling: Inclined ExitDrilling: Inclined Exit
  • Drilling: Stacked PlatesDrilling: Stacked Plates
  • Tool Dimensions: 2flute/2margin/coolantTool Dimensions: 2flute/2margin/coolant
  • Through Coolant: MQL (Minimum Quantity Lubricant): DrillingThrough Coolant: MQL (Minimum Quantity Lubricant): Drilling
  • Drilling - Through CoolantDrilling - Through Coolant
