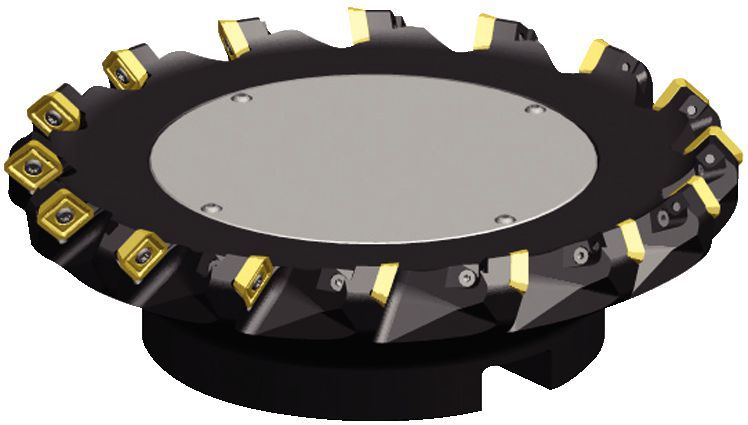

Beyond BLAST™ KSSM™ 45° • 14mm IC • Shell Mills • Metric

Shell Mills

SAP Material Number 4147355
ISO Catalog Number 125B12RS45SE14BB
ANSI Catalog Number 125B12RS45SE14BB
[D1] Effective Cutting Diameter 125 mm
[D1] Effective Cutting Diameter 4.921 in
[D1MAX] Maximum Cutting Diameter 138.67 mm
[D1MAX] Maximum Cutting Diameter 5.46 in
[D] Adapter / Shank / Bore Diameter 40 mm
[D] Adapter / Shank / Bore Diameter 1.574 in
[D6] Hub Diameter 90 mm
[D6] Hub Diameter 3.543 in
[L] Overall Length 63 mm
[L] Overall Length 2.48 in
[AP1MAX] 1st Maximum Cutting Depth 6.6 mm
[AP1MAX] 1st Maximum Cutting Depth .26 in
Number of Inserts 12
Weight Kilograms 3.35
Max RPM 11600
See all Product Variants
Create Solution to calculate Feeds & Speeds

Uses and application

  • Face MillingFace Milling
  • Side Milling/Shoulder Milling: Eased ChamferSide Milling/Shoulder Milling: Eased Chamfer
  • Milling - Through CoolantMilling - Through Coolant
  • Milling - Side and FaceMilling - Side and Face

Workpiece Materials

P Steel
M Stainless Steel
S High-Temp Alloys

Features and benefits

  • Precision Coolant Technology (PCT).

  • Coolant delivery exactly to cutting area.

  • Increased heat transfer.

  • Improved chip control.

  • Productivity booster for machining titanium.

  • High coolant pressure capabilities.

Machine Side


Workpiece Side


Spare Parts for Beyond BLAST™ KSSM™ 45° • 14mm IC • Shell Mills • Metric

Spare Part
    Spare Part
      Spare Part
        Spare Part
