DFSP Weldon Shank • DIN 1835 -1 Form B • 4 x D

Drill Fix™ DFSP™ Bodies

Metric
Inch
SAP Material Number 6075724
ISO Catalog Number DFSP175R4WB25M
ANSI Catalog Number DFSP175R4WB25M

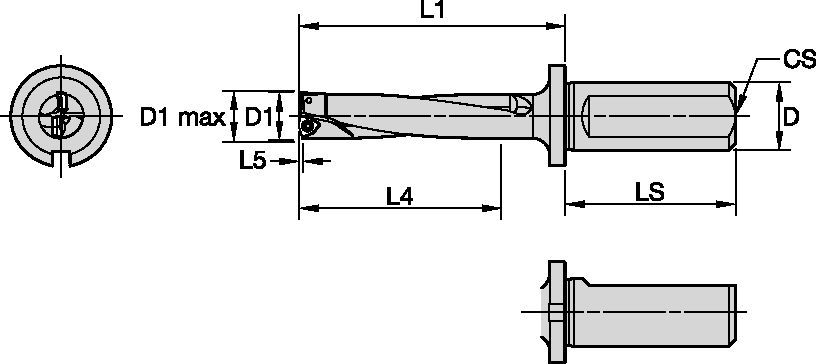

[D] Adapter / Shank / Bore Diameter 25 mm
[D] Adapter / Shank / Bore Diameter .984 in
[D1] Drill Diameter M 17.5 mm
[D1] Drill Diameter M .689 in
[D1MAX] Drill Diameter Maximum 18.5 mm
[D1MAX] Drill Diameter Maximum .7283 in
[L1] Insert Gage Length 99 mm
[L1] Insert Gage Length 3.898 in
[L4] Maximum Drilling Depth 70 mm
[L4] Maximum Drilling Depth 2.756 in
[L5] Drill Point Length 0.49 mm
[L5] Drill Point Length .019 in
[LS] Shank Length 56 mm
[LS] Shank Length 2.205 in
Gage Insert SPGX0603.
Gage Insert 2 DFT0303.
See all Product Variants

Uses and application

  • DrillingDrilling
  • Drilling: Inclined EntryDrilling: Inclined Entry
  • Drilling: Inclined ExitDrilling: Inclined Exit
  • Drilling: X-OffsetDrilling: X-Offset
  • Drilling: ConvexDrilling: Convex
  • Drilling: BlindDrilling: Blind
  • Chain DrillingChain Drilling
  • Drilling: Cross-Hole DrillingDrilling: Cross-Hole Drilling
  • Drilling:  Half-Cylindrical DrillingDrilling: Half-Cylindrical Drilling
  • Drilling: Corner Drilling 45°Drilling: Corner Drilling 45°
  • Drilling - Through CoolantDrilling - Through Coolant
  • Shank - Cylindrical with FlatShank - Cylindrical with Flat

Workpiece Materials

P Steel
M Stainless Steel
K Cast Iron
N Non-Ferrous
S High-Temp Alloys
H Hardened Materials

Features and benefits

  • DFSP combines the economical squared outboard insert with the superior centring capabilities of the trigon inboard insert.

  • Drill shipped with insert screws, side pipe plug, and Torx wrench.

  • Order inserts for DFSP separately. See pages [REFERENCE] for inserts.

Machine Side

loading...

Workpiece Side

loading...

Warnings • Drill Fix DFR

Spare Parts for DFSP Weldon Shank • DIN 1835 -1 Form B • 4 x D

Spare Part
    TORX-WRENCH TX7 TORX-WRENCH TX7
    TORX-WRENCH TX7
    Spare Part
      INSERT SCR M2.2-0.45 x 6.3 T7 INSERT SCR M2.2-0.45 x 6.3 T7
      INSERT SCR M2.2-0.45 x 6.3 T7
