      DUO-LOCK™ • KenFeed™ • KMDA • Radiused • 6 Flutes • Inch

      DUO-LOCK™ • KenFeed™ • 6 FLUTES

      Metric
      Inch
      SAP Material Number 6197713
      ISO Catalog Number KMDA0500Y6BQX
      ANSI Catalog Number KMDA0500Y6BQX
      Grade KC639M
      Adapter Style Machine Side DUO-LOCK
      [D] Adapter / Shank / Bore Diameter 12.2 mm
      [D] Adapter / Shank / Bore Diameter .4803 in

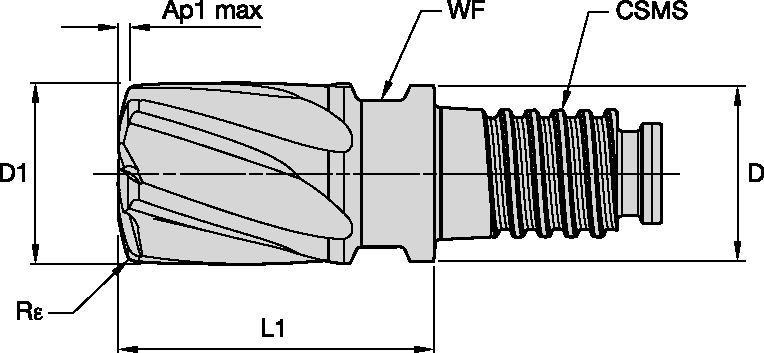

      [AP1MAX] 1st Maximum Cutting Depth 0.6800 mm
      [AP1MAX] 1st Maximum Cutting Depth .0268 in
      [L1] Gage Length 22.2500 mm
      [L1] Gage Length .8760 in
      [CSMS] System Size Machine Side DL12
      [WF] Width of Flat 9.5000 mm
      [WF] Width of Flat .3740 in
      [Re] Corner Radius 0.7940 mm
      [Re] Corner Radius .0313 in
      [Z] Number of Flutes 6
      [D1] Effective Cutting Diameter 12.7000 mm
      [D1] Effective Cutting Diameter .5000 in
      See all Product Variants

      Uses and application

      • Ramping: BlankRamping: Blank
      • 3D Profiling3D Profiling
      • Corner Style: TorusCorner Style: Torus
      • Helix Angle: 20°Helix Angle: 20°
      • Tool Dimensions: Flute Configuration: 6Tool Dimensions: Flute Configuration: 6

      Workpiece Materials

      P Steel
      H Hardened Materials

      Features and benefits

      • Non-center cutting.

      • Optimized geometry for high-feed machining.

      • Standard items listed. Additional styles and coatings made-to-order.

      Machine Side

      loading...

      Workpiece Side

      loading...

      Grades

      • KC639M
        KC639M

        PVD- (AlTiN) coated carbide on a submicron carbide substrate. This hard coating provides outstanding performance in milling hardened materials (58–65 HRC).

        P Steel
        H Hardened Materials
      Toleranzen für Schaftfräser
      D1 Toleranz e8
      13/32 23/32" -0,00126"/-0,00232"
      23/32 1-3/16" -0,00157"/-0,00287"
      1-3/16" -0,00197''/-0,00350''
      Geometrische Parameter Ramping Guide for Circular and Linear Ramping
      Zirkulare Interpolation Linear Ramping
      Optimal Range of Circle Diameter for a Single Pass Calculated Length per Ramp Angle
      Katalognummer D1 Ap1 max R Rε YRC RCN Minimal Maximal 1° 2° 3° 4° 5°
      KMDA0375Y6BQX 3/8 0.0123 0.375 0.0240 0.0469 0.0825 0.540 0.750 0.706 0.353 0.235 0.176 0.141
      KMDA0500Y6BQX 1/2 0.0164 0.500 0.0320 0.0625 0.1100 0.720 1.000 0.941 0.470 0.313 0.235 0.188
      KMDA0625Y6BQX 5/8 0.0205 0.625 0.0400 0.0781 0.1375 0.900 1.250 1.176 0.588 0.392 0.294 0.235
      KMDA0750Y6BQX 3/4 0.0246 0.750 0.0470 0.0938 0.1650 1.080 1.500 1.411 0.705 0.470 0.352 0.282
      recommended % of programmed feed rate to use while ramping 100% 70% 50% 30% 10%
