RHR • Disc Style Reamer Head • Straight Fluted with Internal Coolant

Modular Disc Style Reamers • Straight Fluted for Blind Holes

Metric
Inch
SAP Material Number 6055330
ISO Catalog Number RHR42000KST350H7HF
ANSI Catalog Number RHR42000KST350H7HF
Grade KCU05

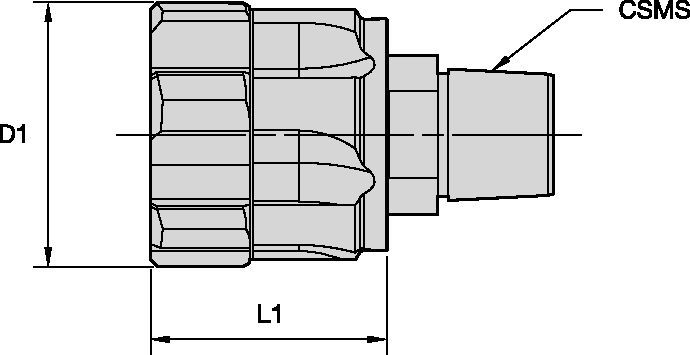

[CSMS] System Size Machine Side KST350
[D1] Reamer Diameter Minimum 42 mm
[D1] Reamer Diameter Minimum 1.653 in
[L1] Gage Length 20.4 mm
[L1] Gage Length .8031 in
[Z] Number of Flutes 8
See all Product Variants

Uses and application

  • Reaming: Blind HoleReaming: Blind Hole
  • Reaming: Blind & CrossReaming: Blind & Cross
  • Through Coolant: Axial: ReamingThrough Coolant: Axial: Reaming

Workpiece Materials

P Steel
M Stainless Steel
K Cast Iron
S High-Temp Alloys

Features and benefits

  • For hole tolerance H7.

  • Intermediate sizes ground to achieve IT6 or IT7 hole tolerance class available.

  • Please order lock screw and retention knob separately.
