KSSM 45° • Cylindrical End Mills • Metric

End Mills

SAP Material Number 3127213
ISO Catalog Number 50D4R049A32SSE14G
ANSI Catalog Number 50D4R049A32SSE14G

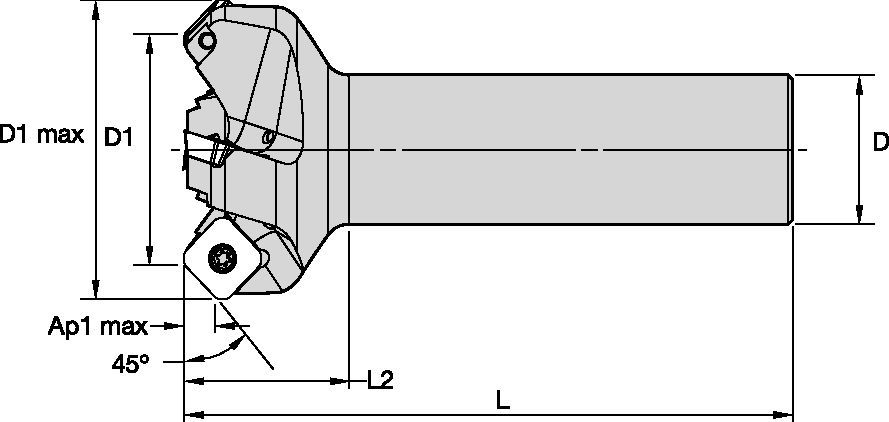

[D1] Effective Cutting Diameter 50 mm
[D1] Effective Cutting Diameter 1.969 in
[D1MAX] Maximum Cutting Diameter 63.88 mm
[D1MAX] Maximum Cutting Diameter 2.515 in
[D] Adapter / Shank / Bore Diameter 32 mm
[D] Adapter / Shank / Bore Diameter 1.259 in
[L] Overall Length 130 mm
[L] Overall Length 5.118 in
[L2] Head Length 49 mm
[L2] Head Length 1.929 in
[AP1MAX] 1st Maximum Cutting Depth 6.6 mm
[AP1MAX] 1st Maximum Cutting Depth .26 in
Number of Inserts 4
Weight Kilograms 0.92
Max RPM 23250
See all Product Variants

Uses and application

  • Face MillingFace Milling
  • Side Milling/Shoulder Milling: Eased ChamferSide Milling/Shoulder Milling: Eased Chamfer
  • Shank - Cylindrical  PlainShank - Cylindrical Plain
  • Milling - Through CoolantMilling - Through Coolant

Workpiece Materials

P Steel
M Stainless Steel
K Cast Iron
N Non-Ferrous
S High-Temp Alloys
H Hardened Materials

Features and benefits

  • Rapid insert changes.

  • Suitable for a wide variety of workpiece materials.

Machine Side


Workpiece Side


Spare Parts for KSSM 45° • Cylindrical End Mills • Metric

Spare Part
    INSERT SCR M3.5-0.6 x 11 IP15 INSERT SCR M3.5-0.6 x 11 IP15
    INSERT SCR M3.5-0.6 x 11 IP15
