      Beyond™ Left-Hand Spiral-Flute, Right-Hand Cut HSS-E-PM Taps • Through Holes
      Beyond™ Left-Hand Spiral-Flute, Right-Hand Cut HSS-E-PM Taps • Through Holes
      Beyond™ Left-Hand Spiral-Flute, Right-Hand Cut HSS-E-PM Taps • Through Holes
      Beyond™ Left-Hand Spiral-Flute, Right-Hand Cut HSS-E-PM Taps • Through Holes
      Select the files you wish to request
      Download CAD Drawings
      Send to Fusion 360

      T660 • Form D Plug Chamfer • Metric ANSI

      Beyond™ Left-Hand Spiral-Flute, Right-Hand Cut HSS-E-PM Taps • Through Holes

      Metric
      Inch
      SAP Material Number 5565610
      ISO Catalog Number T660M080X125RD5-A
      ANSI Catalog Number T660M080X125RD5-A
      Grade KSSM24

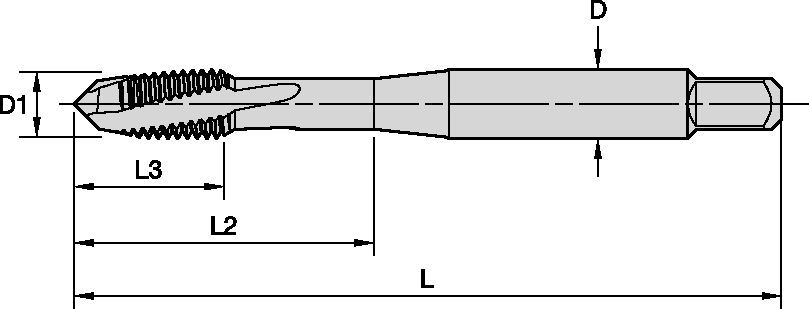

      [D1-TDZ] Thread Diameter Size M8 X 1,25
      [L] Overall Length 68.7000 mm
      [L] Overall Length 2.710 in
      [L3] Thread Length 12.1000 mm
      [L3] Thread Length .4800 in
      [L2] Useable Length 28.5000 mm
      [L2] Useable Length 1.120 in
      [D] Adapter / Shank / Bore Diameter 8.077 mm
      [D] Adapter / Shank / Bore Diameter .318 in
      [Z] Number of Flutes 3
      Tap Pitch Diameter Limit D5
      See all Product Variants

      Uses and application

      • Tapping: Through HoleTapping: Through Hole
      • HSS-E-PMHSS-E-PM
      • Chamfer Form D (3.5–5)Chamfer Form D (3.5–5)
      • Tapping Helix Angle: L15°Tapping Helix Angle: L15°
      • Manufacturer’s Specs: ANSIManufacturer’s Specs: ANSI
      • Manufacturer’s Specs: MManufacturer’s Specs: M
      • Manufacturer’s Specs: MFManufacturer’s Specs: MF
      • Flood Coolant: TappingFlood Coolant: Tapping

      Workpiece Materials

      S High-Temp Alloys

      Features and benefits

      • KSS20 nitride for titanium and titanium alloys.

      • KSSM24 TiN + CrC/C for titanium and titanium alloys.

      Machine Side

      loading...

      Workpiece Side

      loading...

      Grades

      • KSSM24
        KSSM24

        Coated HSS-E-PM, PVD: heat- and wear-resistant high- vanadium, high-cobalt powder metal HSS-E-PM substrate. Coating consists of low friction CrC/C over wear-resistant TiN base layer. Use for tapping titanium and titanium alloys.

        S High-Temp Alloys

      Tolerances

      shank tolerance
      D tolerance h6 + / -
      .250–.375 +0, -.0004
      .438–.625 +0, -.0004
