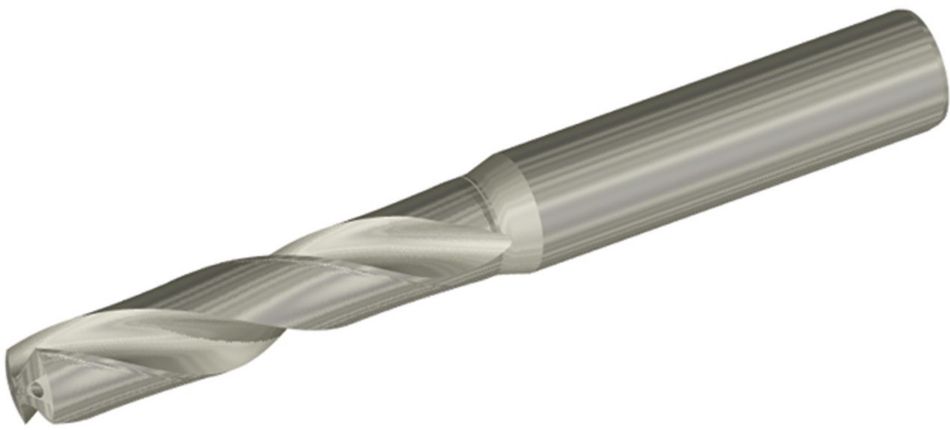

K284 (~3 x D) • K285 (~5 x D) • K715 • A-Shank • HP Drills

HP Drills • High-Temperature-Resistant Alloys • Through Coolant

Metric
Inch
SAP Material Number 1961466
ISO Catalog Number K285A05000
ANSI Catalog Number K285A05000
Grade K715
[D1] Drill Diameter M 12.7 mm
[D1] Drill Diameter M .5 in
[L] Overall Length 118.008 mm
[L] Overall Length 4.646 in
[L3] Flute Length 70.002 mm
[L3] Flute Length 2.756 in
[L4] Maximum Drilling Depth 55.6 mm
[L4] Maximum Drilling Depth 2.189 in
[L5] Drill Point Length 2.337 mm
[L5] Drill Point Length .092 in
[LS] Shank Length 45.491 mm
[LS] Shank Length 1.791 in
[D] Adapter / Shank / Bore Diameter 12.7 mm
[D] Adapter / Shank / Bore Diameter .5 in
See all Product Variants
Create Solution to calculate Feeds & Speeds

Uses and application

  • DrillingDrilling
  • Tool Dimensions: 2flute/2margin/coolantTool Dimensions: 2flute/2margin/coolant
  • Drilling - Through CoolantDrilling - Through Coolant
  • Shank - Cylindrical  Plain ≤h6Shank - Cylindrical Plain ≤h6
  • Helix Angle: 30°Helix Angle: 30°

Features and benefits

  • HP Drills with Through Coolant for High-Temperature Alloys.

  • Material-specific SC Drill for machining high-temperature-resistant alloys such as titanium alloys and nickel-based alloys in aerospace applications.

  • Straight Cutting Edge for optimized chip formation with less stress and heat generation.

  • Rigid wedge at the cutting corner to withstand high thermal and mechanical stress.

  • K715™ Grade is a specified, uncoated 9% cobalt fine-grain carbide that helps to prevent built-up edge.
